All-in-One Metal Detector Machine And Checkweigher Systme For Food Industry

Description

All-in-One Metal Detector Machine And Checkweigher Systme For Food Industry

The all-in-one metal detector machine and checkweigher is a dual-function device that combines accurate weight verification with advanced metal detection capabilities in one compact system. This intelligent food checkweigher with metal detector combo system detects ferrous, non-ferrous and stainless steel contaminants while weighing to ensure product compliance, saving valuable floor space and reducing operational complexity. You are welcome to contact us at any time for quotation.

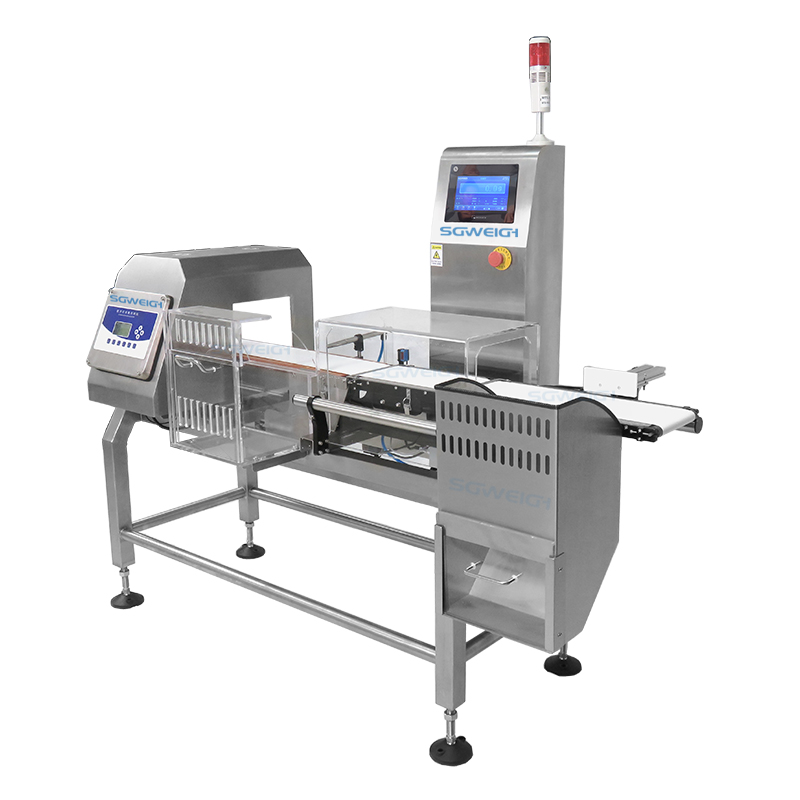

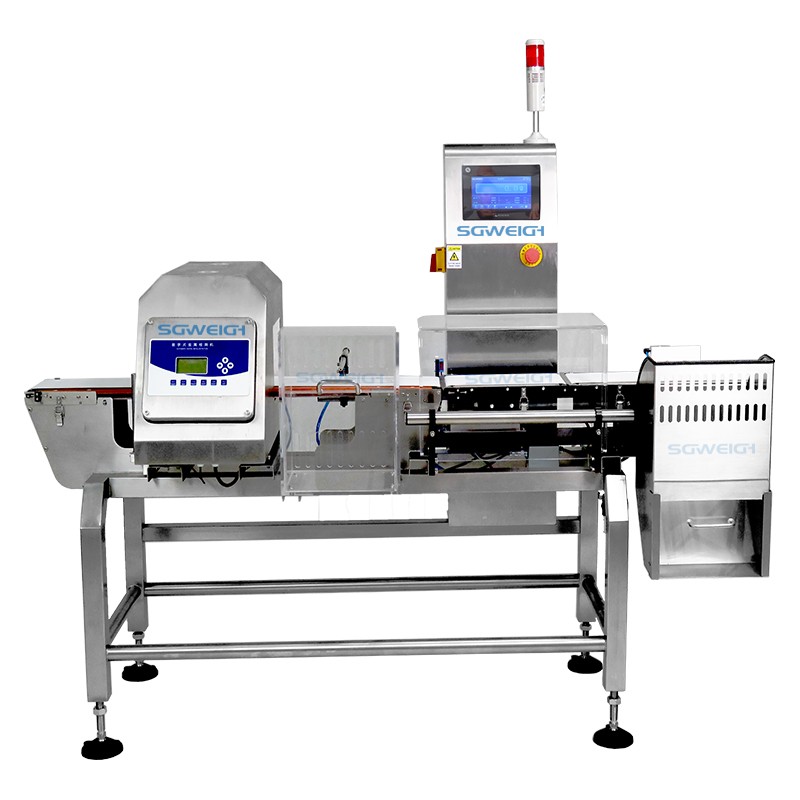

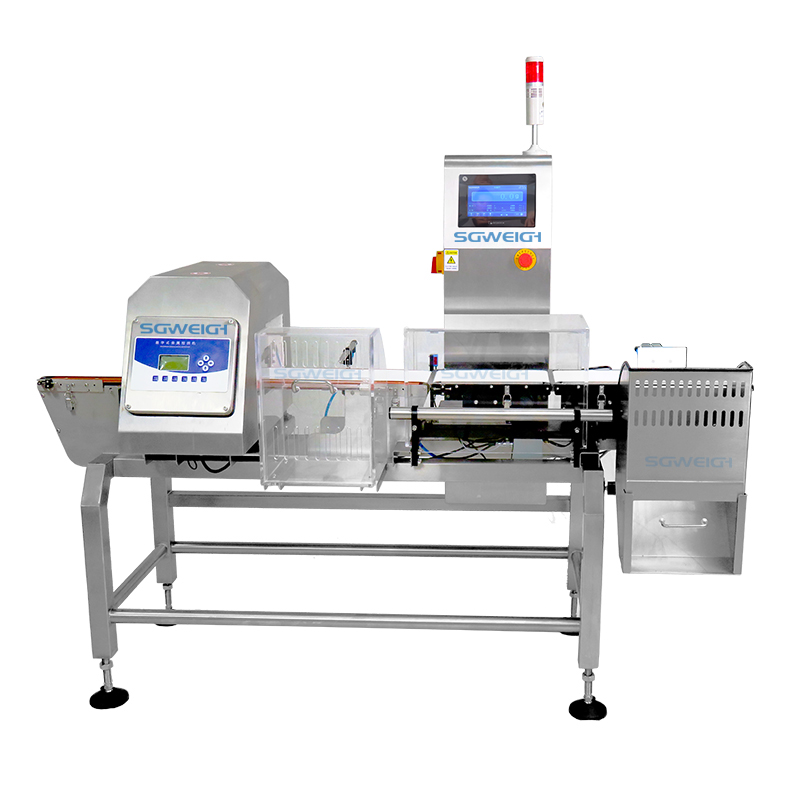

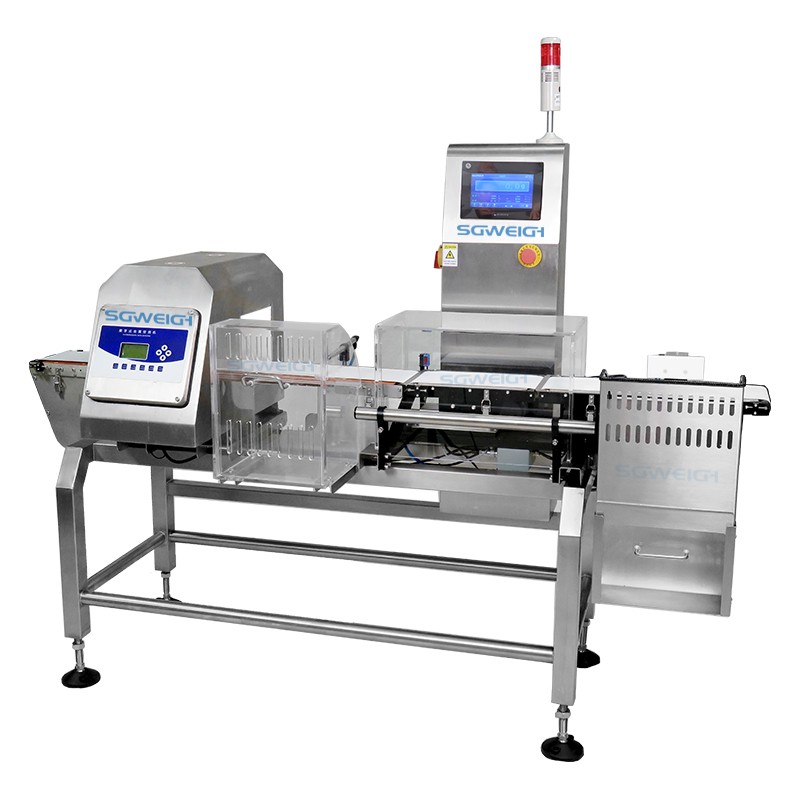

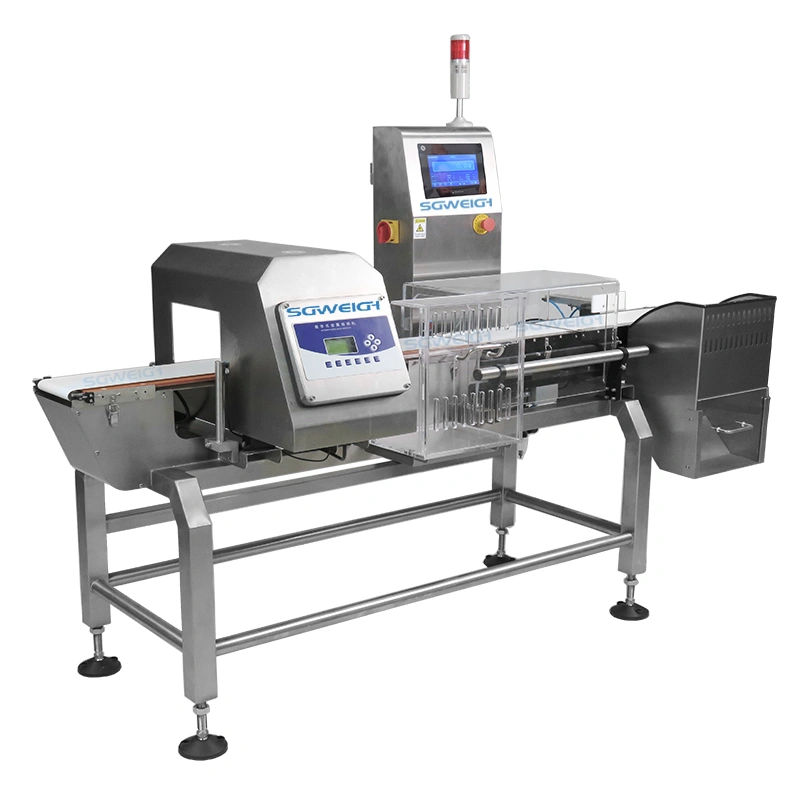

All-in-one metal detector machine and checkweigher pictures

All-in-One Metal Detector Machine And Checkweigher

Metal Detector Machine And Checkweigher Systme For Food Industry

All-in-One Metal Detector Machine And Checkweigher For Food

All-in-One Metal Detector Machine And Checkweigher Systme For Food Industry

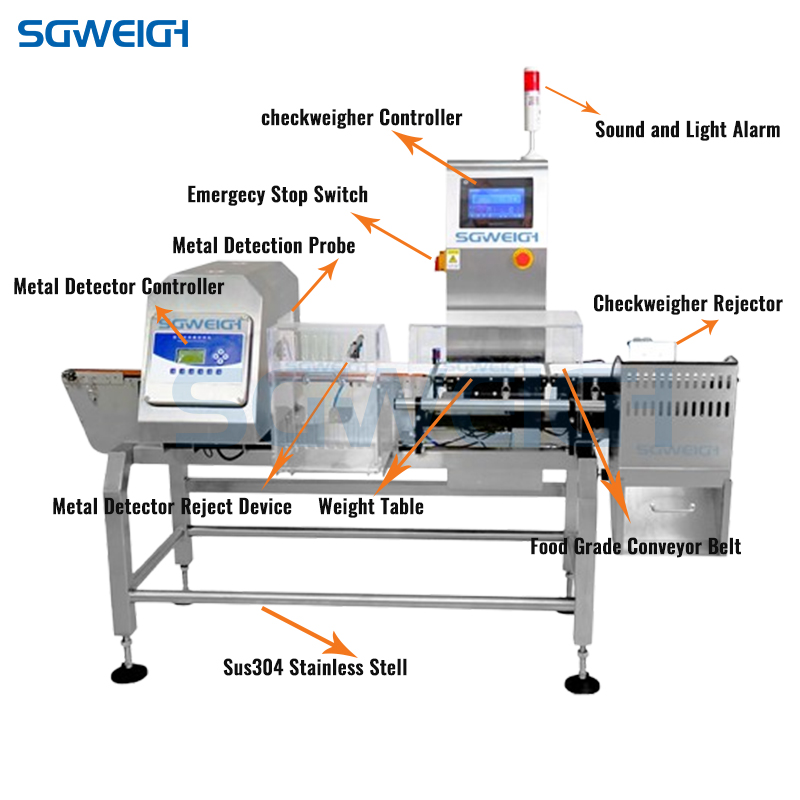

checkweigher metal detector combo details.jpg

1. Lightweight sructure, less floor space, easy connection with production line, high detection sensitivity and easy operation; it can save production line space to realize more quality control.

2.Advanced technology, applying the latest muti-frequency detection technology, automatic elimination of material effects, automatic balance technology and self-adaptive adjustment technology brings the industry's simplest operation, best environmental adaptability and stability to the equipment.

3.All stainless steel shock absorber structure design and production to ensure long-term stability and service life

4.Can memory 100 different products of the detection parameters, to avoid the detection error caused by artificial differences, and the downtime of the replacement product .

5.Low-power design, flseal design food checkweigher with metal detector combo system structure ensure the protetive efect of the electronic control partis best, and the protection level reach IP65,can last more than 15 years High-precision digital load cell adopts high-speed digital filter processing and automatic zero tracking.

Food checkweigher with metal detector combo system is mainly used for accurate weighing and metal detection of raw materials, semi-finished products and finished products in food, pharmaceuticals, chemicals and other industries.

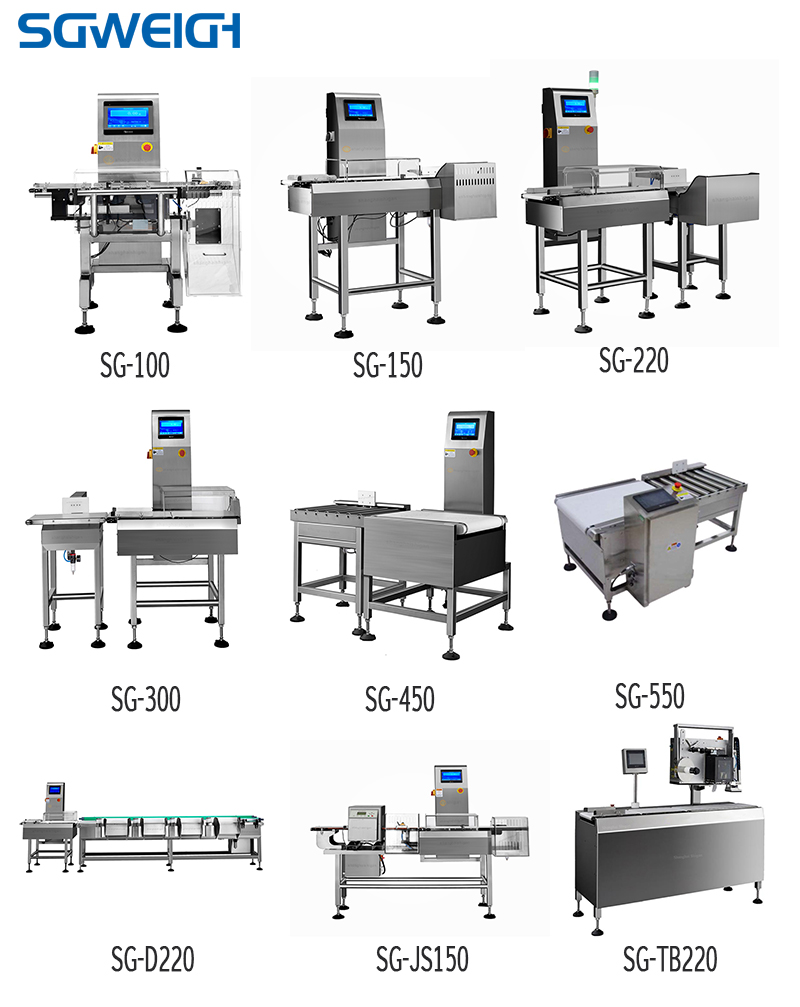

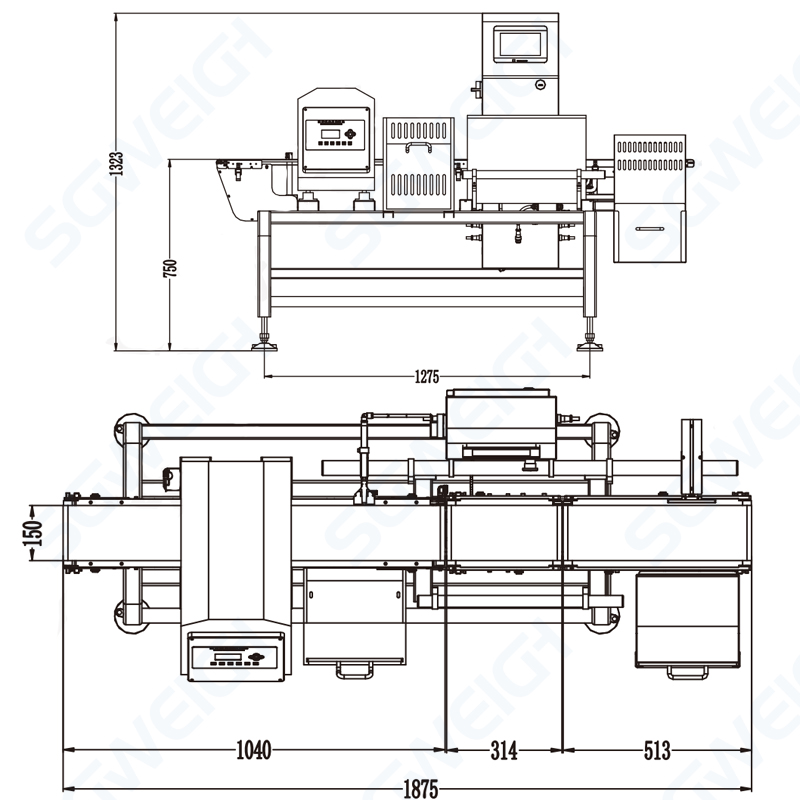

Model SG-JS150

Specifications 4010

Detection of hole width detection 150mm

Inspection hole height 100-200mm

Detection sensitivity

In empty state:(H)100mm ;Fe≥Φ0.8mm,SUS≥Φ1.2mm

(H)120mm ;Fe≥Φ1.0mm,SUS≥Φ1.8mm

(H)150mm ;Fe≥Φ1.2mm,SUS≥Φ2.0mm

(H)200mm ;Fe≥Φ1.5mm,SUS≥Φ2.5mm

Effective hole width detection 150mm

Effective hole detection level 100-200m

Weighing accuracy ±0.1g(Depend on product)

Conveyor height 750mm(±50mm)

Transmission capacity 10kg/times

Transfer direction From left to right

Conveyor belt max speed 25m/min


This all-in-one metal detector machine and checkweigher is exclusively customized according to customer requirements and may not meet your requirements. Our company's checkweigher and metal detector combo are factory-supplied and provide non-standard customized equipment. We provide a variety of all-in-one metal detector machine and checkweigher solutions for free. Please feel free to contact us.

Packing Detail:

Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.

We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.

Delivery Detail :

Shipped in 25 days after payment

All-in-One Metal Detector Machine And Checkweigher Systme For Food Industry


1. Training services:

We will train your engineer to install our weigher.You can send your engineer to our factory or we dispatch our engineer to your company.We will introduce your engineer how to install the weigher and how to fix problem.

2. Trouble shooting service:

Some times if you can not fix the problem in you contry,we will seed our engineer there if you need us to support.Of course,you need to afford the round trip flight ticket and accommodation fee.

3. Spare parts relpacement:

For spare parts support: For machine in guarantee period,if spare part broken,we will send you the parts free and we will pay the express fee,And please send us the spare part back,when machine is out of guarantee period,we will provide you the spare parts in cost price.
