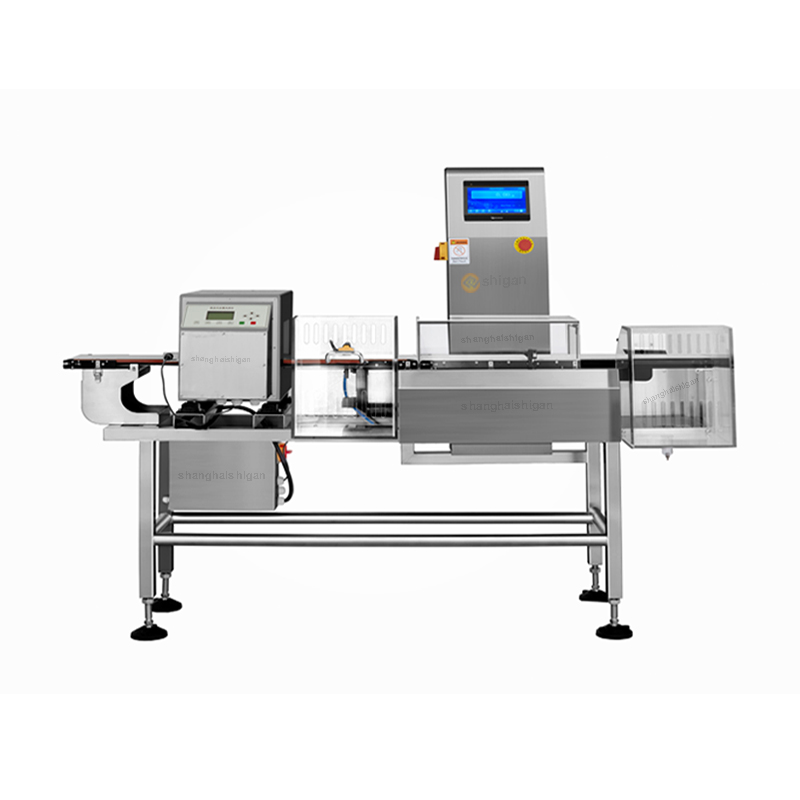

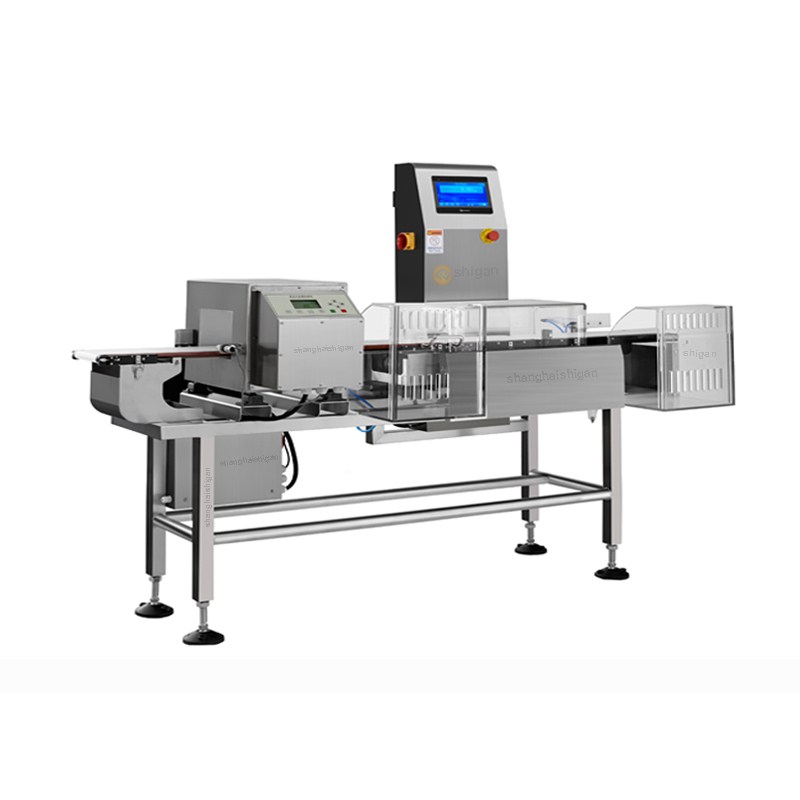

Automatic Combination Machine Check Weight Metal Detector For Production Lines Made in China Cheap Price
The automatic combination machine check weight metal detector provides excellent and reliable product testing equipment in the design of integration and space saving, making this series of checkweigher and metal detector for production lines the most technically featured all-in-one machine in the market. The compact and reliable system saves the production line space and reduces the independent transmission belt of the metal inspection machine. The weight detector can quickly and accurately measure the product weight, and eliminate the "over standard" products. At the same time, the metal detector will continue to detect and eliminate the products with pollutants.Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.
Type SG-JS220
Specifications 4010
Main material SUS304
Inspection Width 220mm
Weighing Range 5-1500g
Weighing accuracy ±0.2g(depends on product)
Detection Width 220mm
Inspection height 100-200mm
Max Speed 25m/min
Capacity 10kg/times
Protection Grade Ip65
Display LED
Power AC220V
Alarm way Alarm,Belt stop
Size H:2267 W:589 H:1500 mm(depend on final design)
1. Reverse detection: using high-precision imported opposed firing switch and curve fitting algorithm, the reverse detection can be completed accurately
2. Customization capability: it can be equipped with a scanning gun to meet the deep customization and function development of various special requirements
3. Simple and intelligent operation: wide LCD and wizard interface are adopted, so users can easily set and operate
4. Reliable data: FRAM storage technology is adopted to ensure system parameters and data
5. Advanced manufacturing process: metal detector adopts stainless steel probe and frame, and various protection levels are available for customers to choose to adapt to various production environments
6. Belt deviation prevention design: the metal detector adopts a special belt deviation prevention design scheme to effectively avoid belt deviation
7. Rich peripheral interfaces: RS-485 data communication, PLC programming node and printer output can be configured, which can provide real-time data for the production management system for remote control, analysis and monitoring, and provide valuable traceability information

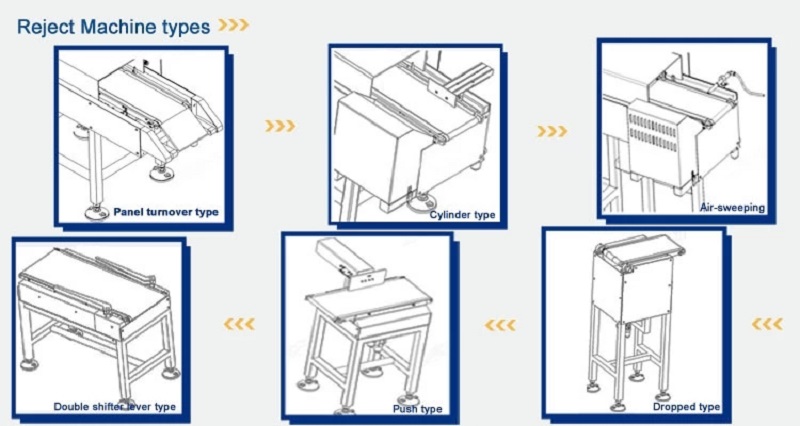

8. Rejection device: equipped with arm stop type, air blowing type, flap type, push rod type and other elimination devices
Customization Philosophy:
The product demonstrating may not perfectly meet your requirements,
our philosophy is to customize your real need.
To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
1,Products to be packed
2,Container to be filled, type and specification.
3,Capacity requirement
4,Automation requirement
5,Protection requirement
6,Other specific requirement
The combination system of automatic checkweigher and metal detection is a very compact online weighing and metal detection equipment. The combination of two detection technologies and a touch screen user interface is an industry that requires both weight detection and metal detection of products. Companies with limited production and installation space are preferred
Automatic checkweigher and metal detector combo is mainly applicable to the detection of stainless steel, copper, aluminum, iron and other metal foreign matters and online weight detection in food, medicine, electronics, chemical industry, rubber and plastic, toys, woollen and other industries
1. Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2. After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Our manufacturer has ISO9001, CE international certification,
1. More than 11 years of production experience
2. More than 10 years of foreign trade experience
3. More than 10 national technology patents
4. Cumulative overseas sales exceed 1,000 sets
5. Comply with EN60204 international standard
1. Pre sales consultation
We will help you customize appropriate weighing and packaging solutions according to your requirements and specific conditions.
2. Maintenance service
Long term maintenance service shall be provided, and any repair parts shall be provided free of charge during the warranty period, and the cost shall be charged only after the expiration of the warranty period.
3. Staff training
We will provide our customers with free technical training to fully master the correct product maintenance technology.
4. Customer service
Design customized production lines for customers according to specific weighing and packaging products, output, packaging methods, factory area and other factors.
