Automatic Metal Detector and Checkweigher Combination System China Manufacturer

Description

Automatic Metal Detector and Checkweigher Combination System China Manufacturer

By integrating two critical functions into one compact machine, a metal detector checkweigher combination system minimizes footprint, reduces operating costs, and ensures that every product leaving the factory is absolutely reliable. This high-performance automatic metal detector and checkweigher combination is designed to easily handle high-volume production lines. The checkweigher provides accurate weight verification, while the sensitive metal detector identifies and removes contaminants without interrupting the process. You are welcome to contact us at any time for quotation.

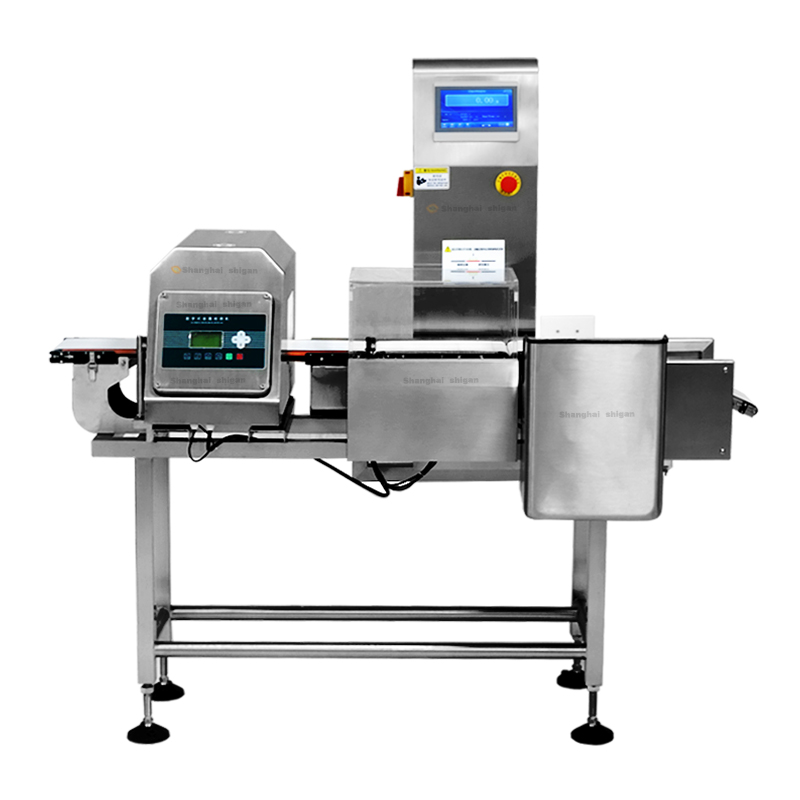

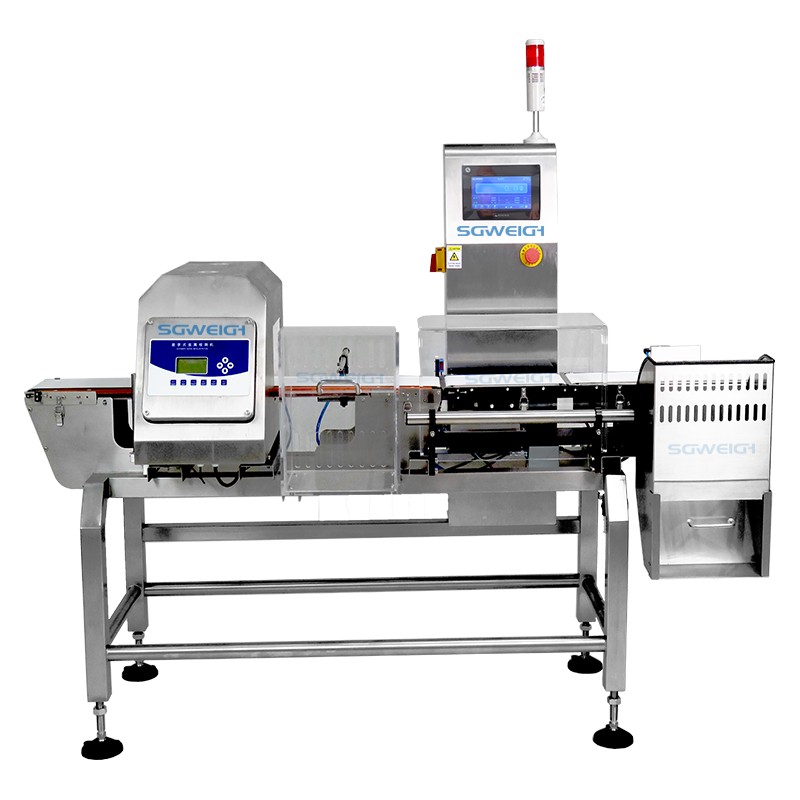

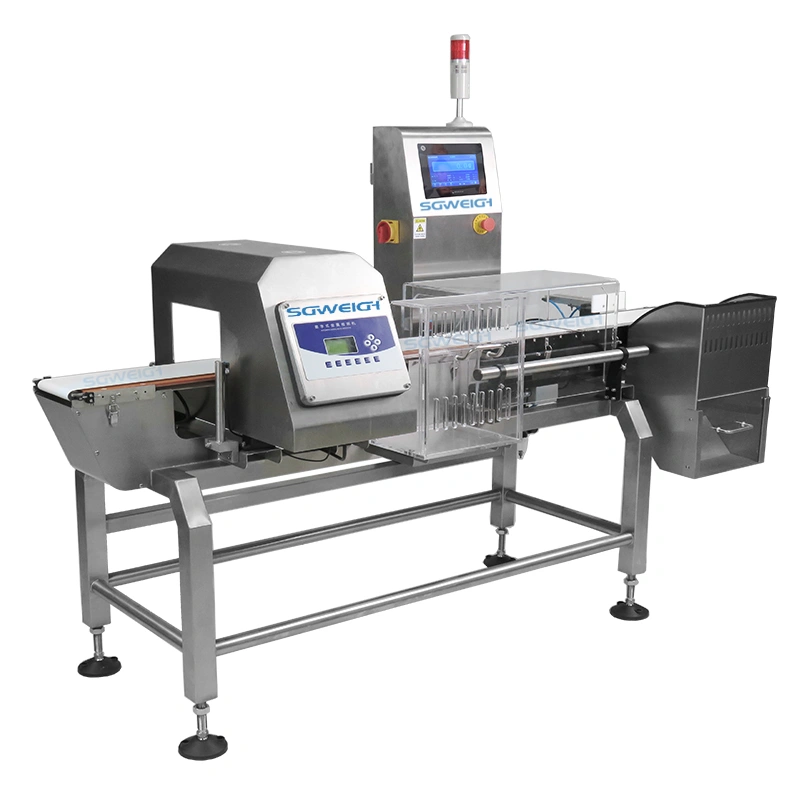

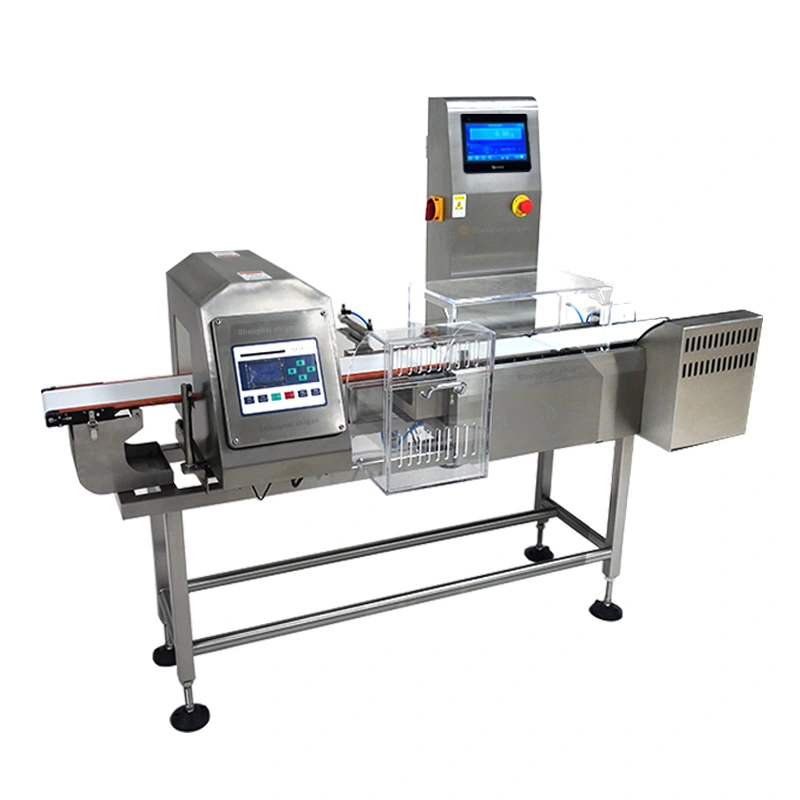

Metal detector checkweigher combination system photos

Automatic Metal Detector and Checkweigher Combination System

Automatic Metal Detector and Checkweigher Combination Manufacturer

Automatic Metal Detector and Checkweigher Combination System

1. Simultaneously detects weight and metal contaminants, with high sensitivity for ferrous, non-ferrous, and stainless steel inspections.

2. Compact design and seamless integration, designed for high-speed, continuous production environments.

3. User-friendly touchscreen interface for easy operation.

4. Automatically rejects substandard or contaminated products.

5. High-speed operation without compromising accuracy.

6. Durable, hygienic stainless steel construction and easy-to-clean design, ideal for food-grade environments and fully compliant with international food safety standards.

7. Advanced data logging and tracking capabilities provide comprehensive audit support.

8. Real-time alerts enable immediate corrective action.

9. Reduces the risk of fines, recalls, and customer dissatisfaction.

10. Minimal operator training required.

Model SG-JS150

Specifications 4010

Detection of hole width detection 150mm

Inspection hole height 100-200mm

Detection sensitivity

In empty state:(H)100mm ;Fe≥Φ0.8mm,SUS≥Φ1.2mm

(H)120mm ;Fe≥Φ1.0mm,SUS≥Φ1.8mm

(H)150mm ;Fe≥Φ1.2mm,SUS≥Φ2.0mm

(H)200mm ;Fe≥Φ1.5mm,SUS≥Φ2.5mm

Effective hole width detection 150mm

Effective hole detection level 100-200m

Weighing accuracy ±0.1g(Depend on product)

Conveyor height 750mm(±50mm)

Transmission capacity 10kg/times

Transfer direction From left to right

Conveyor belt max speed 25m/min

Material for conveyor belt Food grade PU belt

Protection grade IP65

Display and operation mode LCD flat key input

Deadweight of machine About 240kg

Power supply requirements AC 220V 50HZ

Power About 300w

Overall dimensions About L2267*W589*H1500mm(Design drawing prevail)


Automatic Metal Detector and Checkweigher Combination System China Manufacturer

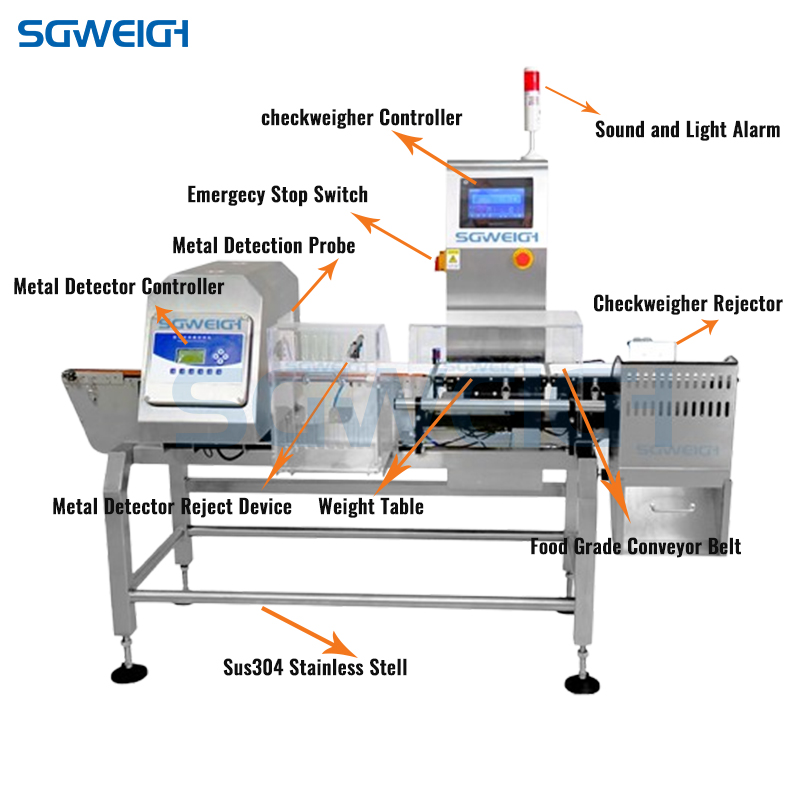

checkweigher metal detector combo details.jpg

The metal detector checkweigher combination systems on display may not meet your requirements. We can customize them to meet your specific needs, perfectly solving your production line checkweighing and metal detecting needs.

Metal detector checkweigher combination systems are used for post-packaging weight and metal detection in the food, pharmaceutical, chemical, textile, and toy industries.


Automatic Metal Detector and Checkweigher Combination System China Manufacturer

Export-free fumigation-free plywood crates with quick-connect design for easy opening and reuse.

Inner plastic film wrapping protects goods from salt, wind, and damage.

1. Equipment Installation and Commissioning: We provide a detailed operating manual and free operator training to ensure you are proficient in using the equipment.

2. Technical Support: We offer 24/7 technical support to assist you with any issues you may encounter during use.

3. Accessories Supply: We provide genuine accessories to ensure their quality and stability.

4. Quality Assurance: We are responsible for the products we sell and guarantee that the quality and performance of our equipment meet industry standards. 5. Warranty policy: one-year warranty and lifetime maintenance to solve the worries for customers.
