Box Carton Industrial Checkweigher Intelligent Sorting Weighing Solution
Checkweigher also called check weigher, check weight machine, check weighing machine, weight checker, weight sorting machine, weight checking machine, and etc,.
Auto box carton industrial checkweighers can perform high-precision weight checks on the production line to ensure that each carton meets precise specifications. Its dynamic weighing technology can detect even the slightest weight variation, so that underweight or overweight products can be immediately rejected. Intelligent sorting carton checkweighers have extremely low maintenance requirements, easy-to-clean components, energy-saving operation, real-time data collection, PLC integration and user-friendly touch screen control. You are welcome to contact us at any time for quotation.

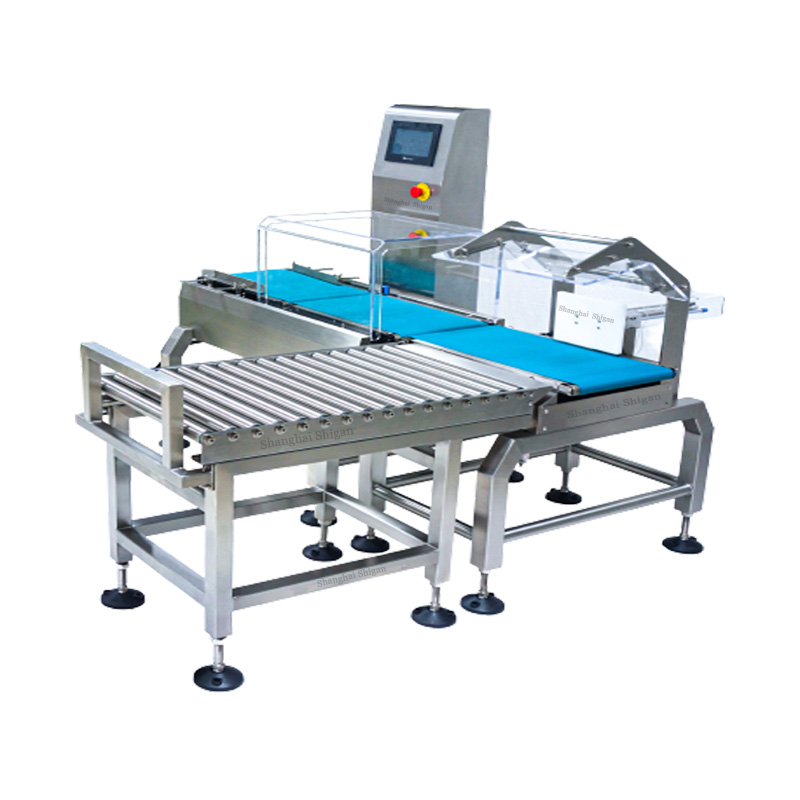

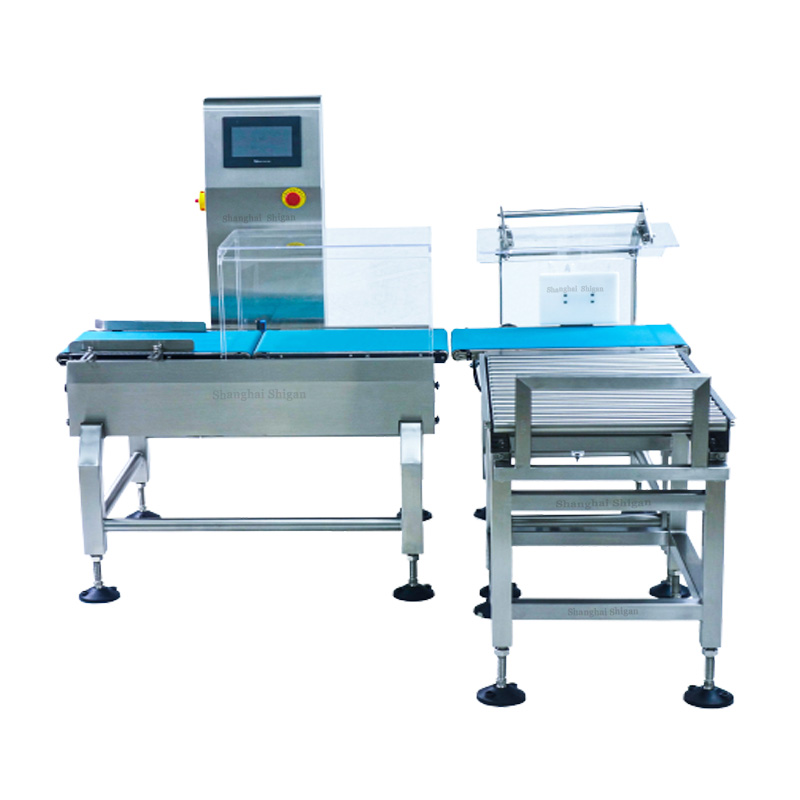

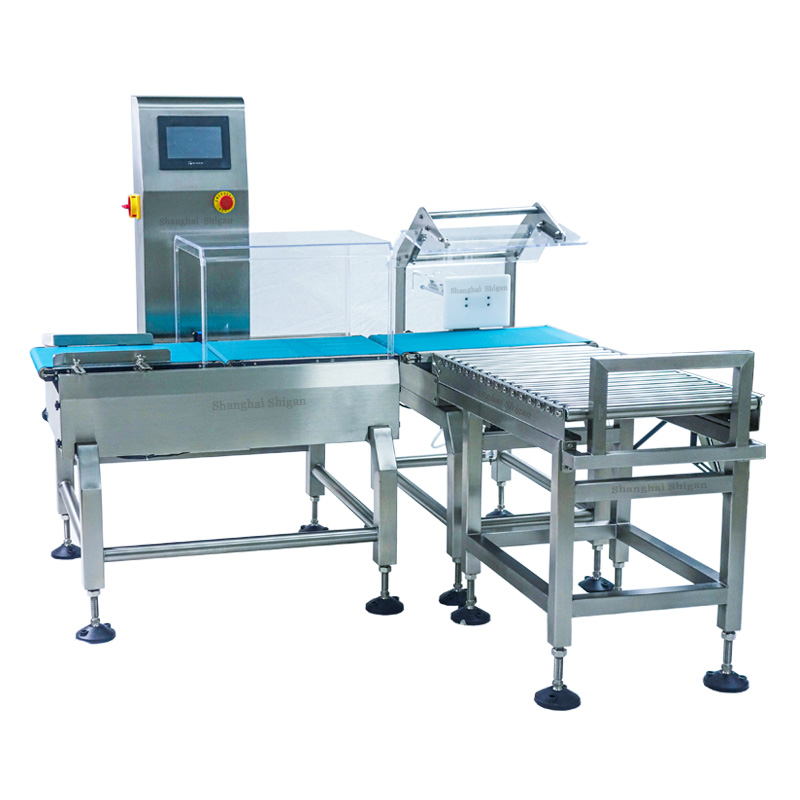

Auto box carton industrial checkweigher pictures
Auto box carton industrial checkweigher is an automatic checkweighing equipment widely used in production lines of pharmaceutical, food, chemical and other industries. It can detect overweight and underweight unqualified products in the production line in real time and automatically remove unqualified products.
Type SG-450
Weighing Range 0.05-50kg
Limited of product L: 550 W:450 H: 3-400mm
Accuracy ±5/10g
Division Scale 1g
Belt Speed 0- 60 m/min
Max Speed 40 pcs/min
Belt Width 450mm
Machine Weight 40kg+70kg+45kg
Power Supply AC 110/220V ±10% 50HZ
Power 400W
Main Material SU304 stainless steel

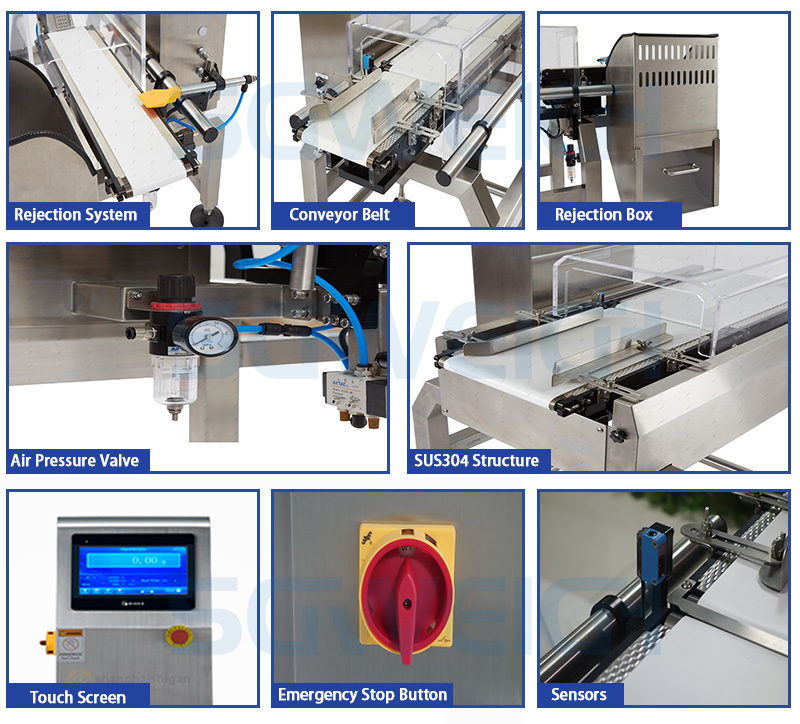

1. Reinforced stainless steel frame, fully waterproof design.
2. High-precision digital weighing sensor adopts high-speed digital filtering processing and has automatic zero-point tracking function.
3. Sorting area and quantity can be customized according to customer needs.
4. Automatic learning function of product characteristics.
5. 50 groups of product presets, comprehensive product editing and storage.
6. Built-in report statistics, keep track of production status at any time.
7. Intelligent design, automatic parameter adjustment, easy operation.
8. The conveying structure adopts a detachable design, which is convenient for disassembly and cleaning.
How to select suitable auto box carton industrial checkweigher?
1. Determine the series according to the size, weight range and purpose of the product you need to weigh.

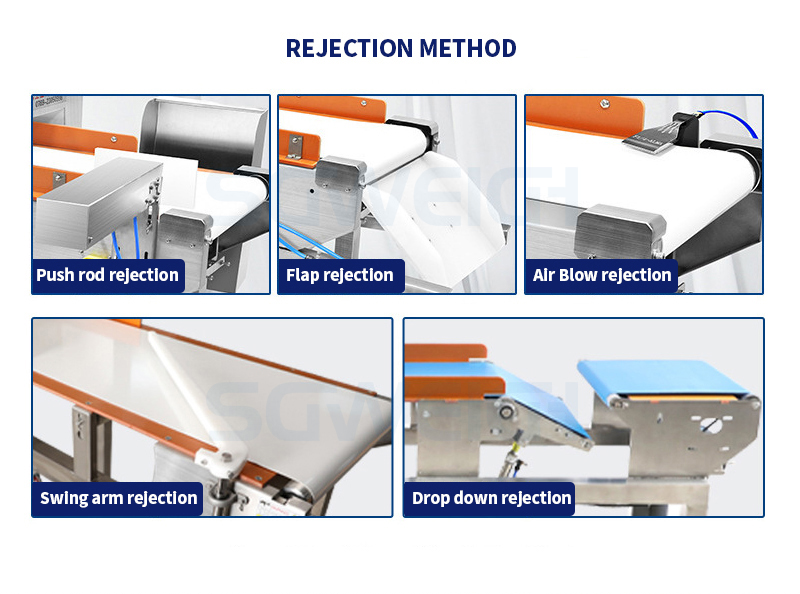

2. Determine the appropriate rejection system according to your product
3. Determine the height and width (if any) of your existing assembly line and the space required by our company.
4. Determine the optional functions you need; such as USB storage data, real-time transmission of weight data, alarm, etc.
In order to provide more accurate parameters, solutions and quotations, it is recommended that you contact us to help you complete the selection.
Box Carton Industrial Checkweigher Intelligent Sorting Weighing Solution
Box Carton Industrial Checkweigher Intelligent Sorting Weighing Solution
Packaging:
1: Lubricate the drive unit
2: Divide the machine into modules
3: Wrap the modules with plastic film
4: Pack the modules into cartons
5: Make marks
If there are any special requirements, we will pack according to your requirements.
1. Consultation and Evaluation: Understand the customer's requirements, production processes and quality control goals, and determine the machine solution that best suits their specific needs.
2. Product Demonstration: Visually see the operation of the equipment and directly evaluate its performance.
3. Installation and Commissioning: After purchase, the machine is installed and commissioned by trained technicians to ensure it operates correctly and integrates seamlessly into the customer's production line.
4. Technical Support: Provide ongoing technical support to resolve any questions, problems or maintenance needs that arise during the operation of the machine.
5. Warranty Coverage: 1 year warranty, lifetime repair.
We aim to provide customers with the right solutions, support and peace of mind throughout the life cycle of the equipment, ensuring that the machine meets the customer's needs and provides long-term value.
