Capsule Tablets Production Metal Detector Pharma-grade Metal Detection System
This precise and sensitive capsule tablets production metal detector can immediately reject contaminated units to ensure the safety of every batch of products, providing real-time monitoring and automatic rejection mechanisms to simplify your quality control process. The compact footprint and modular design allow the pharma-grade metal detection system to be flexibly installed in small production spaces, while its intuitive touchscreen ensures easy configuration and status monitoring. You are welcome to contact us at any time for quotation.

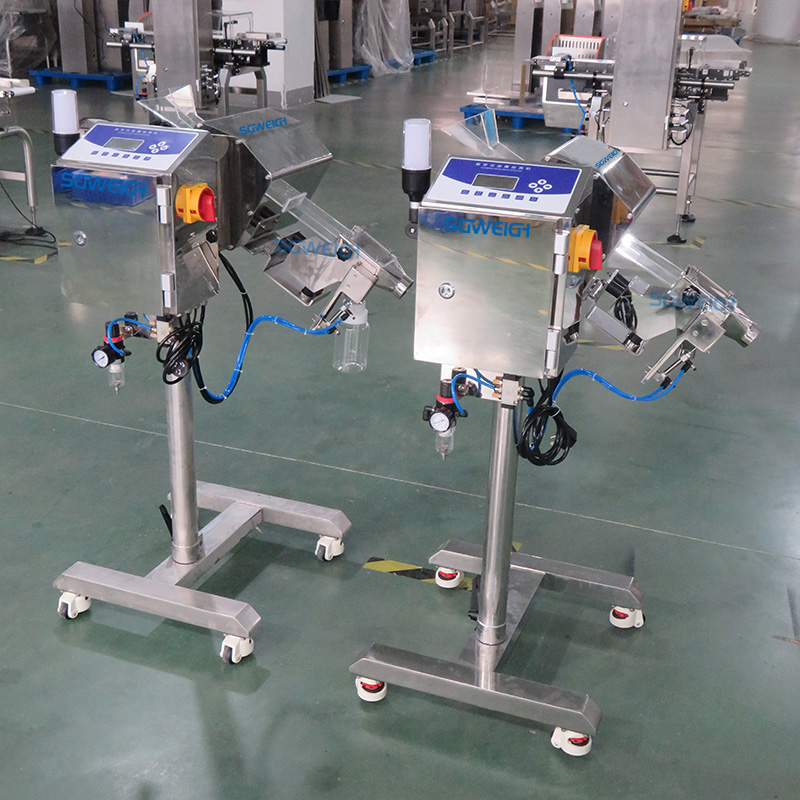

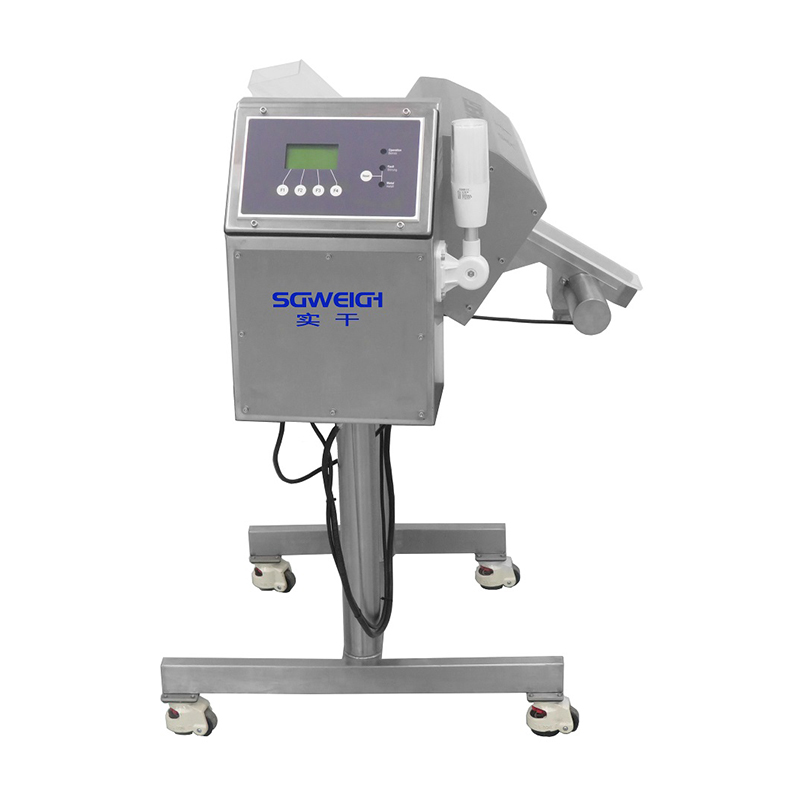

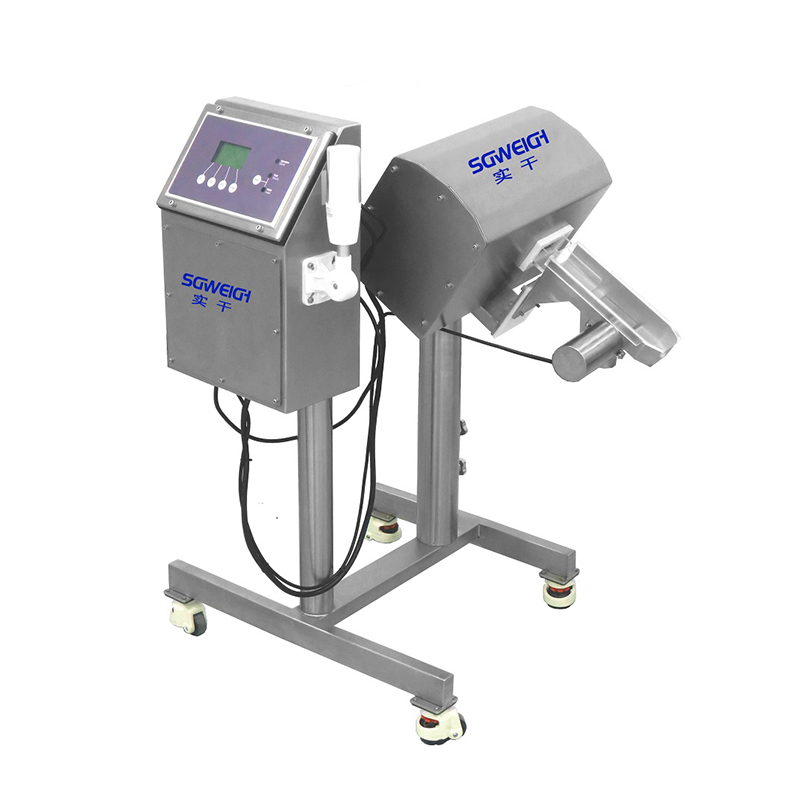

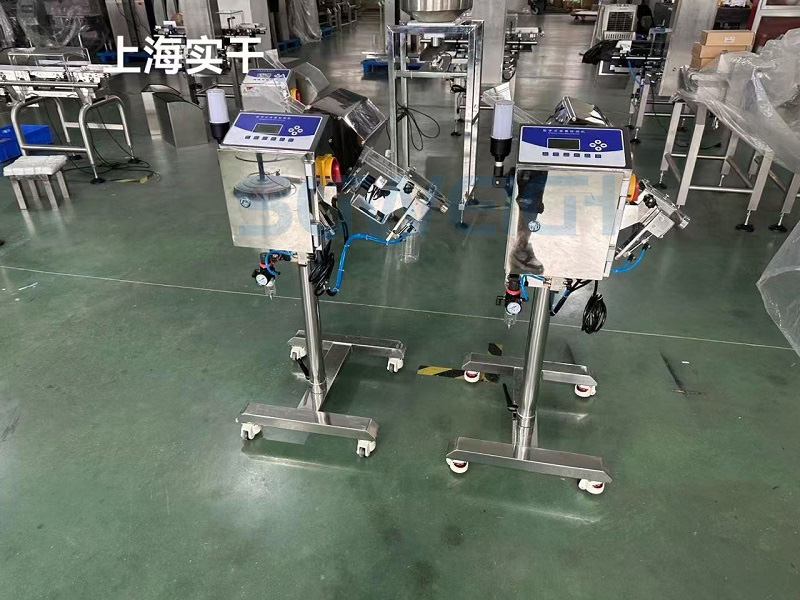

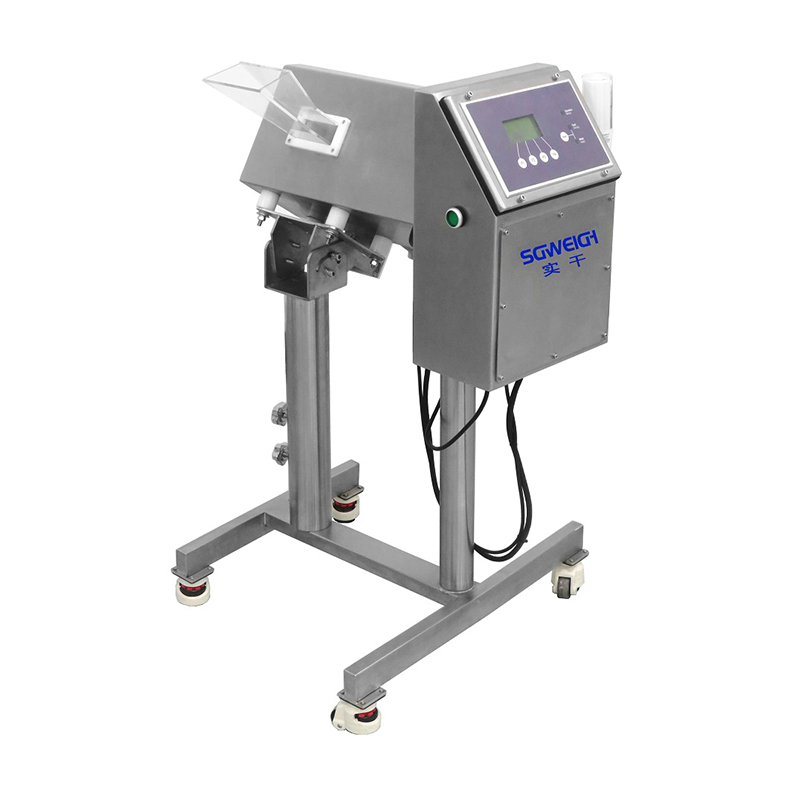

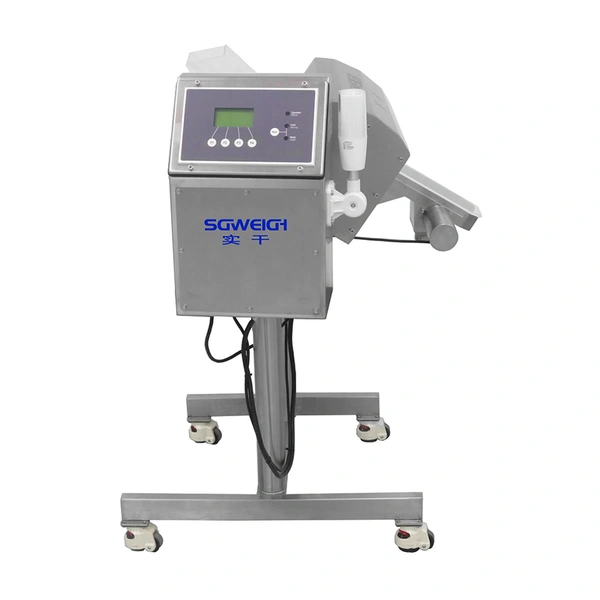

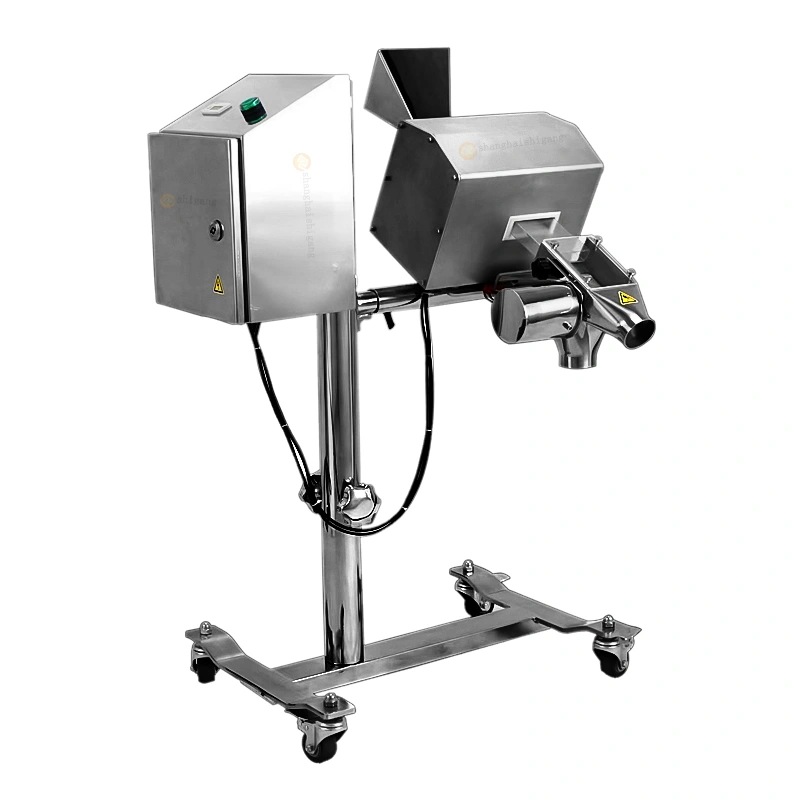

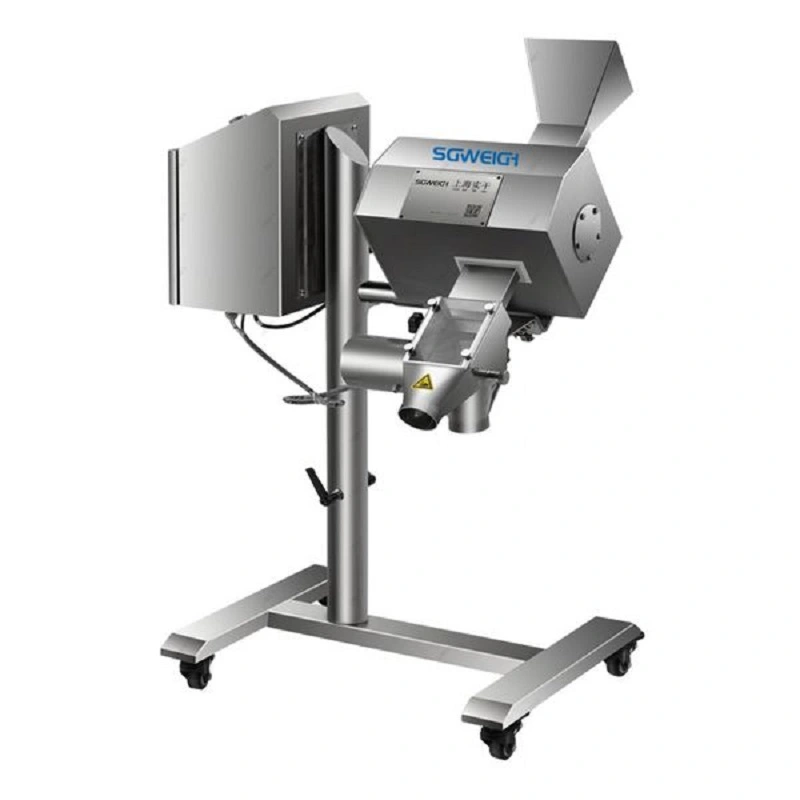

Capsule tablets production metal detector pictures
1. Adjustable sensitivity
2. The most advanced microcomputer control system with self-learning function.
3. The height and tilt angle of the manual lift table can be easily moved and cleaned, and lockable casters are installed
4. The main control components are all imported. The control menu adopts a one-button operation mode, which is easy to operate and has Chinese/English operation menus. The metal detector can memorize and supplement its functions. It has 200 product storage and 1000 accidental memories.
5. Open design, parts in contact with the product can be removed without tools within 10 seconds. No dead angle, easy to clean and wash.
6. The capsule tablets production metal detector has a full body safety structure with no dead angle. The power supply is a safe 24V voltage.
7. Completely independent sensor system. Tool-free disassembly, easy to maintain and clean.
8. Independent control system, connected to the sensor system through a modular air plug.
9. Independent rejection unit through quick connection. No air source required.
10. Protection level: IP65.
Ideal Applications:
1. Pharmaceutical capsule and tablet production
2. Nutritional supplement production
3. High-speed, high-volume production lines
Feed port height and size: Height: 770-930mm Feed port size: 76mm
Height and size of outlet: Height: 770-860mm Size of outlet: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm
Machine weight: 75kg

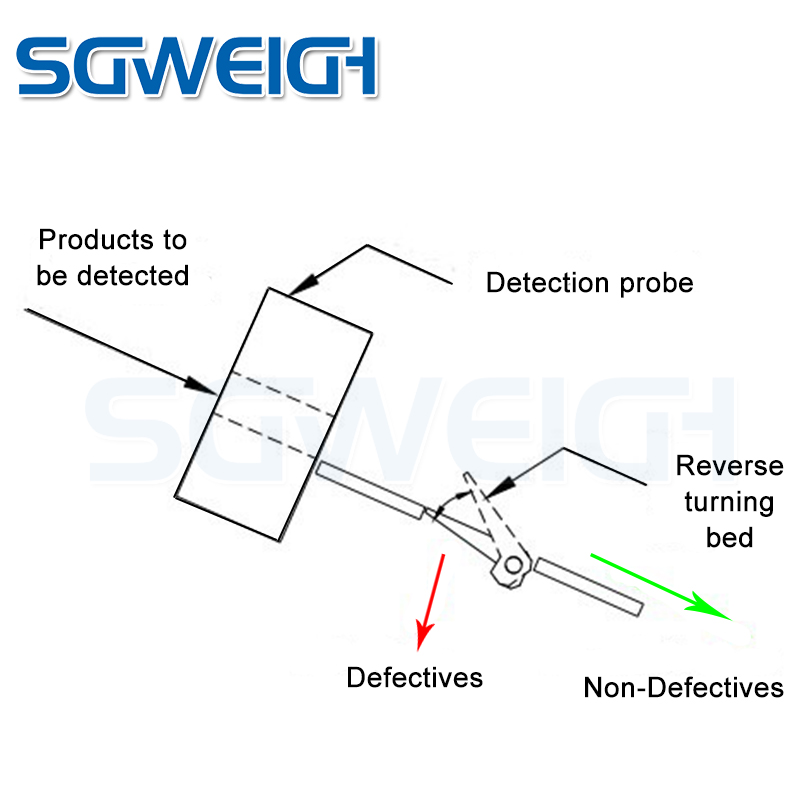

Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
Equipment dimensions: 1115*550 (1280-1400) mm
Capsule Tablets Production Metal Detector Pharma-grade Metal Detection System
Capsule tablets production metal detector as the key detection equipment on the production line, involves different fields. If the product specifications do not meet the requirements, please contact us by inquiry or chat with me to meet the customized needs, we can also introduce the factory and machines to you in the form of live broadcast. Our team will tailor it for you.
Capsule Tablets Production Metal Detector Pharma-grade Metal Detection System
Packing Detail:
Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
Delivery Detail :
Shipped in 25 days after payment
1. Equipment installation and commissioning: The company provides a detailed operation manual and free operation training so that customers can master the use of the equipment.
2. Technical support: The company provides 7x24 hours of technical support. Customers can contact engineers at any time to solve any problems encountered during use.
3. Accessories supply: The company provides original accessories to ensure the quality and stability of accessories.
4. Quality assurance: The company is responsible for the products sold and ensures that the quality and performance of the equipment meet industry standards.
5. One-year warranty, lifetime maintenance
