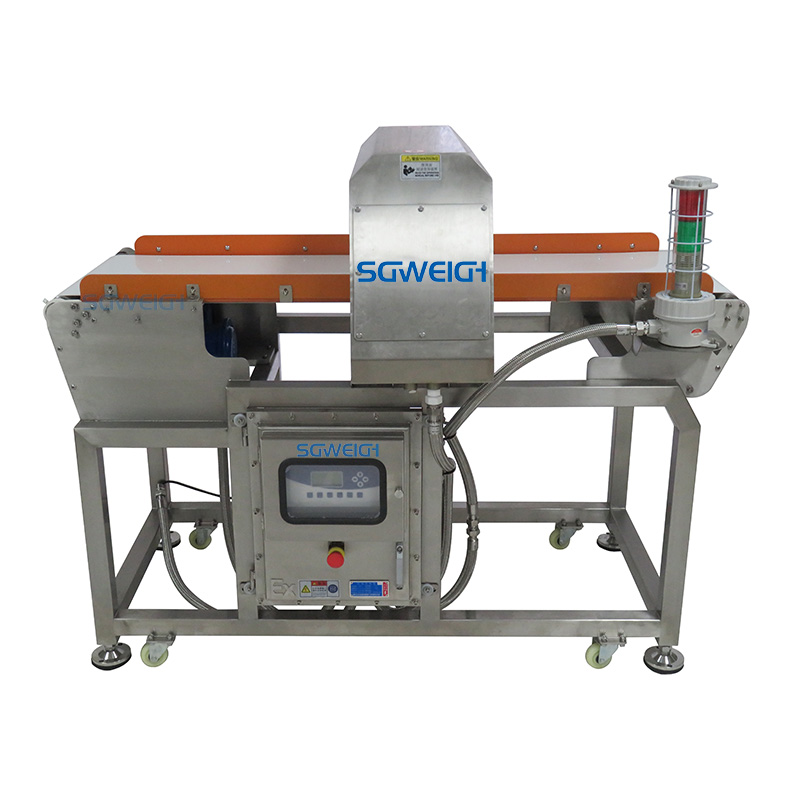

Coffee Sugar Sachets Metal Detector Automatic Food Packaging Metal Detector
Metal detector machine also called metal detector, metal separator, metal detection machine, and etc,.
The automatic food packaging metal detector uses SGWEIGH's unique metal foreign body detection method. Multiple detection algorithms run simultaneously, with high detection accuracy, good reliability, and strong anti-interference ability. The coffee sugar sachets metal detector detects all types of metal pollutants, including iron, non-iron, and extremely difficult to detect non-magnetic stainless steel. The whole machine is made of stainless steel (SUS304), with thick materials, solid structure, rust-proof, corrosion-resistant, and easy to clean. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

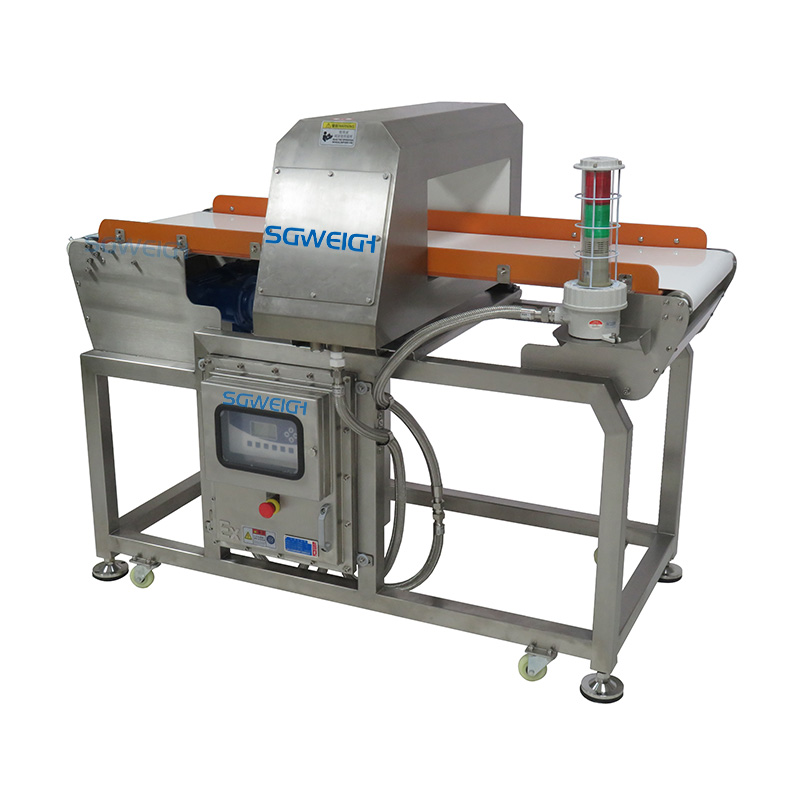

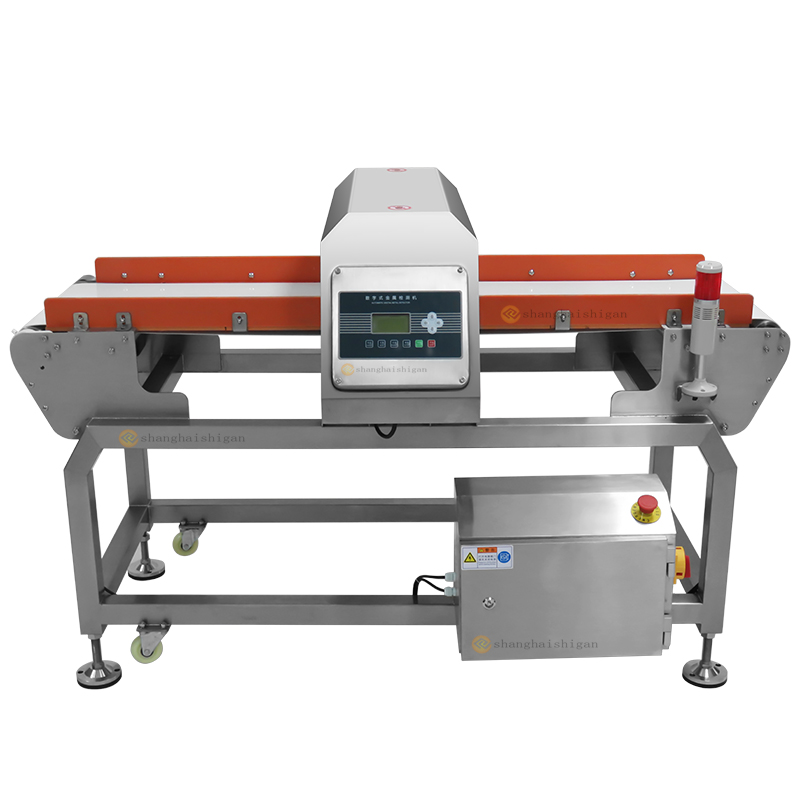

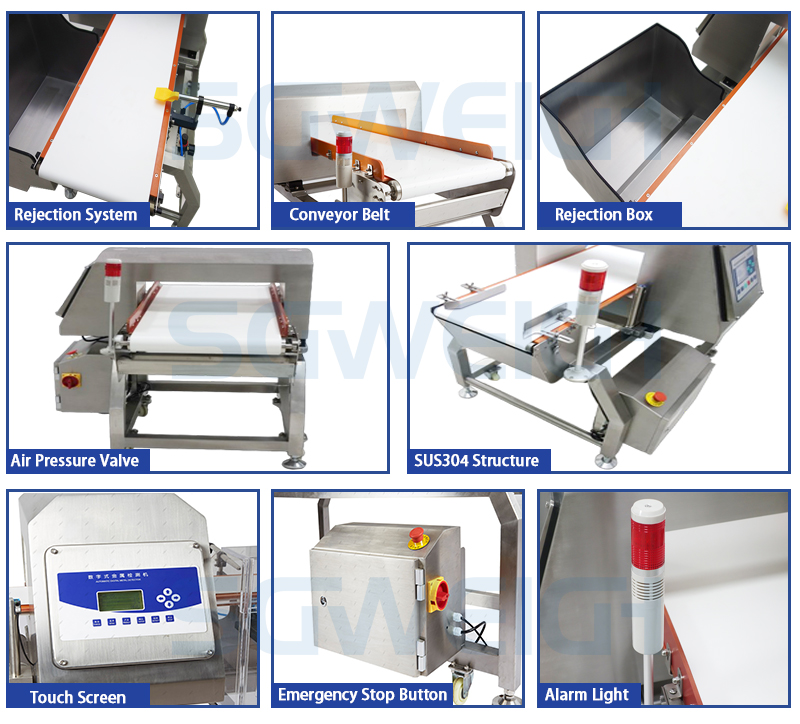

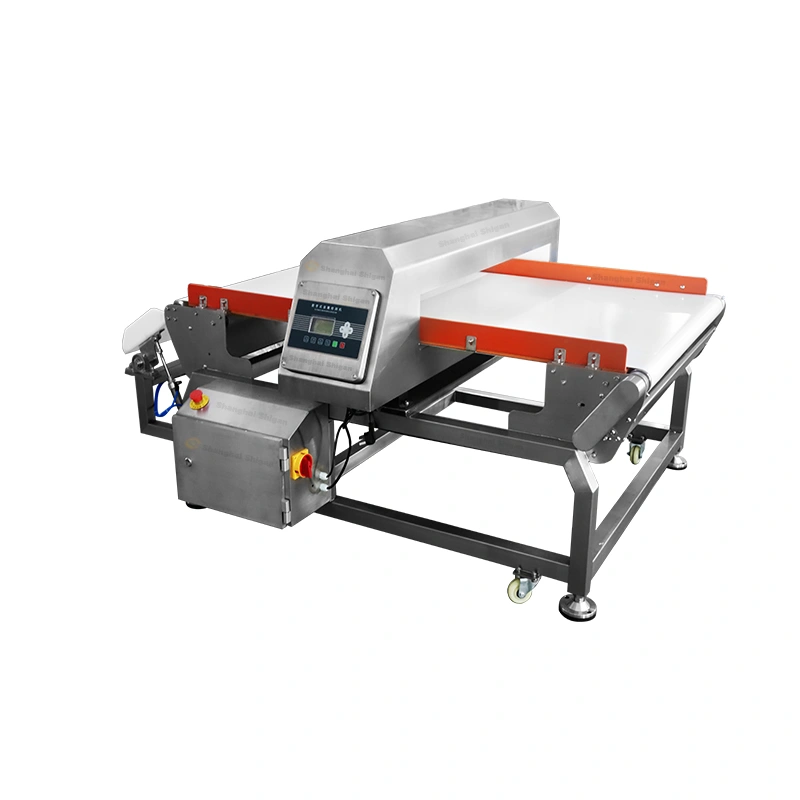

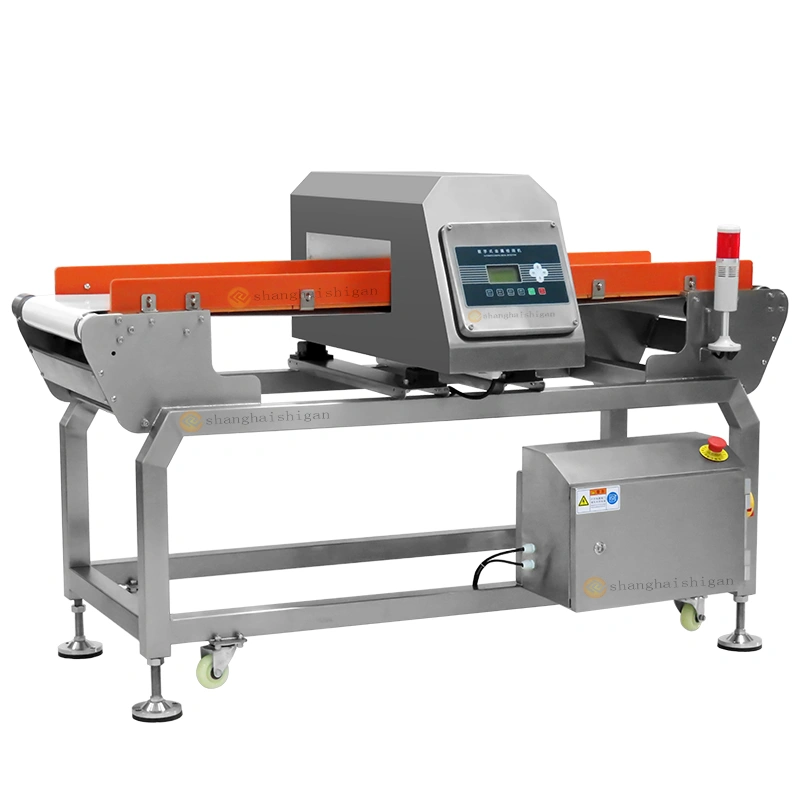

Automatic food packaging metal detector pictures
1. Dual-circuit circuit design, can detect metal objects such as iron and non-iron, sensitivity can be adjusted separately, with memory function can store 10 test materials.

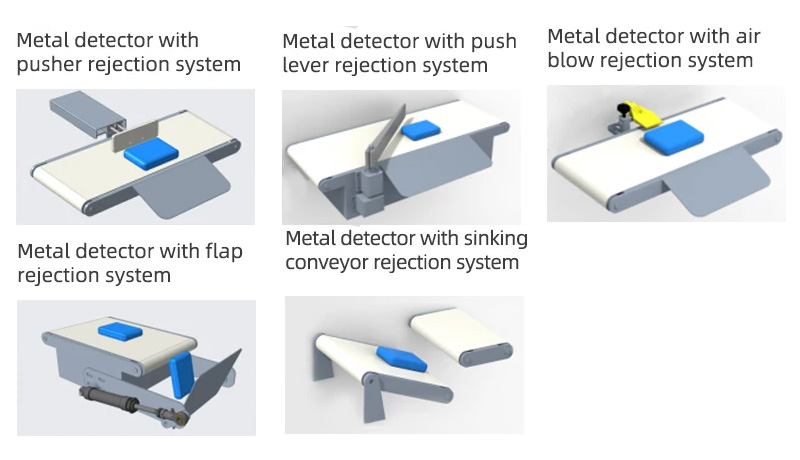

2. The detector has sound and light alarm, and has automatic exclusion, stop, rewind function, humanized menu, and easy touch screen operation. The whole machine is made of stainless steel, anti-corrosion, no rust, easy to clean.
3. The conveyor and tray components are made of white non-toxic materials of American standards.
4. The detection accuracy exceeds the detection indicators specified in the HACCP system.
6. Can be used in conjunction with the production line.
Automatic food packaging metal detector is used to detect all metal foreign bodies mixed in packaged and bulk products, including iron, copper, aluminum, lead, stainless steel and other metals. It is suitable for all metal foreign body detection in food, aquatic products, meat and poultry, pickled products, dried fruits, vegetables, pastries, cosmetics, textiles, toys, rubber and plastics and other industries.
Detecting width 200/300/400 mm(customizable)
Detecting height 100 mm / 120 mm / 150 mm / 200 mm / 250 mm / 300 mm (customizable)
Detection sensitivity Iron Fe acuity Φ 0.8 mm; Nonferrous Non - Fe acuity 1.2 mm; Stainless steel 304 SUS acuity Φ 1.5 mm
Sensitivity control Automatic configuration
Display screen 4.3 -inch LCD
Shelf life prediction 99 species of
Load capacity 0-5 kg
The speed of conveyor 350 mm (customizable)
Speed of conveyor belt 25 meters per minute
Height of conveyor belt above ground 700 mm (can be customized)
The length of conveyor belt 1200 mm
Machine material Stainless steel 304

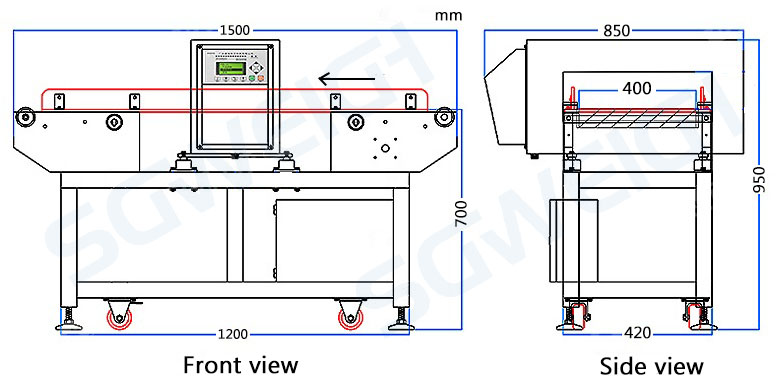

Boundary dimension 1220 x 880 x 900 mm (specific need to be measured according to the customized size)
Weight 130 kg
Power supply 110 V/220 V/50-60 Hz(customizable)
Service environment 0-40ºC relative humidity 30~85%, but no condensation
Coffee Sugar Sachets Metal Detector Automatic Food Packaging Metal Detector

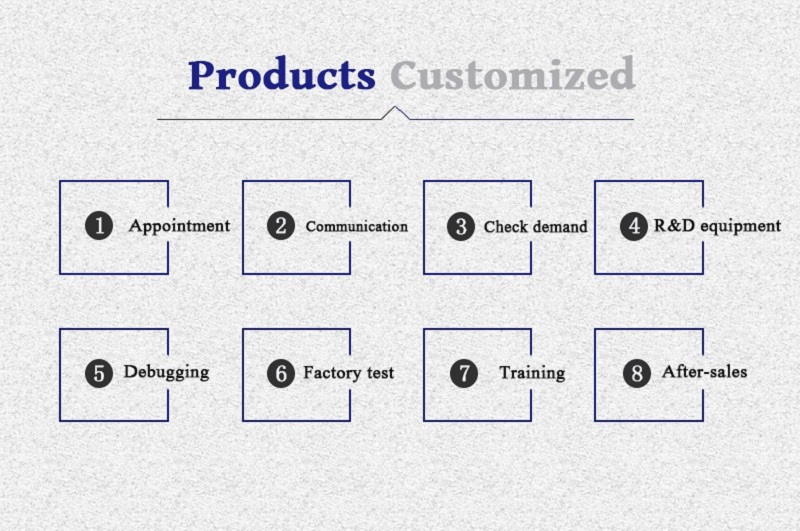

In the application of automatic food packaging metal detectors, Shanghai Shigan provides the following customized services to users in various industries:
1) Help users choose digital metal detector models that are suitable for the current status of the production line;
2) Customize metal detection or quality abnormality solutions for users with personalized demands;
3) Design economical and practical online food metal detector solutions for users;
4) Customize the front-end and back-end connection auxiliary mechanisms of the food assembly line metal detector for users;
5) Provide users with consulting and training services for assembly line metal detectors.
Coffee Sugar Sachets Metal Detector Automatic Food Packaging Metal Detector

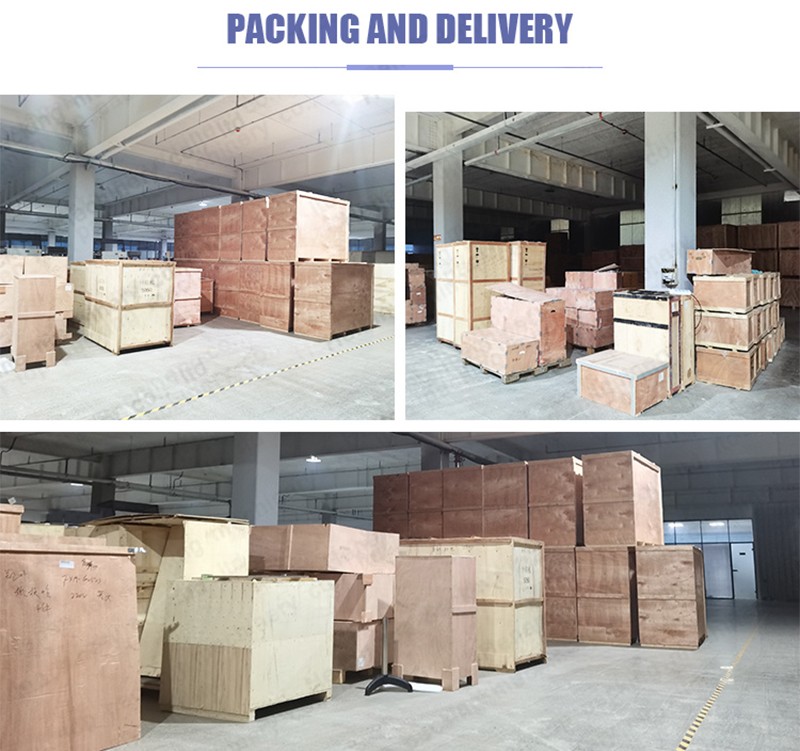

Plastic packaging is used for the inner part, and stronger wooden boxes will be used for the outer part.
Our standard packaging process:
1) Dust removal and cleaning
2) Lubricate drive parts
3) Divide the machine into modules
4) Wrap the modules with plastic film
5) Pack the modules into plywood boxes
6) Mark the shipping mark on the boxes
If there are any special requirements, we will pack as required.
1. Pre-sales consultation
We will help you customize the appropriate bottle check weigher solutions according to your requirements and specific circumstances.
2. Installation service
We will dispatch professional technicians to carry out on-site installation and commissioning as needed.
3. Maintenance service
Shigan provides long-term maintenance services, providing any repair parts free of charge during the warranty period, and only charges after the warranty period expires.
4. Staff training
Shigan provides free technical training for our customers to fully master the correct product maintenance technology.
5. Customer service
Shigan designs customized production lines for customers based on specific weighing and packaging factors such as product output, packaging method and factory area.
