Hard Capsule Checkweigher with Real-Time Rejection Pharma QA Weight Checker

Description

Hard Capsule Checkweigher with Real-Time Rejection Pharma QA Weight Checker

The hard capsule checkweigher with real-time rejection is designed to quickly and accurately check the weight of individual capsules, ensuring each product meets stringent quality standards before moving on to the next stage. Designed for seamless integration into high-speed production lines, this pharma capsule checkweigher identifies and rejects underweight or overweight capsules in real time, protecting your brand and ensuring patient safety. To know more about us, please you do not hesitate to contact us or visit our factory.

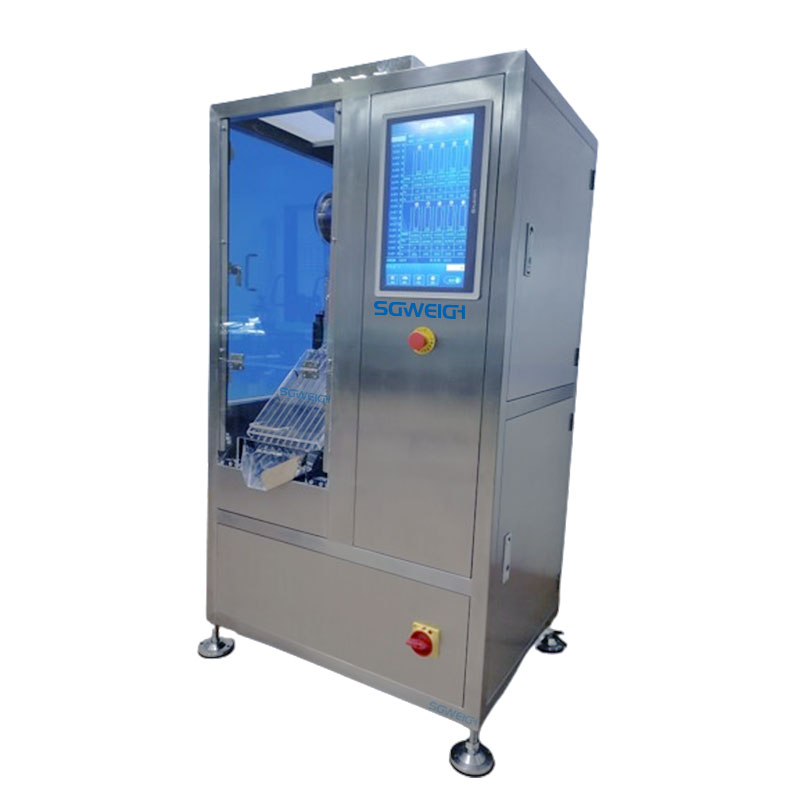

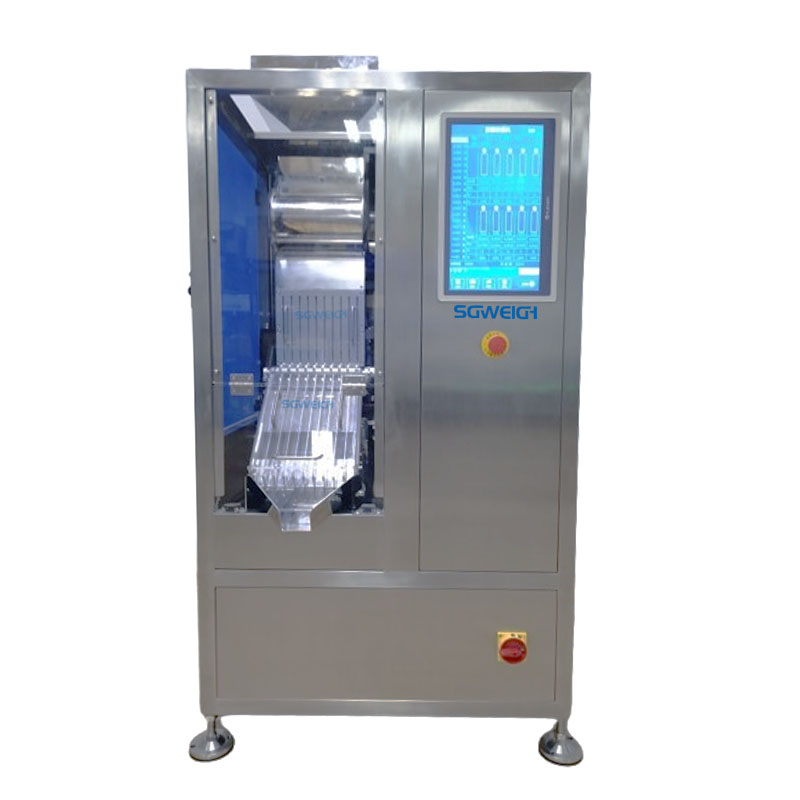

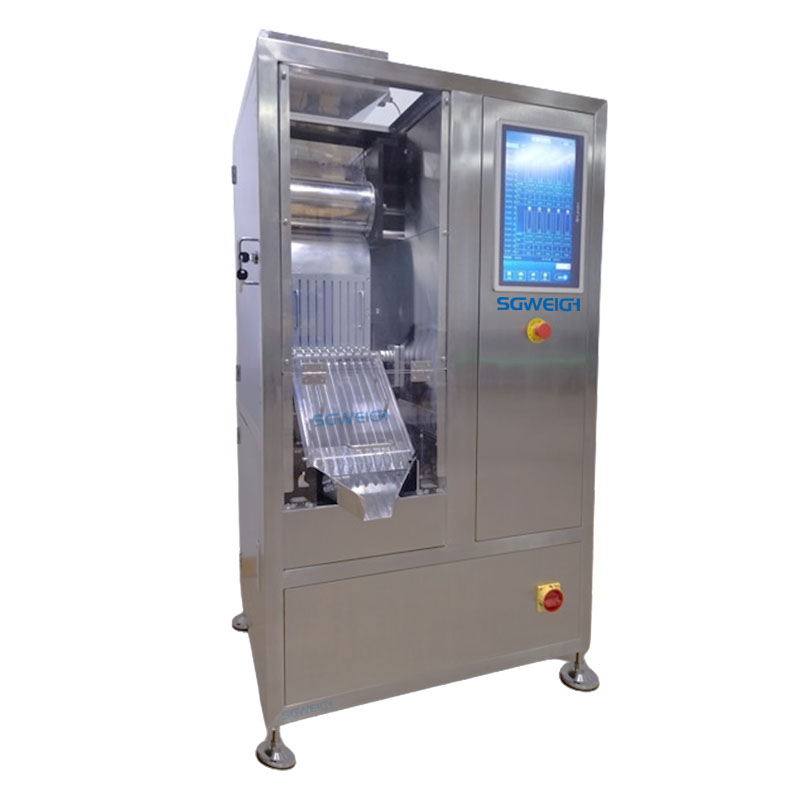

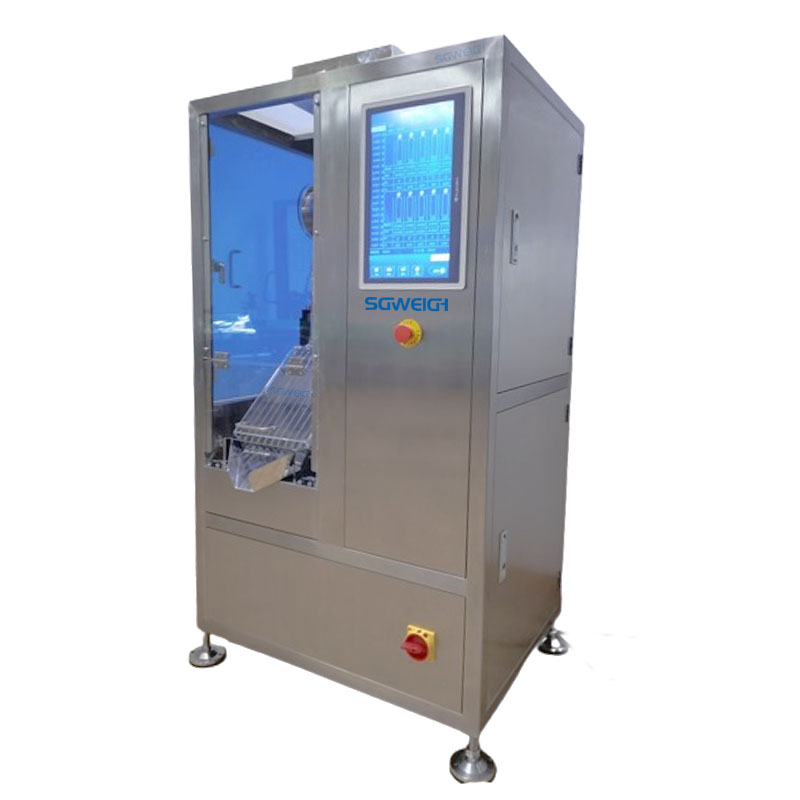

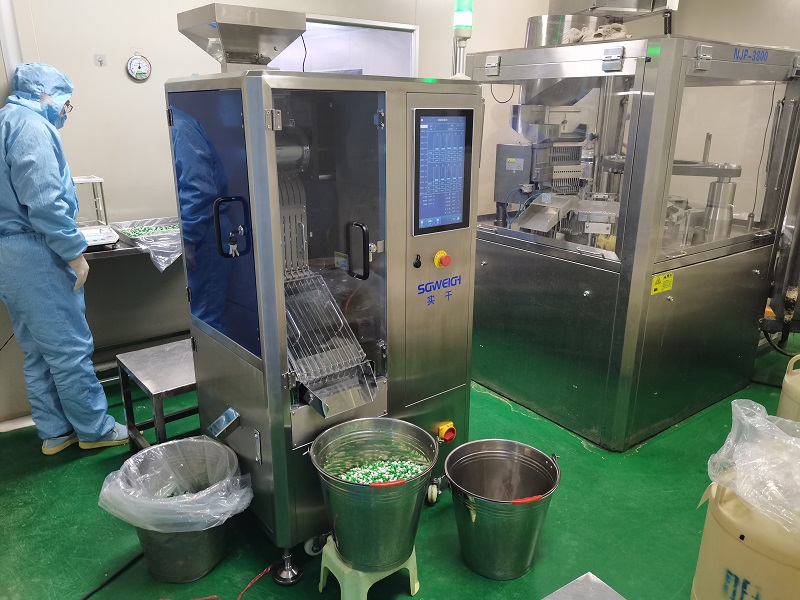

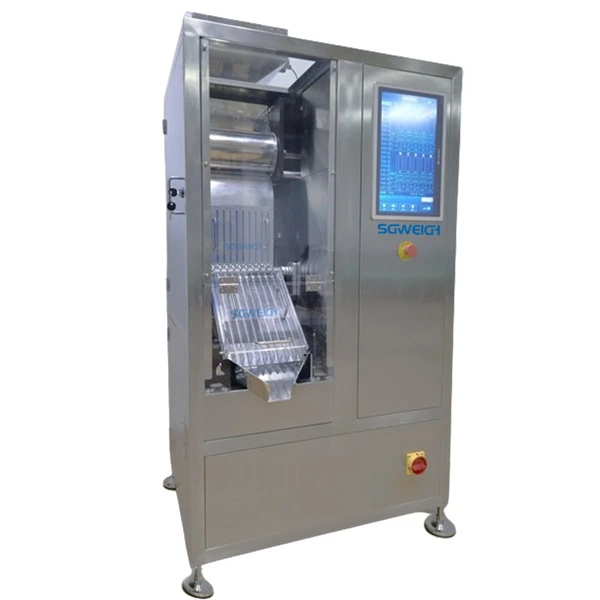

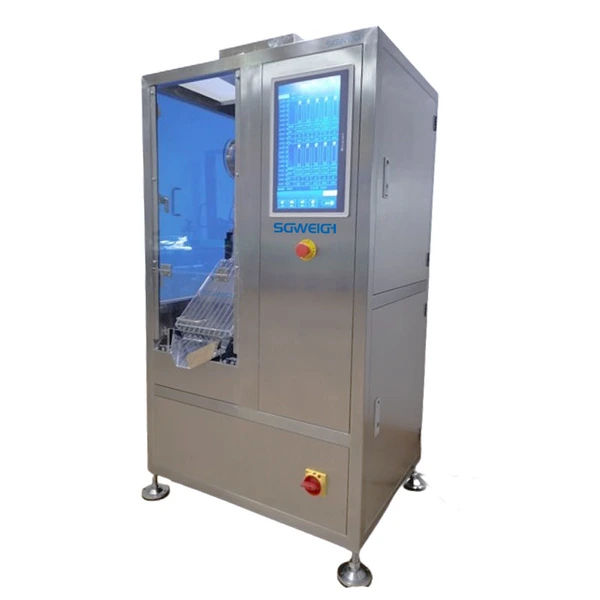

Hard capsule checkweigher with real-time rejection photos

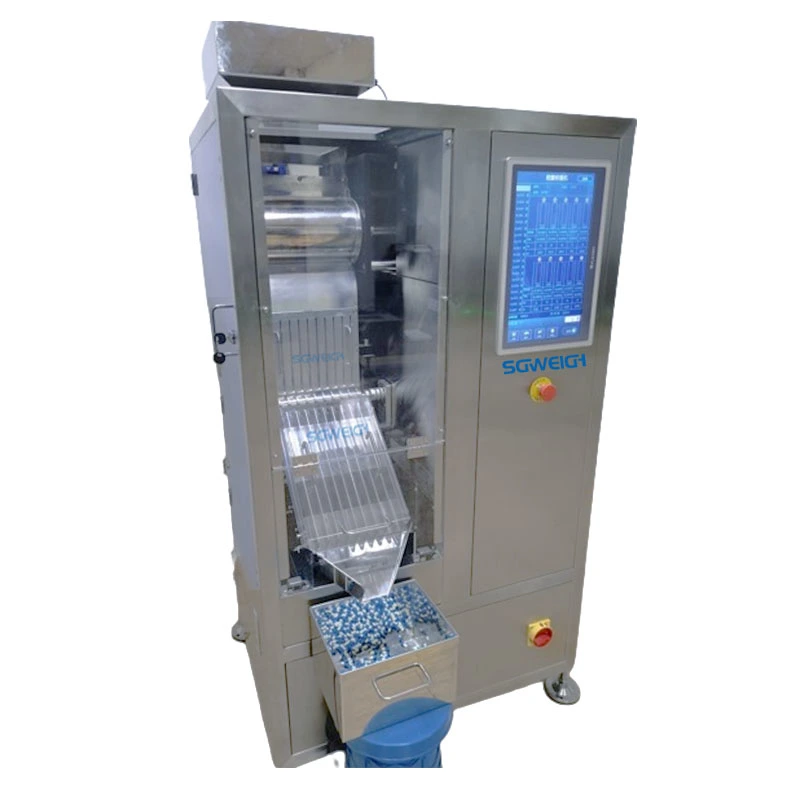

Hard Capsule Checkweigher with Real-Time Rejection

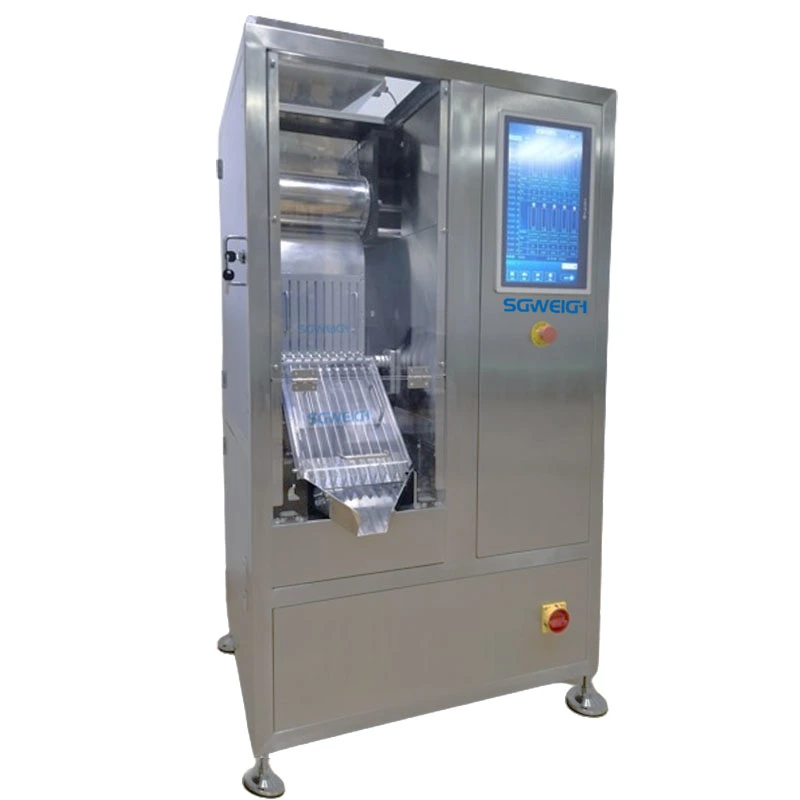

Hard Capsule Pharma Weight Checker

Hard Capsule Checkweigher For Pharma

Equipment model CM is ±1.0-2000

Design capacity 2000 tablets/minute (120,000 tablets/hour)

Actual capacity >120,000 tablets/hour

Weighing scale 10~2000mg

Resolution 0.1mg

Dynamic accuracy ±1.0mg (actual operation accuracy ±1.0mg, minimum ±1.5mg)

Applicable materials Capsules 000#~5#, conventional tablets

Working voltage AC220V/50Hz

Control voltage DC24V

Rated power 0.6KW (main machine 0.3kw, each single machine 0.15kw)

Working pressure 0.6~0.8 Mpa

Gas consumption 0.1m³/min

Equipment weight 200kg (main machine 60kg, single machine 70kg)

Overall dimensions 740*350*1480mm (main unit width 350mm, stand-alone unit width 190mm)


1. Weight Measurement: A hard capsule checkweigher with real-time rejection measures the weight of each capsule, tablet, or pill as it moves along the production line. It compares the measured weight to a predefined weight range to determine if the product is within the acceptable range.

2. Automatic Rejection: Products outside the acceptable weight range are automatically rejected from the production line, ensuring that only qualified products proceed to the packaging stage.

3. Data Logging: Many capsule and tablet checkweighers include data logging capabilities, allowing manufacturers to track performance, record weight data, and generate quality control and regulatory compliance reports.

4. User Interface: Modern capsule checkweigher with real-time rejection feature intuitive touchscreens or other user-friendly interfaces for easy operation, calibration, and parameter adjustment.

5. Compact Design: These pharma capsule checkweighers are typically compact and can be fitted into existing production lines with minimal disruption.

6. High-Speed Operation: These checkweighers are designed for high-speed operation, capable of weighing hundreds or even thousands of units per minute, depending on the model.

7. Accuracy: Precision is crucial in pharmaceutical applications. These pharma capsule checkweighers typically offer high accuracy, often down to the milligram, to ensure compliance with stringent industry standards.

Hard Capsule Checkweigher with Real-Time Rejection Pharma QA Weight Checker


Applicable to various capsule dosage forms: Suitable for weight measurement of hard capsules, soft capsules, enteric-coated capsules, and other capsule dosage forms.

capsule tablets.jpg

SGWEIGH has extensive pharma capsule checkweigher manufacturing experience, expertise, resources, and capabilities to tailor efficient, cost-effective, and high-quality capsule checkweigher solutions to meet your specific needs.

Hard Capsule Checkweigher with Real-Time Rejection Pharma QA Weight Checker

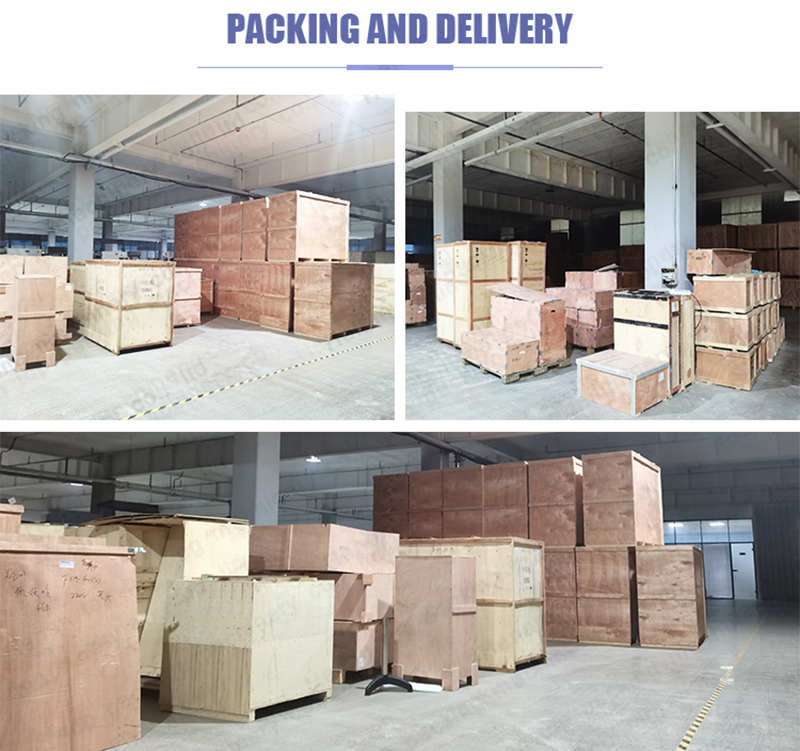

1. Packaging Materials: International standard export packaging boxes are typically used, offering excellent wear resistance, shock resistance, and waterproofing. Options include hardwood boxes, plastic boxes, or export-specific cartons.

2. Protective Measures: To protect the machine from damage during transport, sufficient filling materials, such as foam and shock-absorbing cotton, must be added to the packaging box.

packaging (2).jpg
