High-Speed Capsule Checkweigher With 1mg Accuracy High Stability Weighing Machine
The high-speed capsule checkweigher uses imported high-precision electromagnetic weighing sensors with high accuracy, good stability and long life. The capsule checkweigher for the pharmaceutical comes with F1-level standard weights, which can realize automatic calibration to ensure that weighing is always accurate. As a precision instrument, the checkweigher is very light and compact, does not take up space, and can be moved at any time with casters.

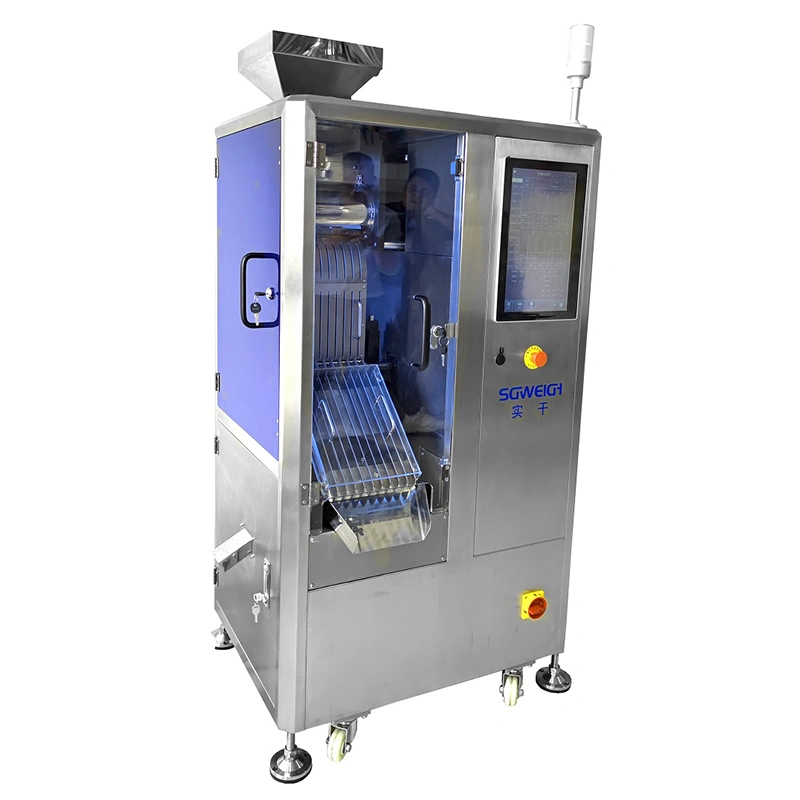

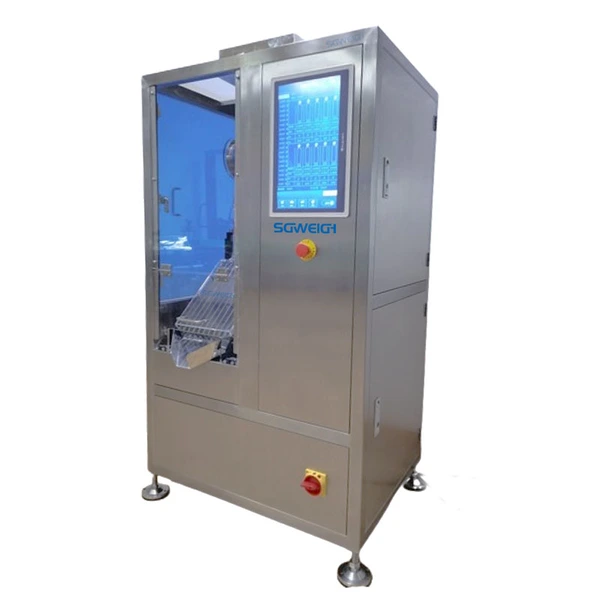

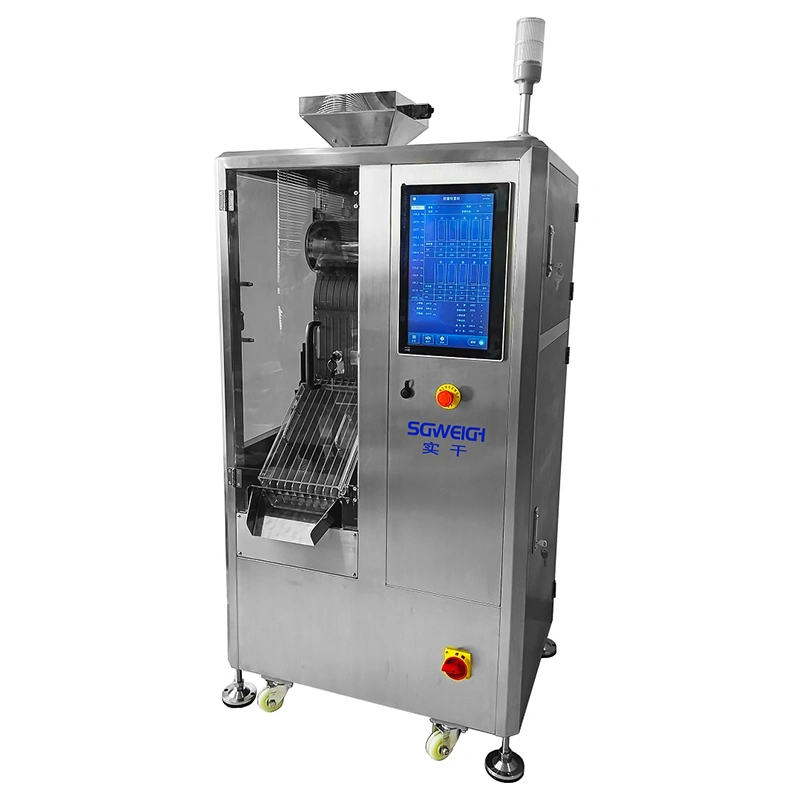

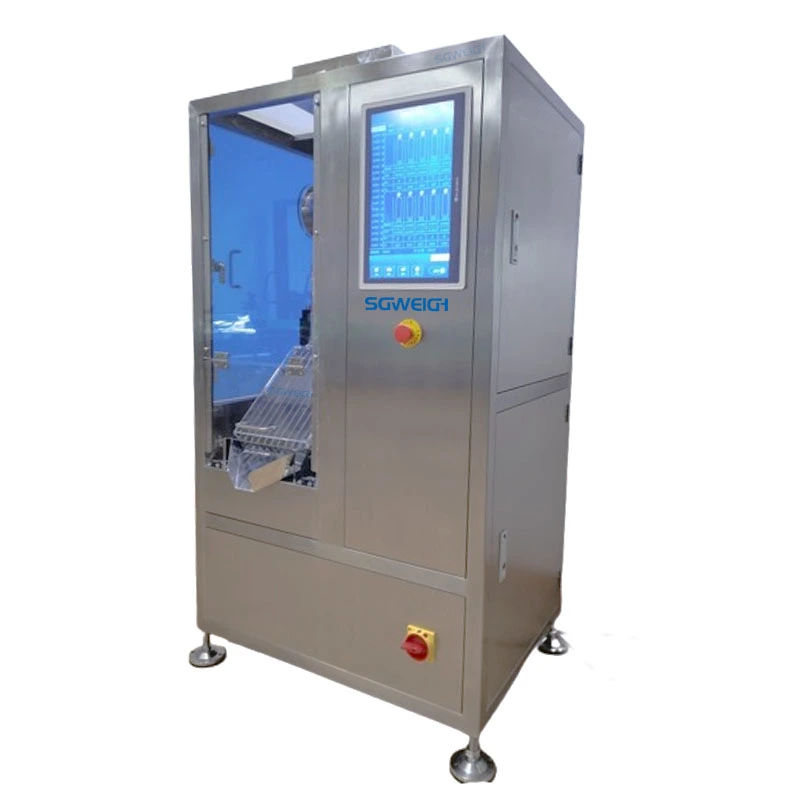

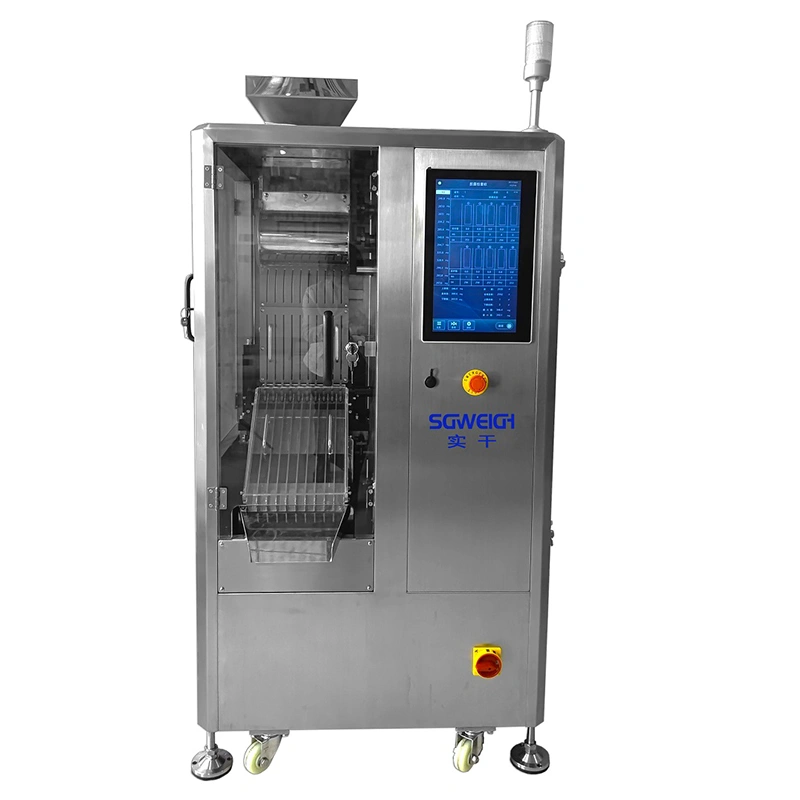

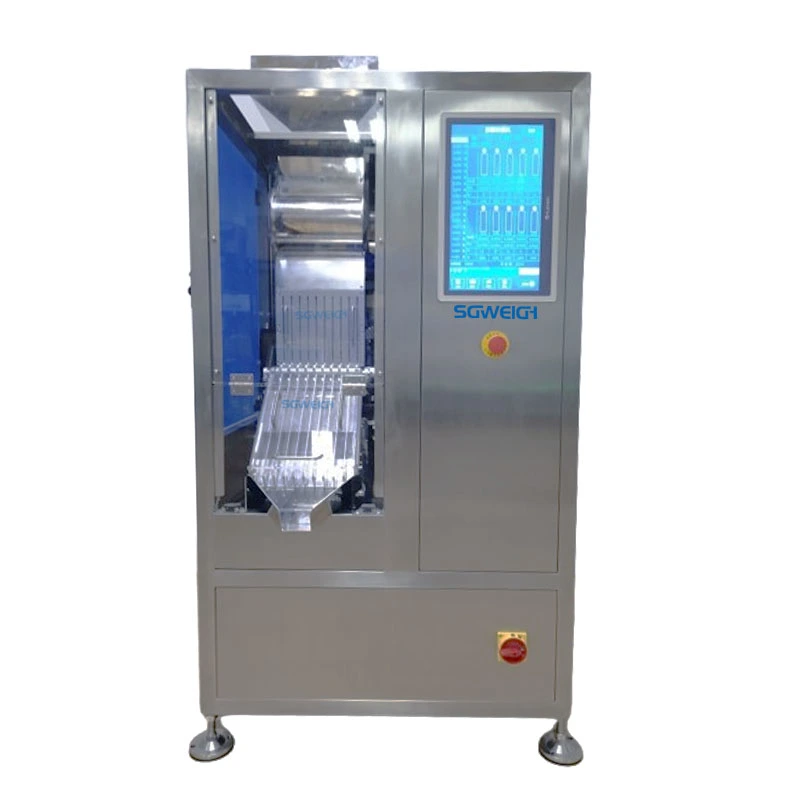

Online capsule pharmaceutical checkweigher photos
Equipment model CM is ±1.0-2000
Design capacity 2000 tablets/minute (120,000 tablets/hour)
Actual capacity >120,000 tablets/hour
Weighing scale 10~2000mg
Resolution 0.1mg
Dynamic accuracy ±1.0mg (actual operation accuracy ±1.0mg, minimum ±1.5mg)
Applicable materials Capsules 000#~5#, conventional tablets
Working voltage AC220V/50Hz
Control voltage DC24V
Rated power 0.6KW (main machine 0.3kw, each single machine 0.15kw)
Working pressure 0.6~0.8 Mpa
Gas consumption 0.1m³/min
Equipment weight 200kg (main machine 60kg, single machine 70kg)
Overall dimensions 740*350*1480mm (main unit width 350mm, stand-alone unit width 190mm)
1. Weight Measurement: A high-speed capsule checkweigher measures the weight of each capsule, tablet, or pill as it moves along the production line. It compares the measured weight to a predefined weight range to determine if the product is within an acceptable range.
2. High-Speed Operation: Designed for high-speed operation, these checkweighers can weigh hundreds or even thousands of units per minute, depending on the model.
3. Accuracy: Precision is critical in pharmaceutical applications. These checkweighers typically offer high accuracy, often down to the milligram, to ensure compliance with stringent industry standards.
4. Advanced Sensors: Equipped with high-precision load cells or electromagnetic force recovery sensors, they can accurately detect even the slightest changes in weight.
5. Automatic Rejection: Products outside the acceptable weight range are automatically rejected from the production line, ensuring that only products that meet requirements make it to the packaging stage.
6. Data Logging: Many high-speed capsule checkweighers have data logging capabilities, allowing manufacturers to track performance, record weight data, and generate quality control and regulatory compliance reports.
7. User Interface: Modern capsule checkweigher for the pharmaceuticals feature an intuitive touchscreen or other user-friendly interface for easy operation, calibration, and parameter adjustment.
8. Compact Design: These machines are usually compact and can be fitted into existing production lines with minimal disruption.
High-Speed Capsule Checkweigher With 1mg Accuracy High Stability Weighing Machine
Customization Options
1. Multi-lane Configuration: For high-volume production, a multi-lane checkweigher can be customized to handle multiple product lines simultaneously.
2. Product Specific Adjustments: Customizable parameters allow the high-speed capsule checkweigher to accommodate capsules, tablets, and pills of varying sizes, shapes, and weights.
3. Other special requests.
If you are interested, please contact us
High-Speed Capsule Checkweigher With 1mg Accuracy High Stability Weighing Machine
Food automatic metal detectors are equipment that use export standard wooden boxes (fumigation-free) for packaging. We can accept FOB, CFR, CIF terms, and our professional logistics team can handle sea, air, and rail transportation.
1) Warranty period: 1 year. During this period, if there is any non-human damage to them, we will provide spare parts for replacement free.
2) Quality: The product quality will be strictly checked, and each machine will be tested before packaging to ensure that it can work normally.
3) Technical service: After the machine is sold out, we will keep in touch with customers. If you need any help on the machine, please do not hesitate to contact us.
4) Document service: We provide instructions and videos to teach you how to use and test the machine.
5) Accessories: We provide spare parts with competitive prices after the warranty period.
