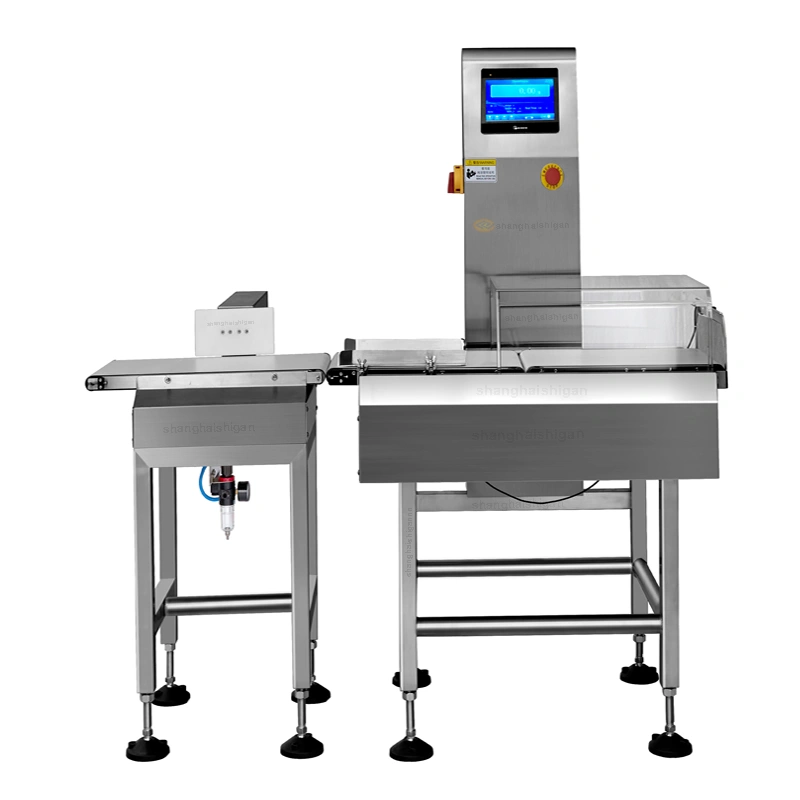

High Speed Conveyor Bottled Beverage Checkweigher Canned Soda Checkweigher
Automatic bottle cans checkweigher, an online weighing equipment tailored for the industry, is made of 304 stainless steel. Unqualified products are automatically alarmed and automatically removed, which solves the work efficiency of the automated production line. The high speed bottled beverage checkweigher replaces manual checkweighing to achieve high-precision and high-speed checkweighing effects. It is the core equipment of the automated production line, which guarantees product quality and improves production efficiency. You are welcome to contact us at any time for quotation.

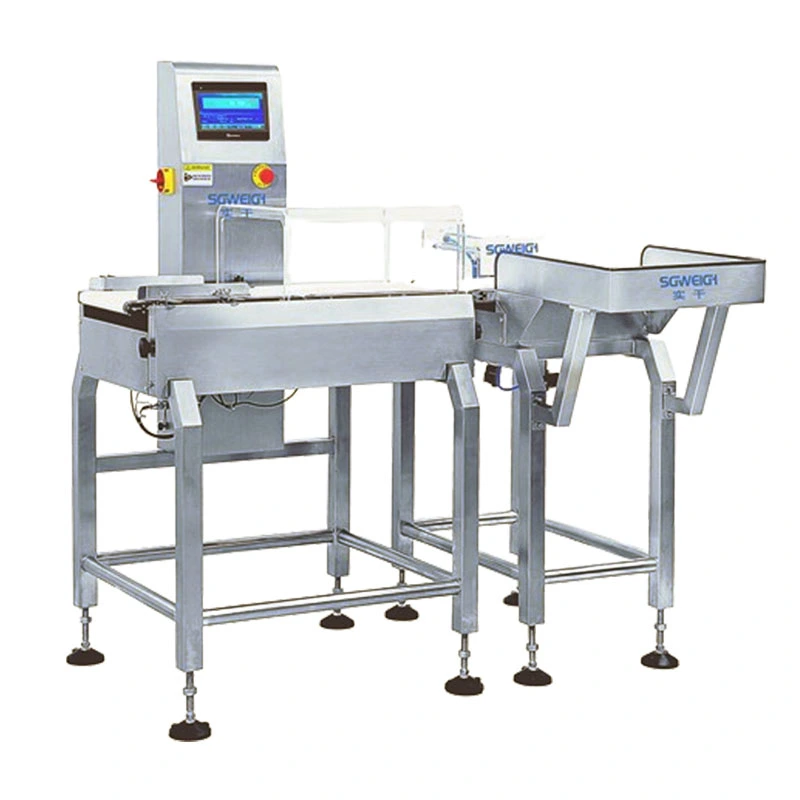

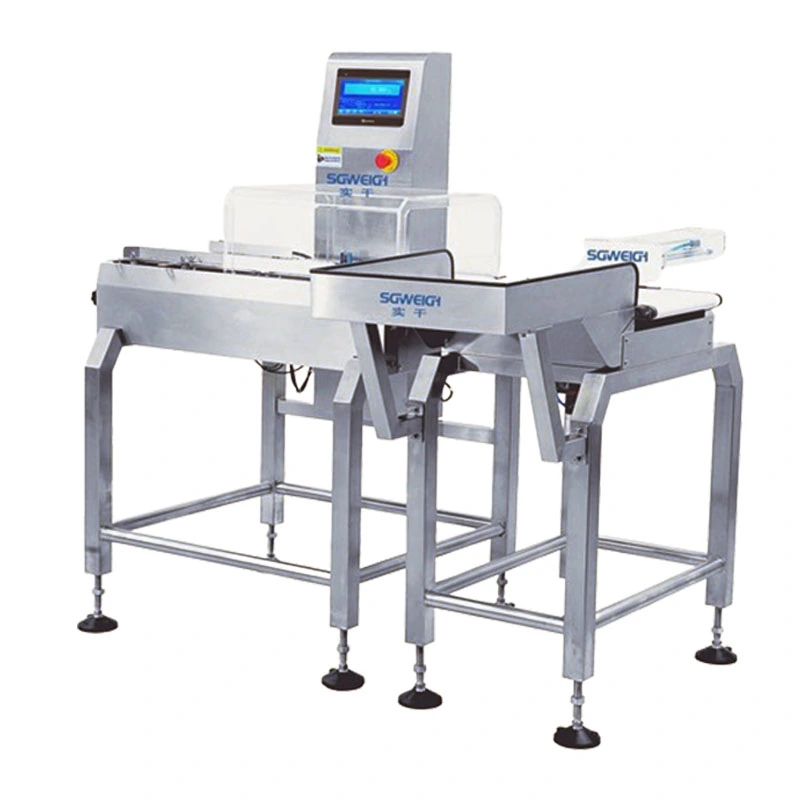

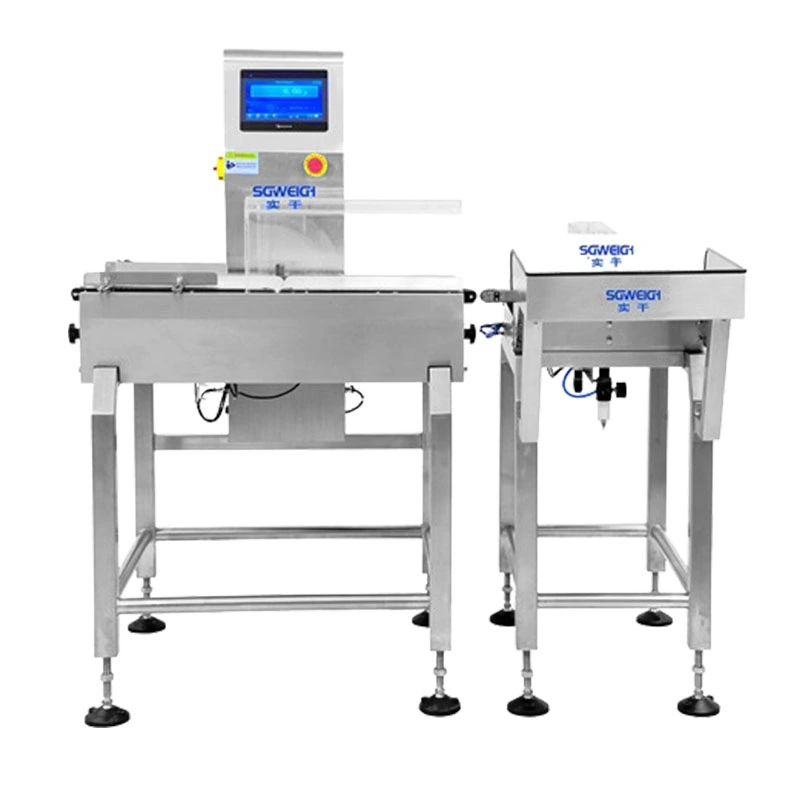

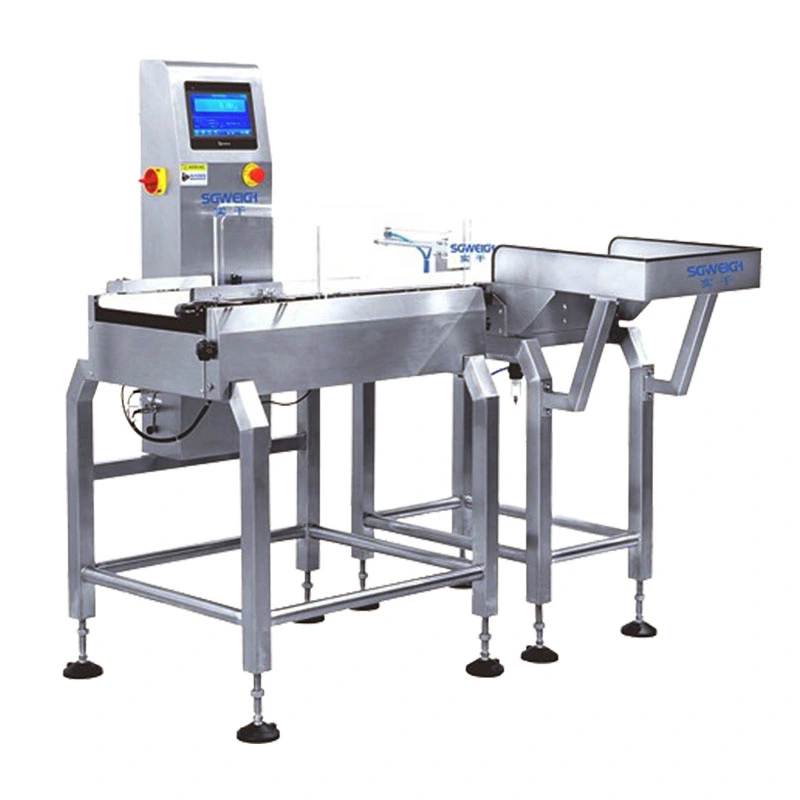

Auto boxed hardware screw checkweigher pictures
Type SG-300U
Weighing Range 5-3000g
Limited of product L: 350 W:300 H: up3mm
Accuracy ±0.3g-0.5g Depends on product
Division Scale 0.1g
Belt Speed 0- 60 m/min
Max Speed 80 pcs/min
Belt Width 300mm
Machine Weight 85kg
Power Supply AC -220V 50HZ
Power 200W
Main Material SU304 stainless steel
•Easy Integration: adjustable height, modular design
•Sturdy and robust construction: Stainless Steel 304
•Easy to use: touch screen operating system is easy to use with user password protection
•Easy to clean: detachable belt easy to to take apart for cleaning and set up.
•Variable Speed: Speed configurable based on application
•High Speed and Accuracy: equipped with high grade sensor and load cell with ultra fast processor for excellent accuracy and speed
•Zero Trace: Manual and Automatic Calibration, increase accuracy
•Report and Data Exportation: Built-in real time report, exportable to Excel file, storing up 1 year production data in USB disk
•Connectivity: standard ports for data exportation and connect to PC
•Self-learning: no need to calibration, system will find the best set up for the product. Configurable up to 2000 product settings
•Different Detection Modes: Default Mode, Static Mode, Power saving mode
•Faulty report: The system can detect and report faulty part of the system makes it easy to diagnose problems
•Output Ports: RS-485 and RS-232, able to Connect with printers and label machines
High Speed Conveyor Bottled Beverage Checkweigher Canned Soda Checkweigher
1. Automatic bottle cans checkweigher is suitable for bottles of various shapes and heights.
2. The clamping conveyor can make the bottle stand upright after falling.
3. Widely used in many industries such as electronic hardware, pharmaceuticals, food, chemicals, beverages, health products, etc.
Shanghai Shigan provides automatic bottle cans checkweigher solutions, complete in specifications and support full-function customization services. Automatic bottle cans checkweighers can replace manual sorting and realize intelligent standardized automatic weighing.
High Speed Conveyor Bottled Beverage Checkweigher Canned Soda Checkweigher
Free export fumigation plywood box with quick connection design, easy to open and reuse;
Internal plastic film packaging can protect goods from salt, wind, or damage;
In order to find the best solution, save costs, provide the best service, and earn more profits for our partners, we look forward to long-term cooperation!
Pre sale.
1. Project design, performance introduction, technical agreement, contract signing, packaging
2. Inquiry and consultation support.
3. Sample testing support.
In terms of sales.
We will provide you with the latest developments in product assembly, packaging, and transportation.
After sales service.
1. We will provide free accessories for non human component damage.
2. Training on how to install the machine, video training on how to use the machine, etc
3. One year warranty and lifelong maintenance
About after-sales service, we promise:
The products sold to customers in one year, non-human or external causes of quality problems caused by the implementation of free maintenance and lifetime sales.
Customers purchase the product, if there is a problem in the installation of technology, our company will cooperate fully solve the problem.
Division I is a regular company, operating integrity, many customers receive the praise.
