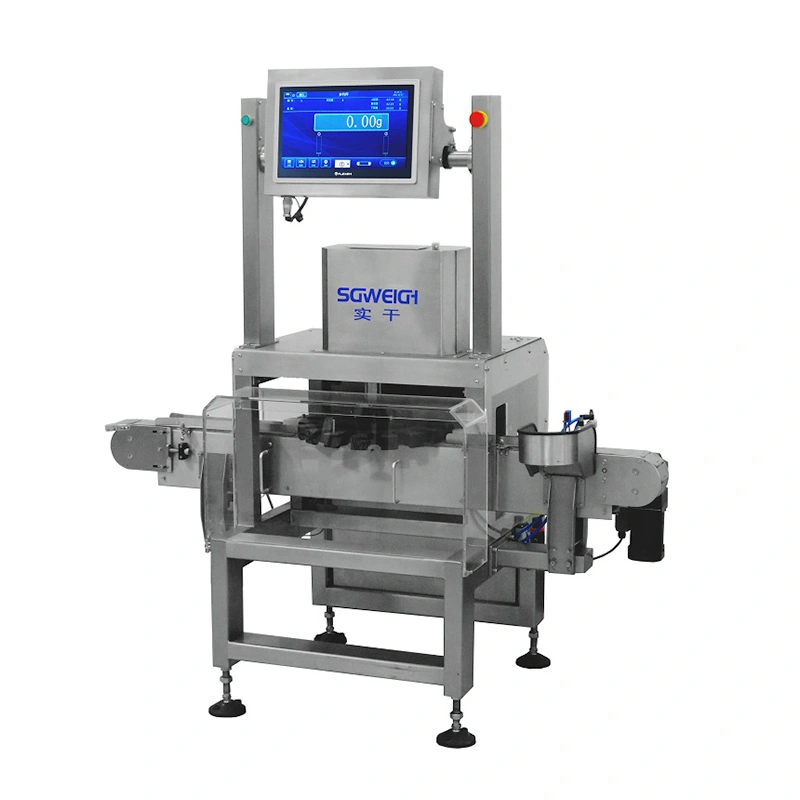

Industrial Rotary Checkweigher High Accuracy Bottle Dynamic Checkweighing System

Description

Industrial Rotary Checkweigher High Accuracy Bottle Dynamic Checkweighing System

This industrial rotary checkweigher for bottle employs continuous motion weighing technology, ensuring that every product is inspected with exceptional accuracy without disrupting the workflow. This high accuracy bottle dynamic checkweighing system integrates seamlessly into filling and packaging lines, ensuring real-time weight verification on the scale. The intelligent rejection system immediately removes defective products, minimizing waste while protecting brand reputation. Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us for a quote.

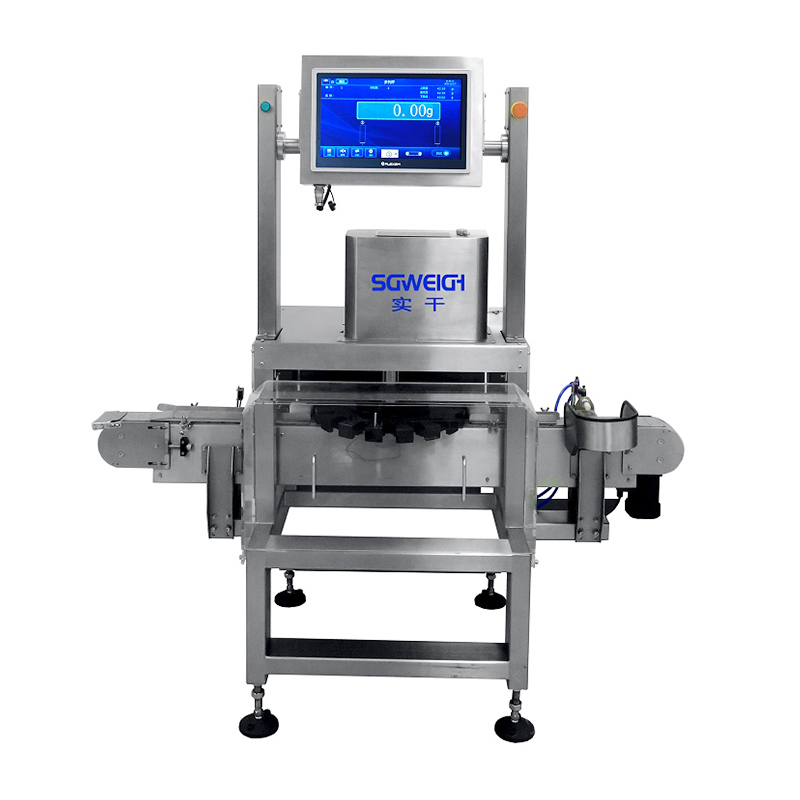

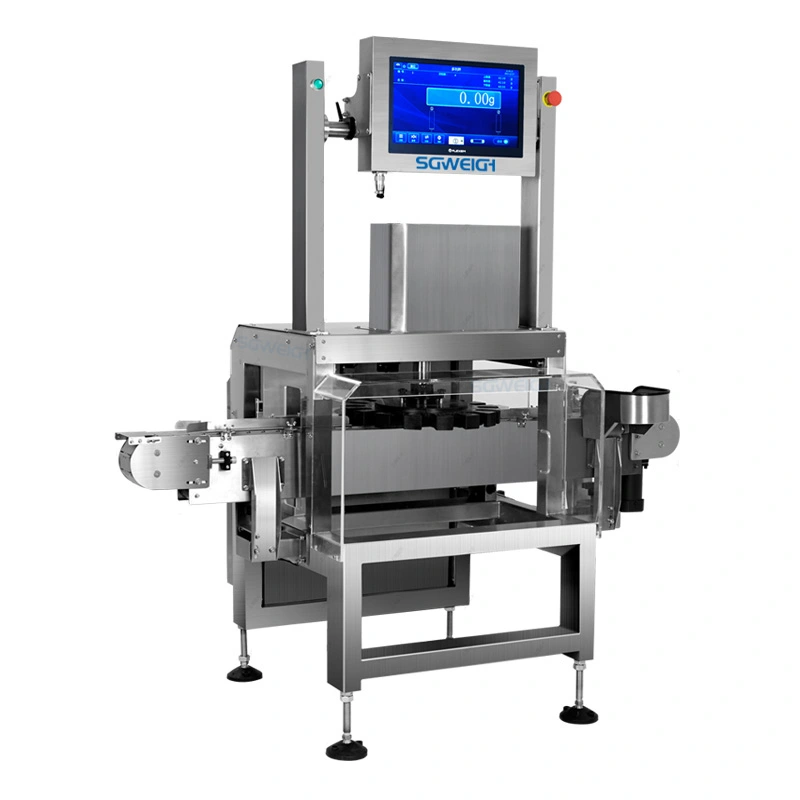

Industrial rotary checkweigher for bottle photos

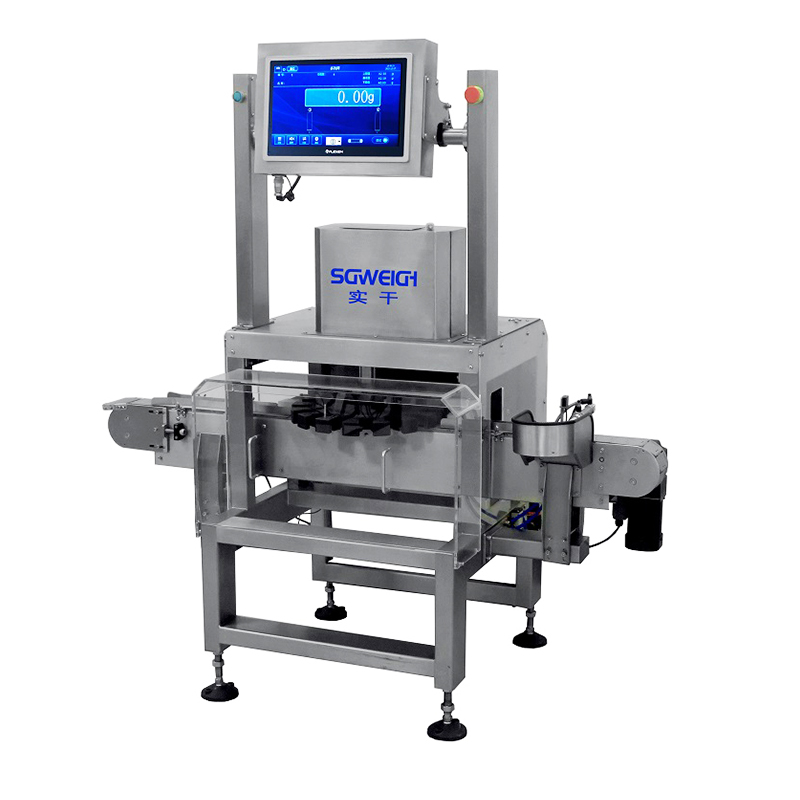

Industrial Rotary Checkweigher

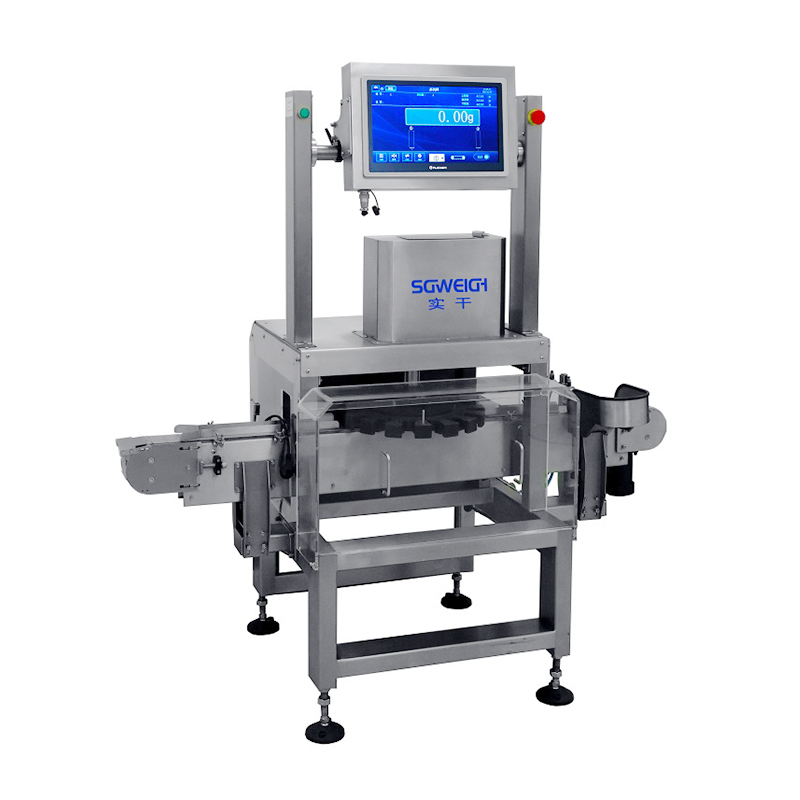

Industrial Rotary Checkweighing System

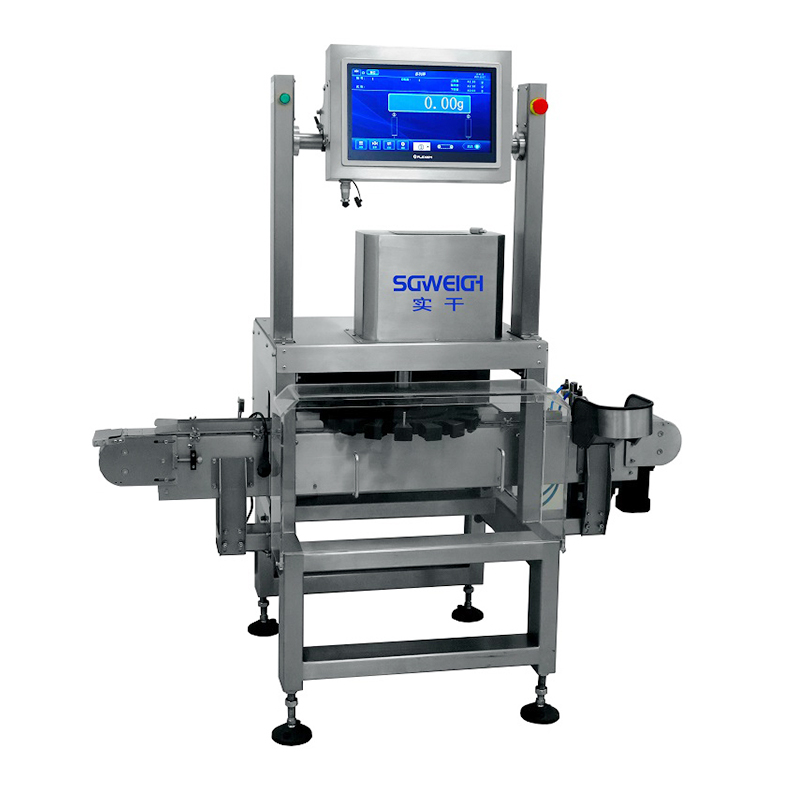

Industrial Rotary Checkweigher For Bottles

Model: SG-Z1

Weighing Range: 5-300g

Minimum Graduation: 0.01g

Sorting Speed: Maximum 50 pieces/minute (single channel)

Conveyor Speed: 20-100m/min

Operation Method: Touchscreen Operation

Conveyor Direction: From left to right when facing the touchscreen

Rejection Method: Air blow rejection/Push plate rejection

Belt Height from Ground: 750±50mm (customizable upon request)

Machine Structure: Stainless Steel (SUS304)

Power Supply: 220V 50-60HZ

Power Consumption: Approx. 300W

Wind Protector: Thick acrylic (to prevent airflow interference)

Operating Environment: Temperature: 0℃～40℃, Humidity: 30%～95%

Note: The detection speed and accuracy will vary depending on the properties of the products being tested and the operating environment. Actual testing shall prevail.


Industrial Rotary Checkweigher High Accuracy Bottle Dynamic Checkweighing System

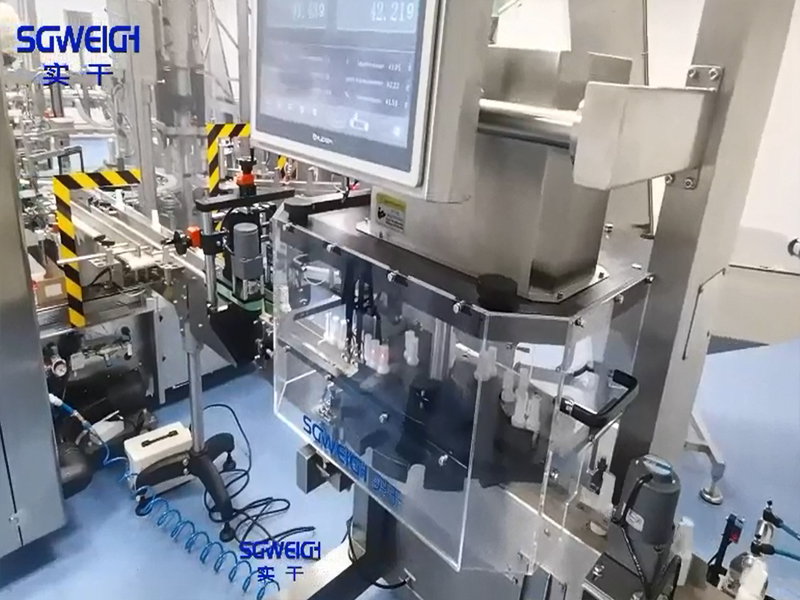

rotary checkweigher for bottles.jpg

1. Gentle rotary handling prevents bottles from tipping over or breaking.

2. High throughput to meet ever-increasing production demands.

3. Real-time weight analysis automatically filters out underfilled or overfilled products; an automatic rejection system ensures only qualified bottles pass through.

4. Supports a wide range of glass, PET, and plastic bottle sizes.

5. Sanitary stainless steel construction with a small footprint.

6. User-friendly touch interface for quick setup and adjustments.

7. Data logging function for continuous quality auditing.

8. Long-term stable operation with minimal maintenance.

1. Suitable for bottles of various shapes and heights.

2. The clamping conveyor allows the bottles to stand upright after being dropped.

3. Customization is available to meet various needs.

Customizable Solutions – We understand that every production line is unique. Therefore, our industrial rotary checkweighers for bottles are fully customizable to meet your specific needs, from size and shape to detection sensitivity.

Industrial Rotary Checkweigher High Accuracy Bottle Dynamic Checkweighing System

SGWEIGH Checkweigher Company Profile.jpg

1> Attach safety labels, tighten screws, clean, lubricate, and prevent rust;

2> Disassemble into packages;

3> Wrap tightly with plastic film;

4> Secure in plywood box

5> Forklift into container

Suitable for long-distance land and sea transportation. In order to safely load and unload at the destination, we recommend that you choose full container transportation.

1. We offer a 12-month warranty on the entire unit from the date of shipment.

2. During the warranty period, we will provide free replacement parts and shipping for any product quality issues.

3. For issues occurring during the warranty period, or due to improper operation or unauthorized repairs, we will charge a reasonable fee in accordance with our service policy.

4. We will review the product's performance with photos and videos before shipment to ensure everything is correct.

5. We will respond promptly to all complaints or feedback within 24 hours.
