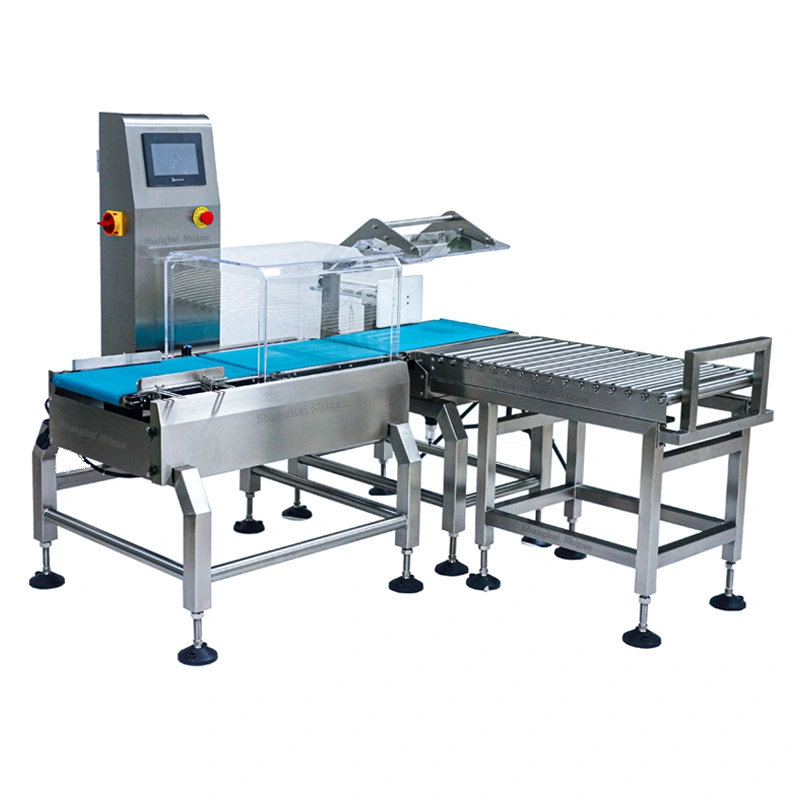

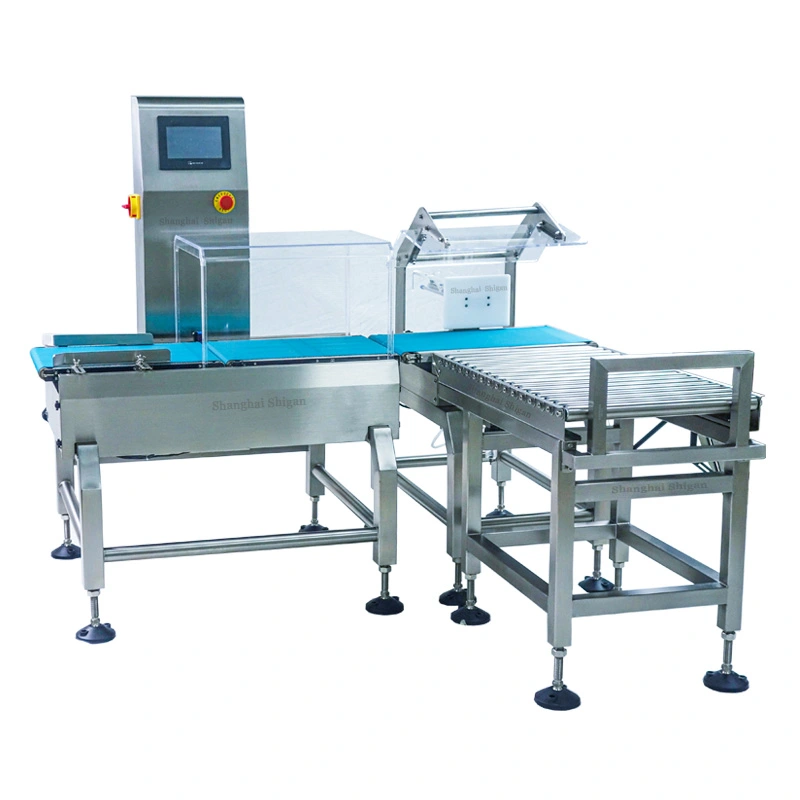

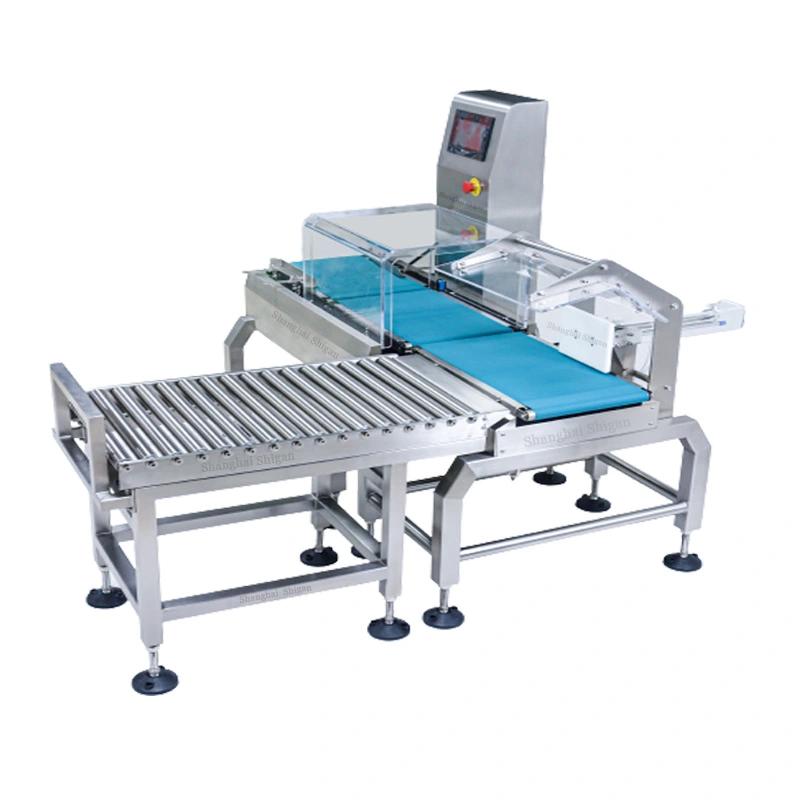

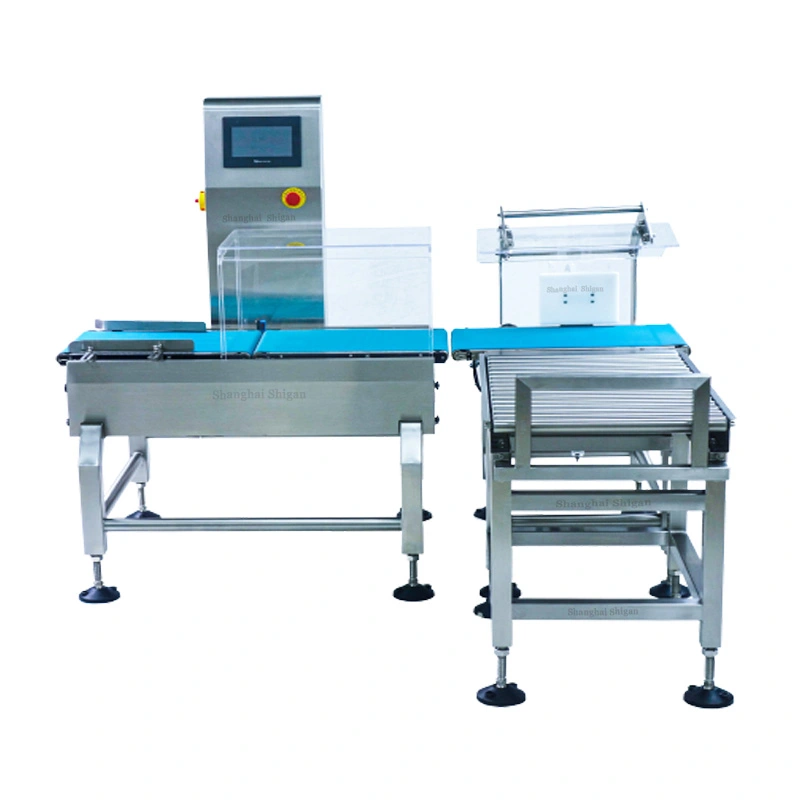

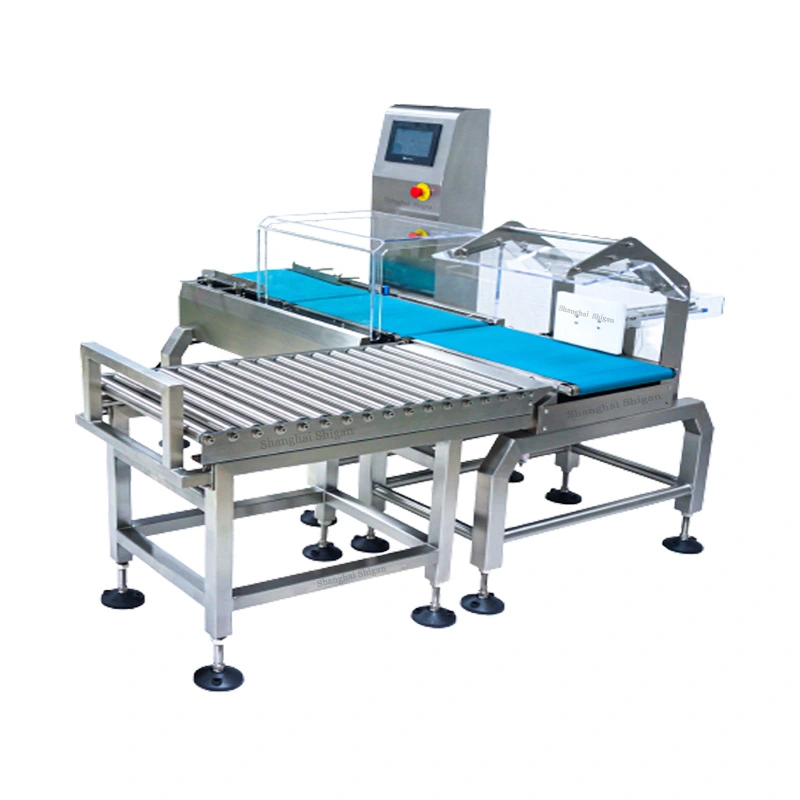

Large Carton Package Conveyor Belt Check Weigher Wide Range Checkweigher

Description

Large Carton Package Conveyor Belt Check Weigher Wide Range Checkweigher

The carton package conveyor check weigher is mainly composed of a microcomputer system, a display system, a conveying system, a weighing system and a rejection system. It adopts advanced technology and high-speed single-chip microcomputer control to detect whether the weight of a single product is consistent with the set target, and automatically rejects unqualified products through a sorting device. This large carton wide range checkweigher is built-in with the world's advanced digital weighing unit, which can achieve high-speed, accurate and stable measurement. You are welcome to contact us at any time for further information.

Bags cartons package checkweighers pictures

Large Carton Package Check Weigher

Large Carton Wide Range Checkweigher

Carton Package Conveyor Check Weigher

Type SG-450

Weighing Range 0.05-25kg

Limited of product L: 550 W:450 H: 3-400mm

Accuracy ±5/10g

Division Scale 1g

Belt Speed 0- 60 m/min

Max Speed 40 pcs/min

Belt Width 450mm

Machine Weight 40kg+70kg+45kg

Power Supply AC 110/220V ±10% 50HZ

Power 400W

Main Material SU304 stainless steel

1. Report function: built-in report statistics function; reports can be generated in EXCEL format, and a variety of real-time data reports can be automatically generated. The U disk can store statistical data for more than 1 year (need to be equipped separately), so as to grasp the production status at any time;

2. Interface: standard interface is reserved to facilitate data management, and can be connected to the communication network with smart devices such as PC;

3. Centralized control: one computer/human-machine interface can realize centralized control of multiple checkweighers;

4. Parameter recovery function: with factory parameter setting recovery function.

5. Versatility: standardized whole carton package conveyor check weigher structure and standardized human-machine interface can complete the weighing of various materials;

6. Convenient replacement: multiple formulas can be stored, which is convenient for changing product specifications;

7. Easy operation: using Weilun color human-machine interface, fully intelligent and humanized design;

8. Convenient maintenance: the conveyor belt is easy to disassemble, install, maintain and clean;

9. Adjustable speed: using frequency conversion control motor, the speed can be adjusted according to needs;

10. High speed and high precision: using high-precision digital sensor;

11. Zero point tracking: can be manually or automatically cleared, and dynamic zero point tracking is possible.

In terms of application scope, carton package conveyor check weighers can generally meet the requirements of weighting and sorting of most daily products, and are fully applicable to net content unqualified detection, missing packages/missing pieces and other missing detection; while large-scale automatic packaging checkweighers mainly detect large-volume and heavy-weight whole-box products, such as whole-box missing bottles detection, whole-box missing cans detection and other missing parts detection; in the application fields with high requirements for weighting accuracy such as pharmaceuticals and precision parts, Shanghai Shigan's high-speed and high-precision checkweighers are generally selected, and their counterweight digital weight sensors are more accurate in the correction of dynamic weight.

应用行业 (2).jpg

Large Carton Package Conveyor Belt Check Weigher Wide Range Checkweigher

checkweigher details.jpg

If the product specifications do not meet the requirements, please contact us by inquiry or chat with me to meet the customized needs.

What aspects should be considered when choosing a suitable carton package conveyor check weigher:

1. Weighing range selection:

2. Accuracy selection

3. Speed selection

4. Rejection method selection

5. Other requirements

Large Carton Package Conveyor Belt Check Weigher Wide Range Checkweigher

1. Inner packing is plastic film, outer is wooden or plywood box

2. Only plastic film bare packing with plastic pallet.

3. We can provide fumigation packing and certificate.

4. Shipping, train, express or as per customer's requirement.

5. Port: Shanghai

Pre-sales service

1. Test customer engineer, learn how to use the carton package conveyor check weigher.

2. Use product samples and our carton package conveyor check weigher.

3. Test machine video, will be sent to customers, then, pay the balance to us.

After-sales service

1. Manual.

2. Adjustment, setting video, maintenance

3. Telecommunications. Or face-to-face online communication is available.

4. This machine is warrantied for one year. During the warranty period, if there is no man-made damage, we will replace a new one for you. The warranty period will start from the time the machine is shipped and the bill of lading is obtained.
