Metal Detector For Tablets/Capsules Production Pharmacy Metal Detection Machine
The metal detector for tablets/capsules is designed to detect metal contaminants in free-falling bulk materials, with flexible operating height, angle and frame, equipped with lockable castors, it can be easily integrated into any production facility. This pharmacy metal detection machine can be used in conjunction with any model of tablet press, capsule filling machine, or as a stand-alone unit. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

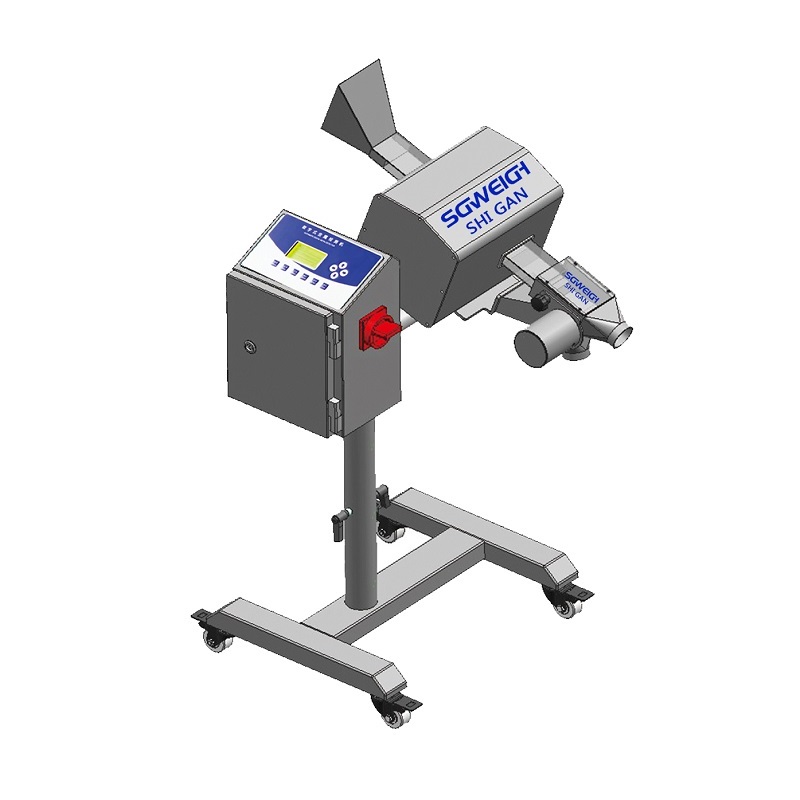

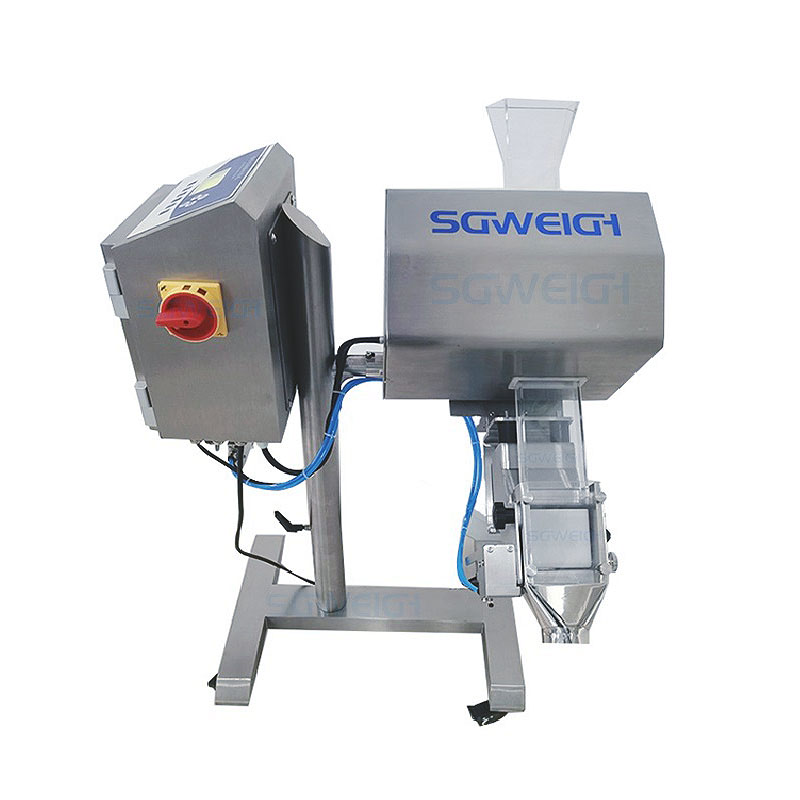

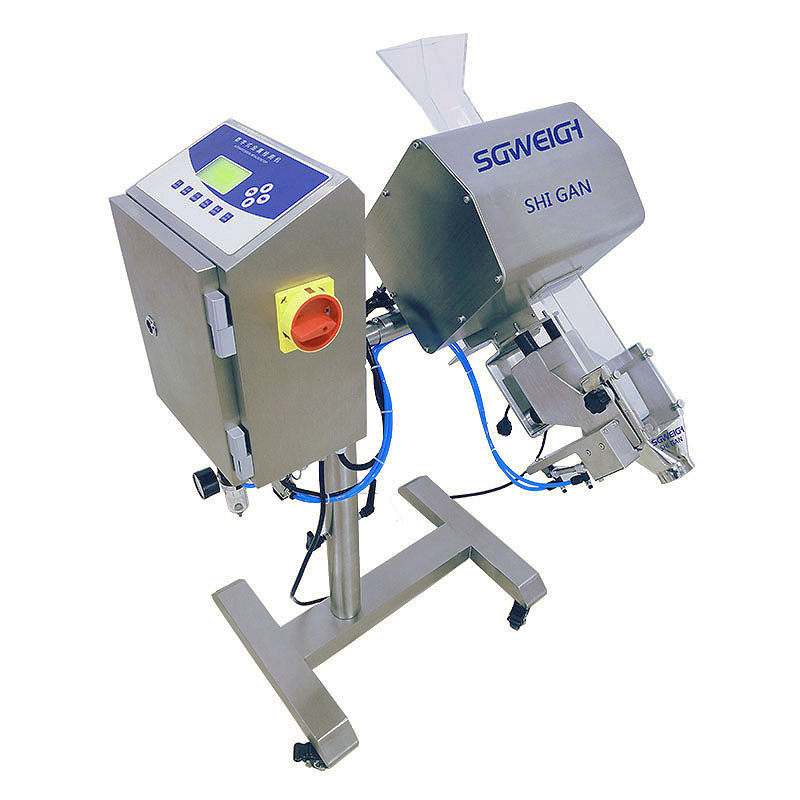

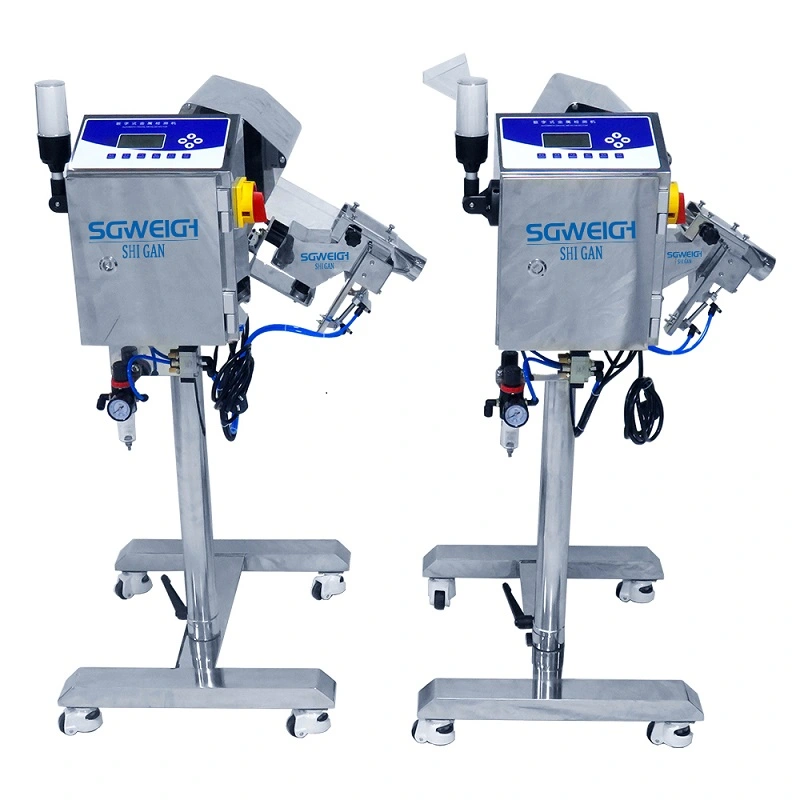

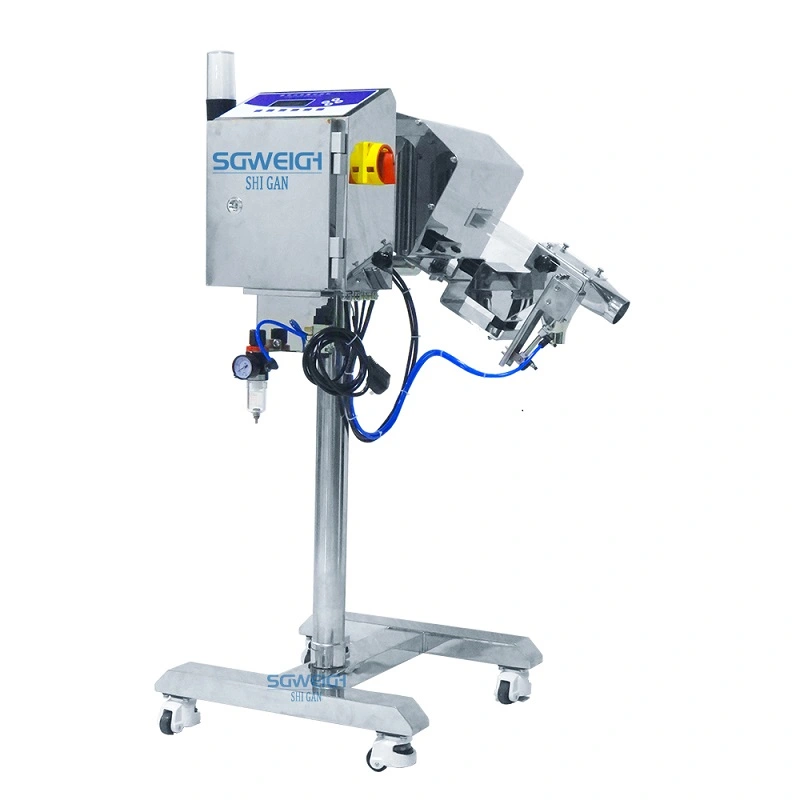

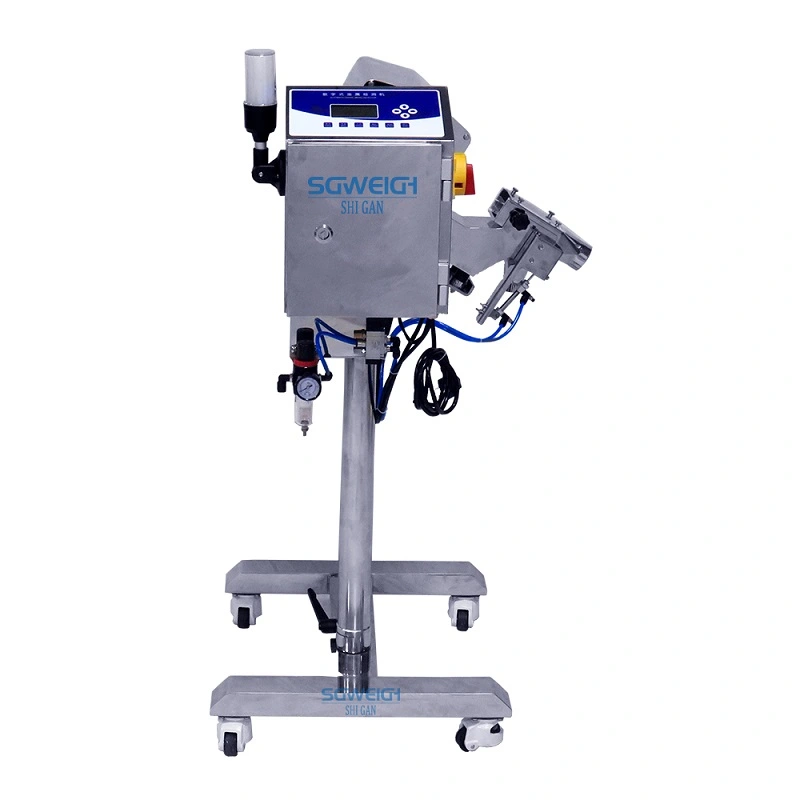

Metal detector for tablets/capsules pictures
1. This metal detector for tablets/capsules is used to detect metal impurities in tablets and capsules after tableting and dust removal processes
2. Can detect all metal impurities, including ferrous metals (Fe), non-ferrous metals (copper, aluminum, etc.) and stainless steel
3. LCD touch screen control, friendly user interface, support multiple languages
4. Multiple detection frequencies are available, and different frequencies can be used according to different product effects
5. With self-learning function, the metal detector will automatically collect product information and recommend suitable detection parameters for each product
6. Advanced DSP technology greatly improves detection performance. Leading genetic algorithm will effectively suppress product signals to achieve reliable sensitivity
7. Can store about 100 product data, suitable for detecting production lines of multiple products

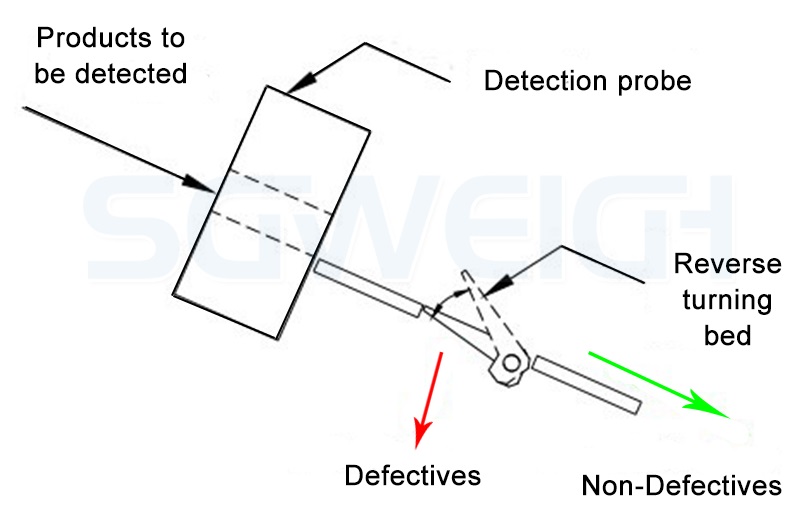

8. Equipped with automatic slapping rejection system (controlled by pneumatic solenoid valve), unqualified products will be automatically rejected
Type: SG-YJ60
Inter Height: H 770-930mm; Port size: φ76mm
Outer Height: H 770-860mm; Port size: φ51mm
Effective passing size: W70*H20mm
Output Capacity: 50w pcs/h
Detection sensitivity: φ Fe 0.4mm;φ SUS 0.6mm
Deadweight of machine: 75kg
Rejection Way: Flip Culling
Working powder supply: 220v/110v, 50/60Hz
Dimension: 1115*550*(1280-1440)mm
Metal detector for tablets/capsules are suitable for all types of tablets and capsules and can be easily calibrated.
Metal Detector For Tablets/Capsules Production Pharmacy Metal Detection Machine
Flexible metal detector for tablets/capsules solutions
Customized according to specific requirements based on production line space, speed, detection accuracy, and impact on materials.
Machine packing :
Non-fumigation wooden case for export standard and comply with customs clearance requirement
Lead time :
10-15 days after payment received
Price term :
FOB term, CIF/CFR term(sea/air), DDU/DDP term( sea/air)
Negotiable payment term: T/T , LC, D/P ,D/A .,etc
Metal Detector For Tablets/Capsules Production Pharmacy Metal Detection Machine
Pre-sale service
1. Test customer engineer, learn how to use the machine.
2. Use product samples with our machine.
3. Test machine video, will send to customer, then, pay the balance to us.
After-sale service
1. Manual.
2. Adjustment, setting video.
3. Telecommunication. Or face-to-face online communication is available.
4. This machine has a one-year warranty. During the warranty period, if there is no man-made damage, we will replace a new one for you. The warranty period will start from the machine shipped out and get the bill of lading.
