sku:

The milligram capsule tablet online checkweigher can weigh each capsule with high accuracy, classify the capsules into qualified and unqualified parts according to the preset standards, and print data statistics reports at the same time. The super accuracy capsule tablet checkweigher adopts advanced technologies such as high-speed sensors and precision weighing mechanisms to obtain accurate and reliable results in real time, thereby improving the operational efficiency and product integrity of pharmaceutical production facilities.

tag:

Description

Milligram Capsule Tablet Online Checkweigher Super Accuracy Checkweigher

The milligram capsule tablet online checkweigher can weigh each capsule with high accuracy, classify the capsules into qualified and unqualified parts according to the preset standards, and print data statistics reports at the same time. The super accuracy capsule tablet checkweigher adopts advanced technologies such as high-speed sensors and precision weighing mechanisms to obtain accurate and reliable results in real time, thereby improving the operational efficiency and product integrity of pharmaceutical production facilities. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

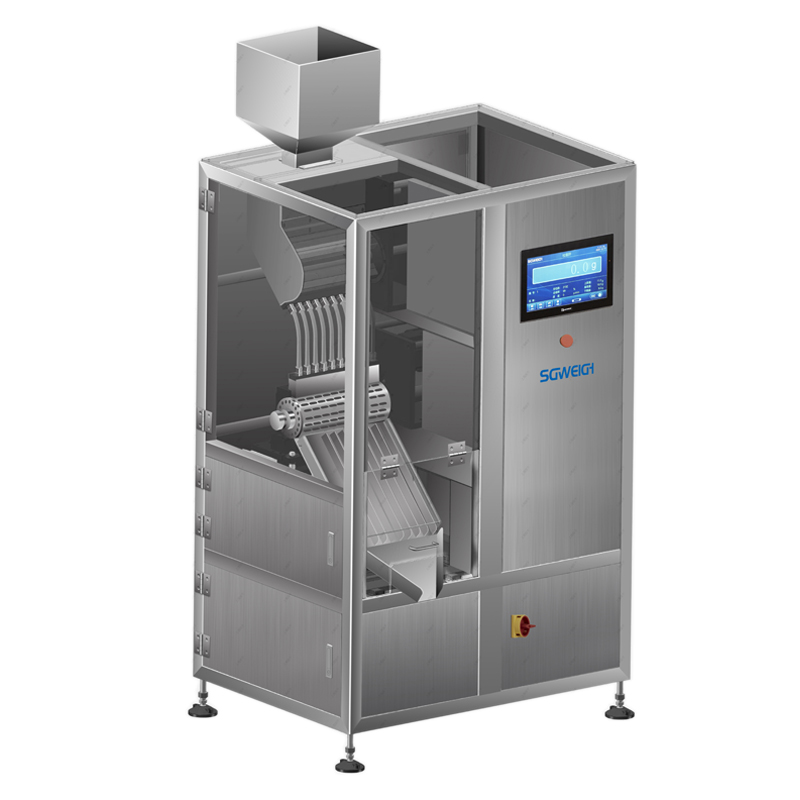

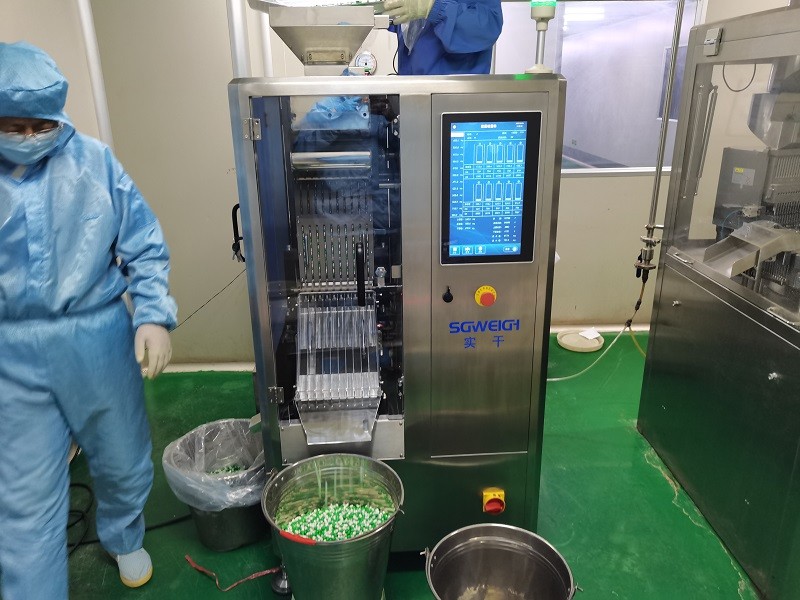

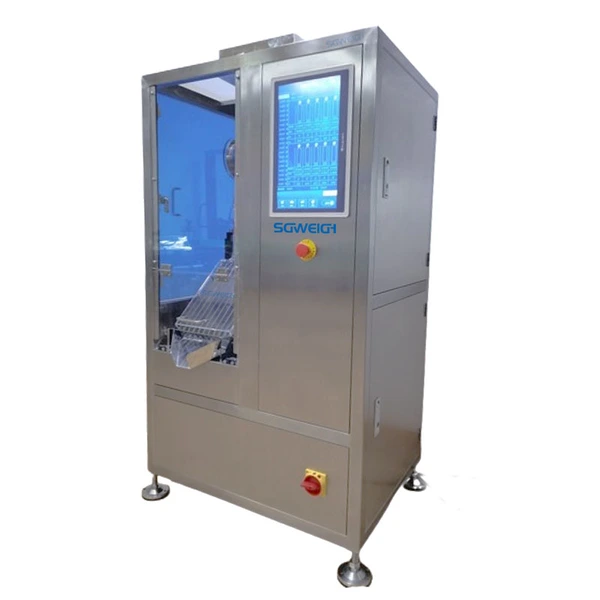

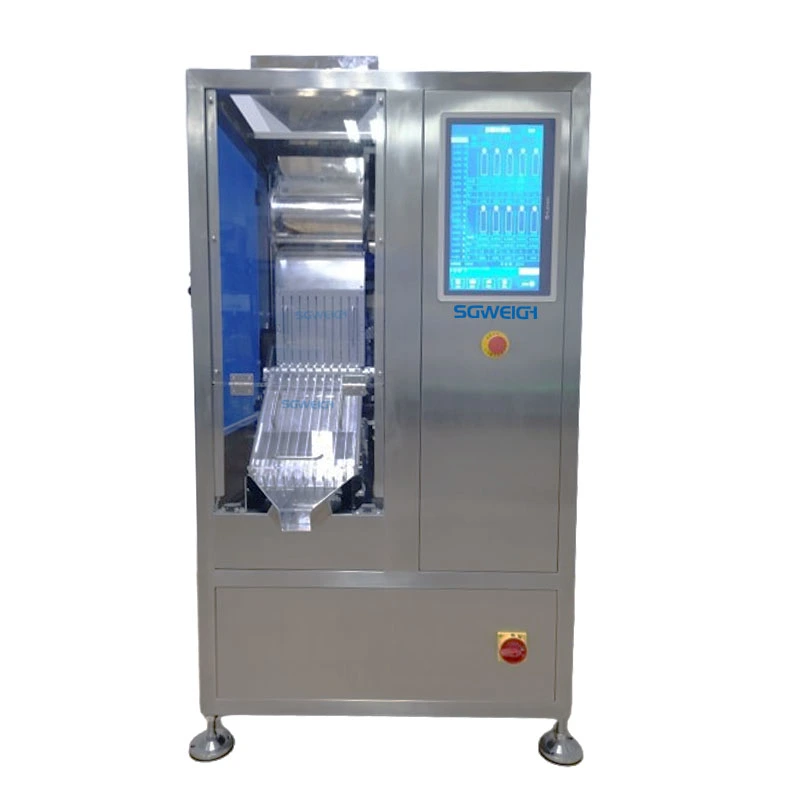

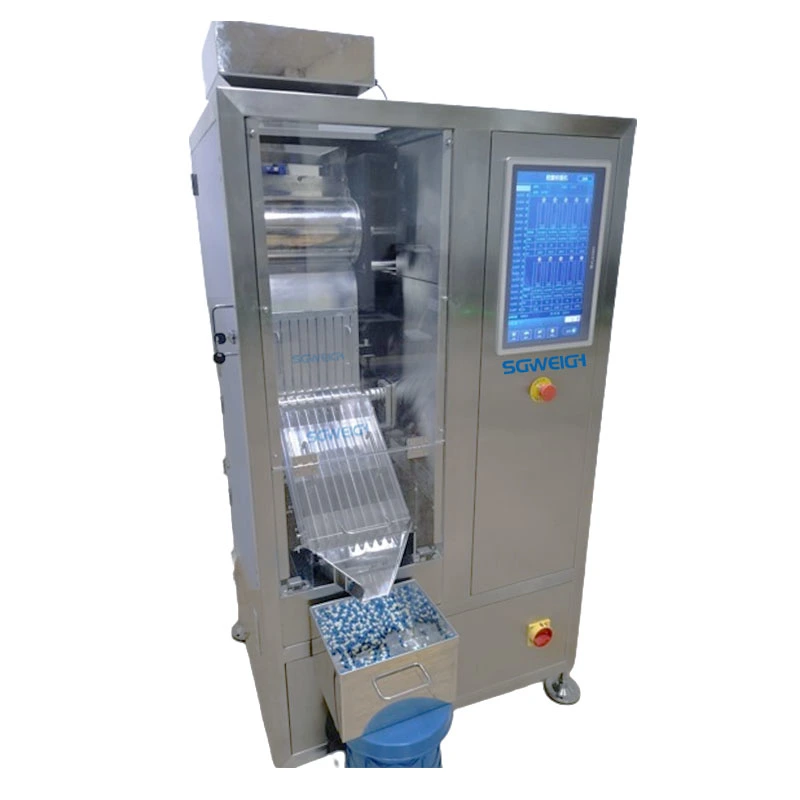

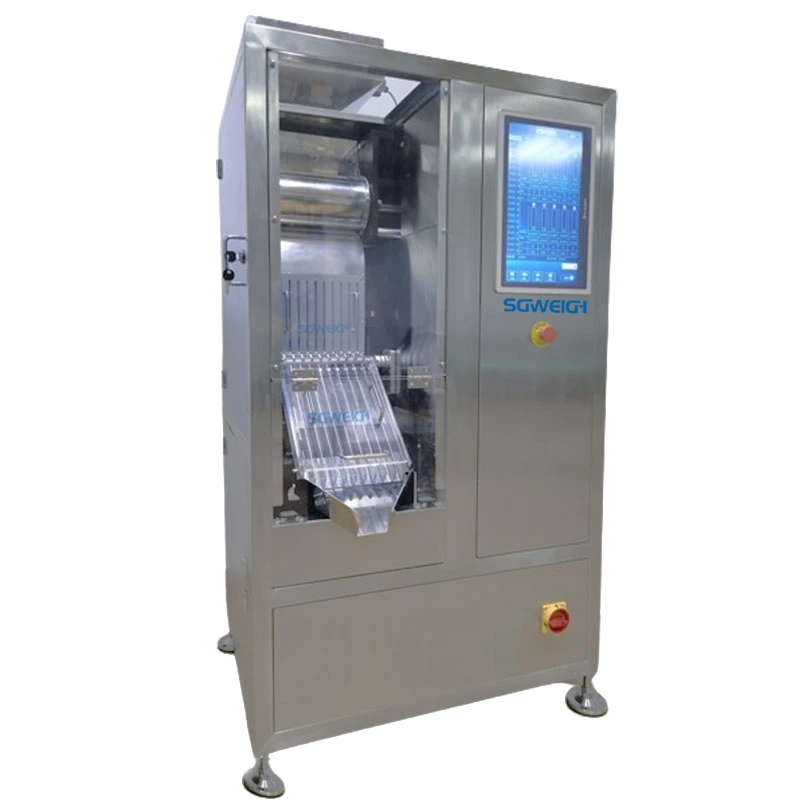

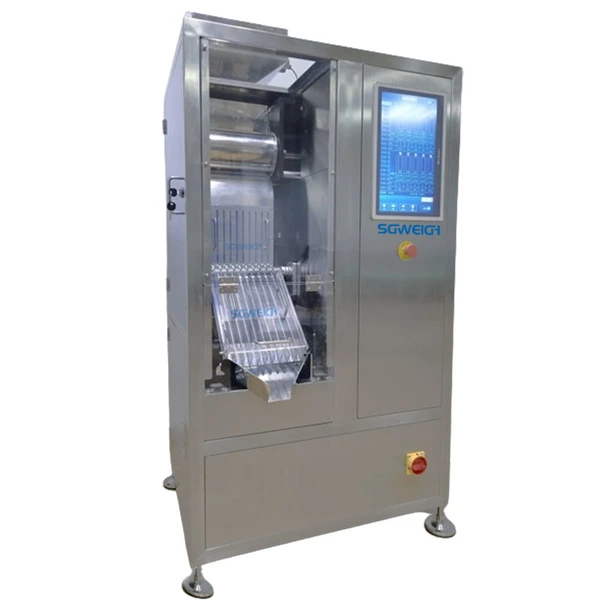

Milligram capsule tablet online checkweigher photos

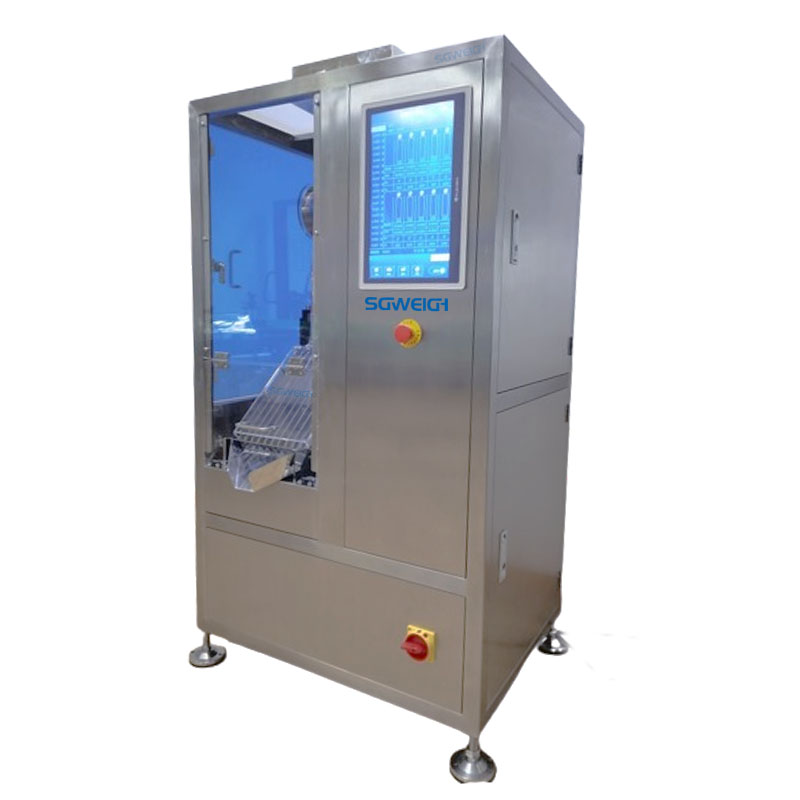

Milligram Capsule Tablet Checkweigher

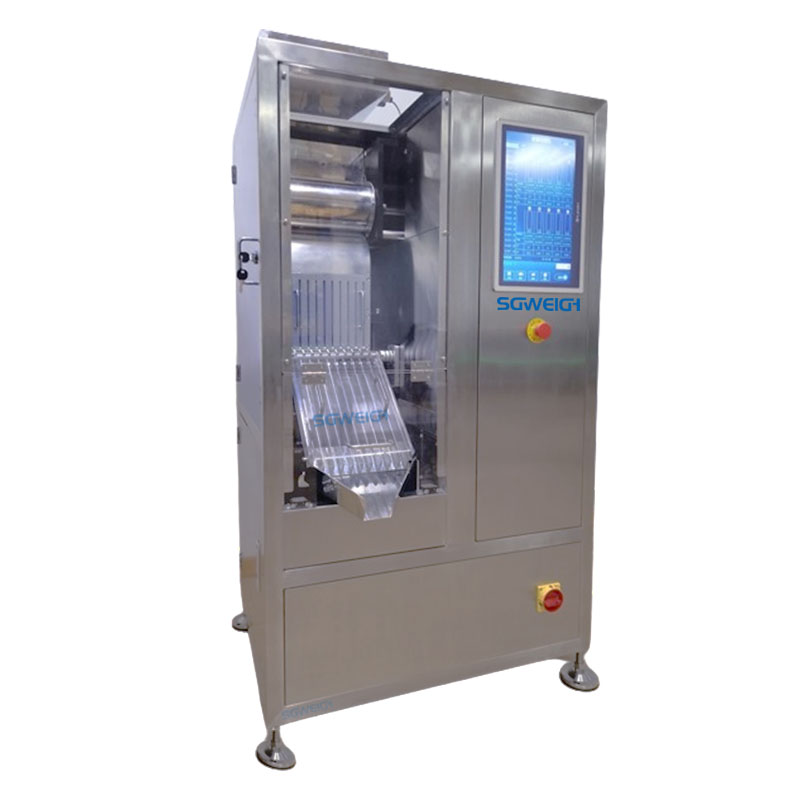

Capsule Tablet Super Accuracy Checkweigher

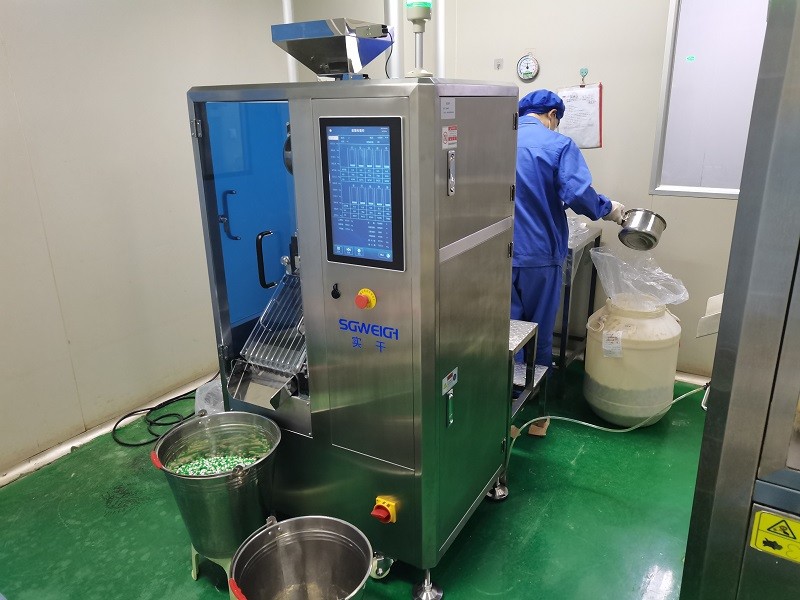

Capsule Tablet Online Checkweigher

Equipment model CM is ±1.0-2000

Design capacity 2000 tablets/minute (120,000 tablets/hour)

Actual capacity >120,000 tablets/hour

Weighing scale 10~2000mg

Resolution 0.1mg

Dynamic accuracy ±1.0mg (actual operation accuracy ±1.0mg, minimum ±1.5mg)

Applicable materials Capsules 000#~5#, conventional tablets

Working voltage AC220V/50Hz

Control voltage DC24V

Rated power 0.6KW (main machine 0.3kw, each single machine 0.15kw)

Working pressure 0.6~0.8 Mpa

Gas consumption 0.1m³/min

Equipment weight 200kg (main machine 60kg, single machine 70kg)

Overall dimensions 740*350*1480mm (main unit width 350mm, stand-alone unit width 190mm)


1. Can actually display the relevant data of each channel

2. Three-level operation authority management, support self-set password

3. 100 product formulas are preset and stored

4. All channels can be cleaned without disassembly

5. Multi-channel product delivery improves production efficiency (the number of channels can be customized)

6. The capsules put into the feed hopper are divided into multiple lanes by the silo for high-speed transportation, weighing and sorting.

7. Improve the reliability and environmental flexibility of capsule handling.

8. Can handle a variety of capsules.

9. Ensure accurate detection and reliably reject products with inappropriate weight.

High-Speed Capsule Checkweigher With 1mg Accuracy High Stability Weighing Machine

Milligram capsule tablet online checkweigher is suitable for ordinary capsules and tablets.

capsule tablets.jpg

If you have any needs in this milligram capsule tablet online checkweigher, you can click online communication or send us an email. Our company can provide customized capsule and tablet checkweigher equipment according to the user's production and application environment requirements, which can be perfectly integrated with the existing production line.

High-Speed Capsule Checkweigher With 1mg Accuracy High Stability Weighing Machine

1. Waterproof PO film + wooden box

1) Dust removal and cleaning

2) Lubricate transmission parts

3) Divide the machine into modules

4) Wrap the modules with plastic film

5) Pack the modules into plywood boxes

6) Mark the box with shipping marks

2. According to the customer's packaging requirements.

1. Pre-sales consultation

We will help you customize the appropriate milligram capsule tablet online checkweigher solutions according to your requirements and specific circumstances.


2. Installation service

We will dispatch professional technicians to perform on-site installation and commissioning as needed.


3. Maintenance service

Shigan provides long-term maintenance services, providing any repair parts free of charge during the warranty period, and only charges after the warranty period expires.


4. Employee training

Shigan provides free technical training for our customers to fully master the correct product maintenance technology.
