Multi-lane Conveyor Capsule Tablet Checkweigher With High Precision Reject

Description

Multi-lane Conveyor Capsule Tablet Checkweigher With High Precision Reject

Automatic checkweigher as known as online check weigher, weight checker, check weighing machine, check weight machine, weigt checking machine, weight sorting machine, and etc,.

Multi-lane conveyor capsule tablet checkweigher is a device that can achieve high-speed and high-precision weighing under online and dynamic conditions, and automatically sort out products that are too light or too heavy. The capsule tablet checkweigher with high precision adopts a dedicated data acquisition board combined with a touch screen, which not only ensures high-speed data acquisition and processing, but also ensures the flexibility and convenience of PLC system control, thereby providing customers with a more humane and production-oriented solution. To know more about us, please you do not hesitate to contact us or visit our factory.

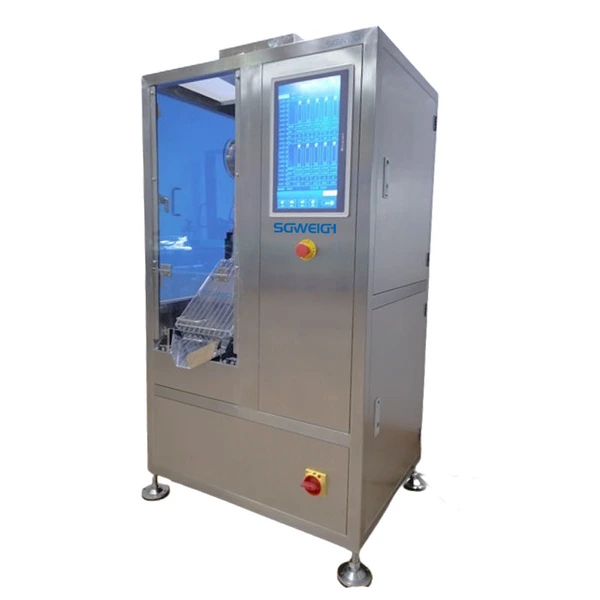

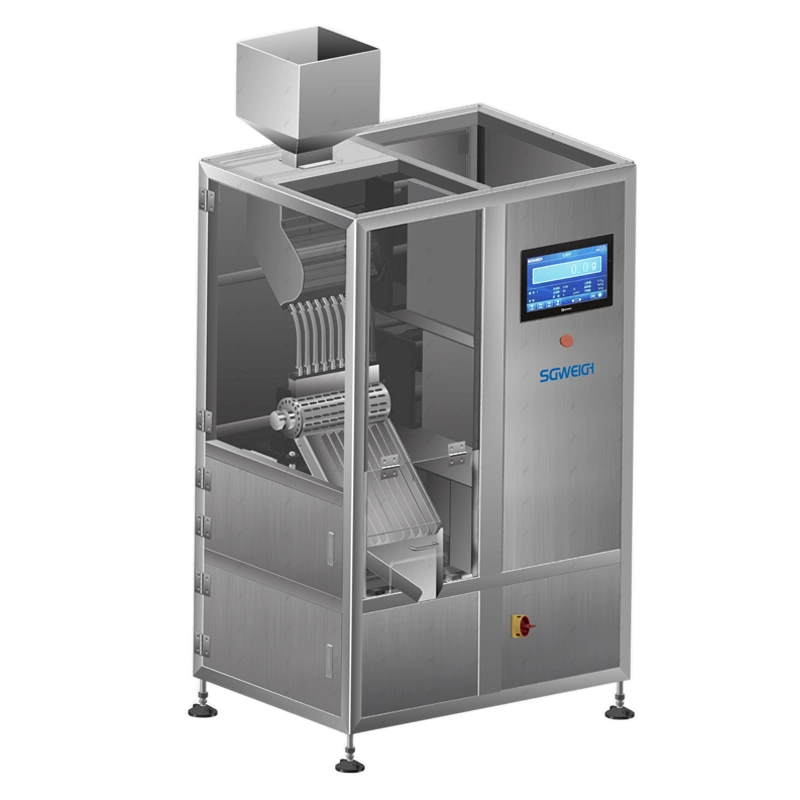

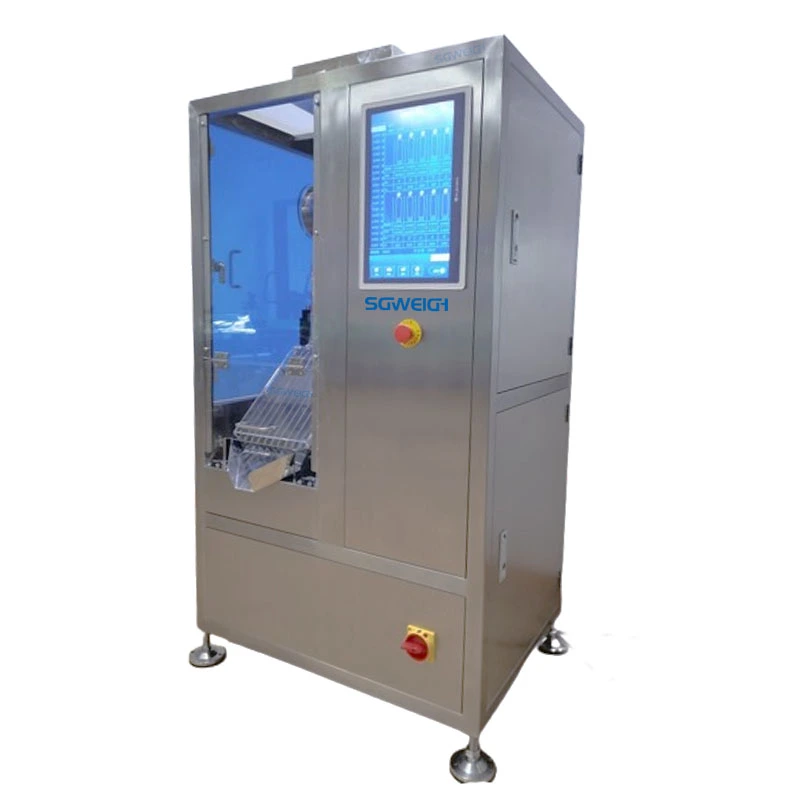

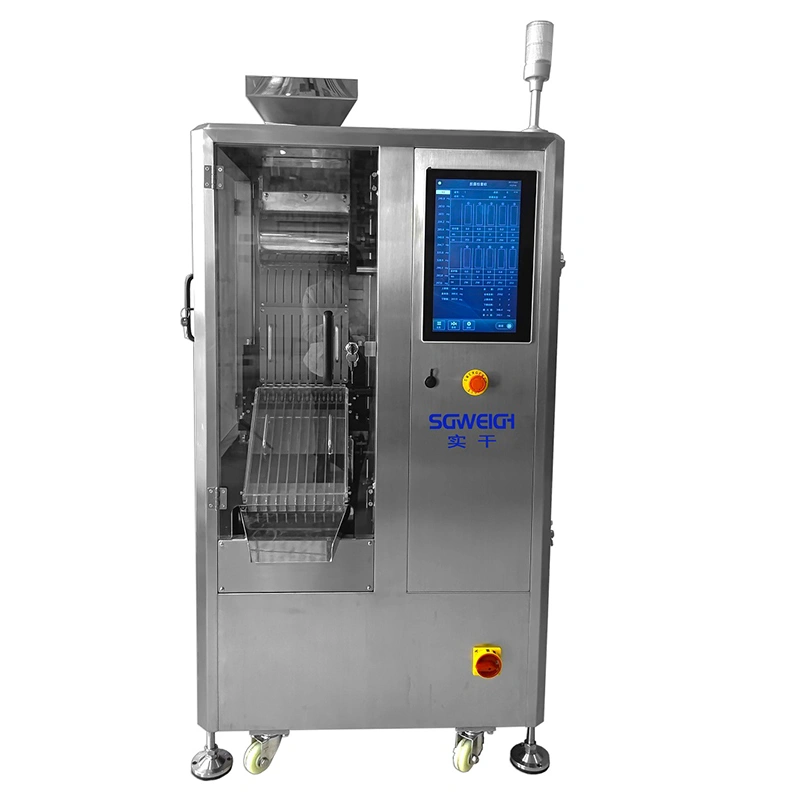

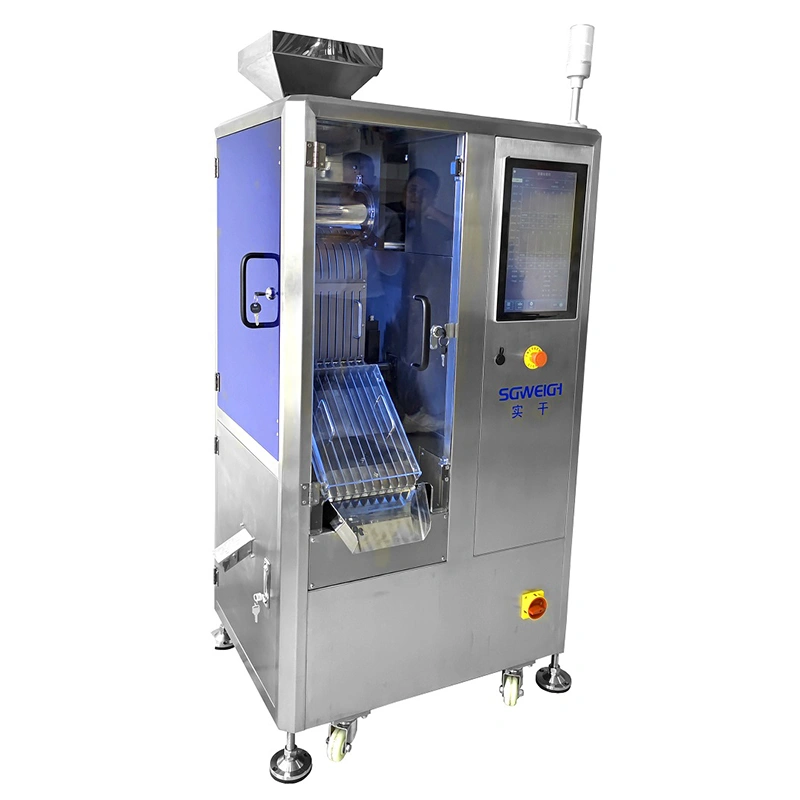

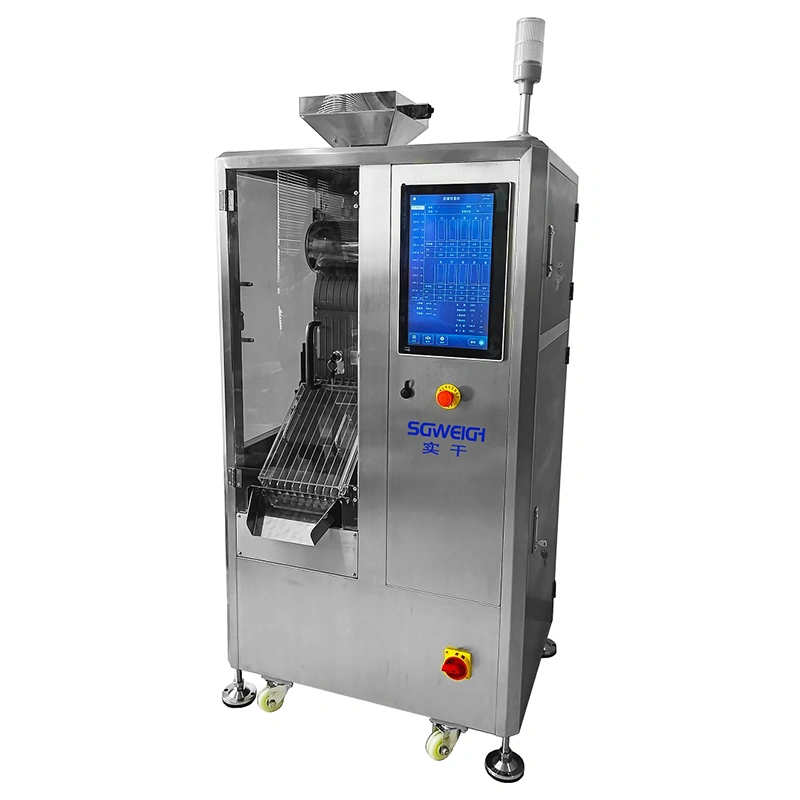

Multi-lane conveyor capsule tablet checkweigher pictures

Multi-lane Conveyor Capsule Tablet Checkweigher

Capsule Tablet Checkweigher With High Precision

Capsule Tablet Checkweigher

Type：SG-JN10/SG-JN20/SG-JN30

Weighing scope :5-2000mg

Display scale：0.1mg

Highest sorting accuracy:±0.5mg

Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)

Highest sorting ability :75000 PCS/HR/150000 PCS/HR/230000 PCS/HR

Number of columns:10 Columns/20 Columns/30 Columns

Power supply:AC-220V±10%, 50HZ

Compressed air:0.3-0.9Mpa

Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Hunidity:30-70%(but no condensation)

Weight of Machine :350kg/500kg/700kg

Shell material:SUS304

You can select the best suitable model depending on the production volume.


Multi-lane Conveyor Capsule Tablet Checkweigher With High Precision Reject


Multi-lane conveyor capsule tablet checkweighers are key testing equipment on the production line and involve different fields. If the product specifications do not meet the requirements, please contact us by inquiry or chat with me to meet the customization needs. We can also introduce the factory and machines to you through live broadcast. Our team will tailor it for you.

1. Large screen display, clear and easy to understand, easy to operate.

2. Chinese and English interface (customizable in multiple languages).

3. Suitable for ordinary capsules and tablets.

4. Can truly display the relevant data of each channel.

5. Three-level operation authority management, support self-set password.

6. Can store 100 types of data, powerful data statistics function.

7. All channels can be cleaned without disassembly.

8. Multi-channel delivery of products to improve production efficiency (number of channels can be customized).

Multi-lane conveyor capsule tablet checkweigher is widely used in the pharmaceutical industry to ensure that each capsule, tablet or pill contains the correct weight.

capsule tablet pill.jpg

Multi-lane Conveyor Capsule Tablet Checkweigher With High Precision Reject

1. Waterproof PO film + wooden box

1) Dust removal and cleaning

2) Lubricate transmission parts

3) Divide the machine into modules

4) Wrap the modules with plastic film

5) Pack the modules into plywood boxes

6) Mark the box with shipping marks

2. According to the customer's packaging requirements.

Q1: What is machine warranty?

Machine warranty for one year. During the warranty period, any non -vulnerable part of the machine is damaged. We will replace it for you for free. After the warranty date is issued by the machine, we receive the bill of lading.

Q2: I have never used this capsule tablet checkweigher. How can I control it?

1. Each machine has related operation descriptions.

2. Our engineers can operate through video demonstrations.

3. We can send engineers to on -site teaching. Or welcome you FAT before installation.

Q3: Will you show us the following details when inquiry?

We can.

1. Product size (description/photo/sample can be)

2. accuracy

3. Speed

4. Other requirements
