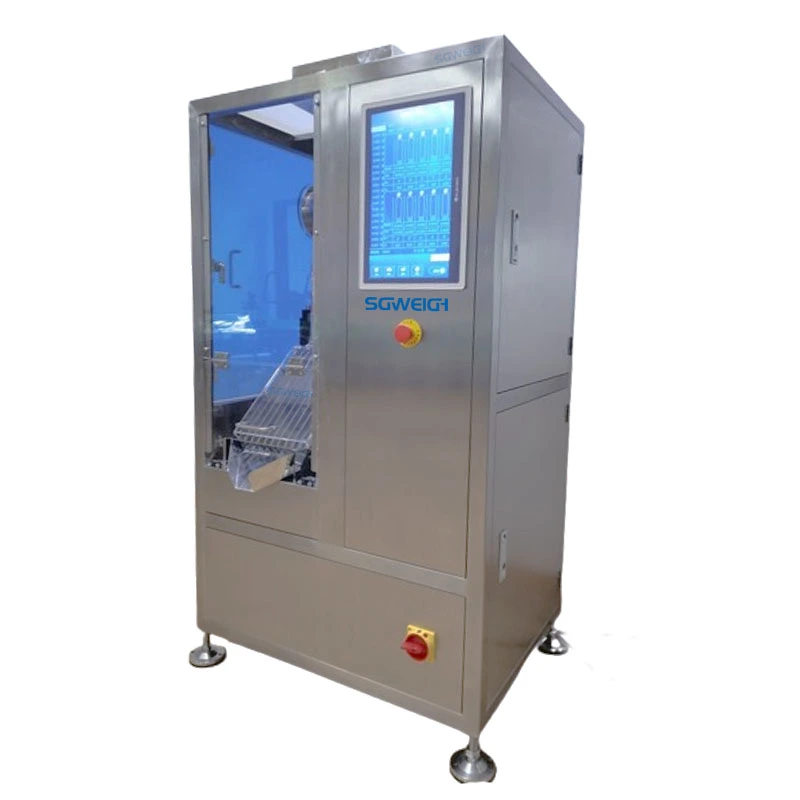

Pharma Capsule Weight Inspection Checkweigher Online Tablet Check Weigher
The gentle handling mechanism of pharma capsule tablet checkweigher prevents product damage, while the automatic rejection system ensures that only correctly weighed products pass inspection. Whether placed before or after blister packaging, or used in conjunction with a tablet press, this online capsule weight inspection checkweigher can meet your specific production needs. With its touchscreen interface and user-friendly controls, your team can perform checkweights efficiently, minimizing training time and maximizing productivity. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

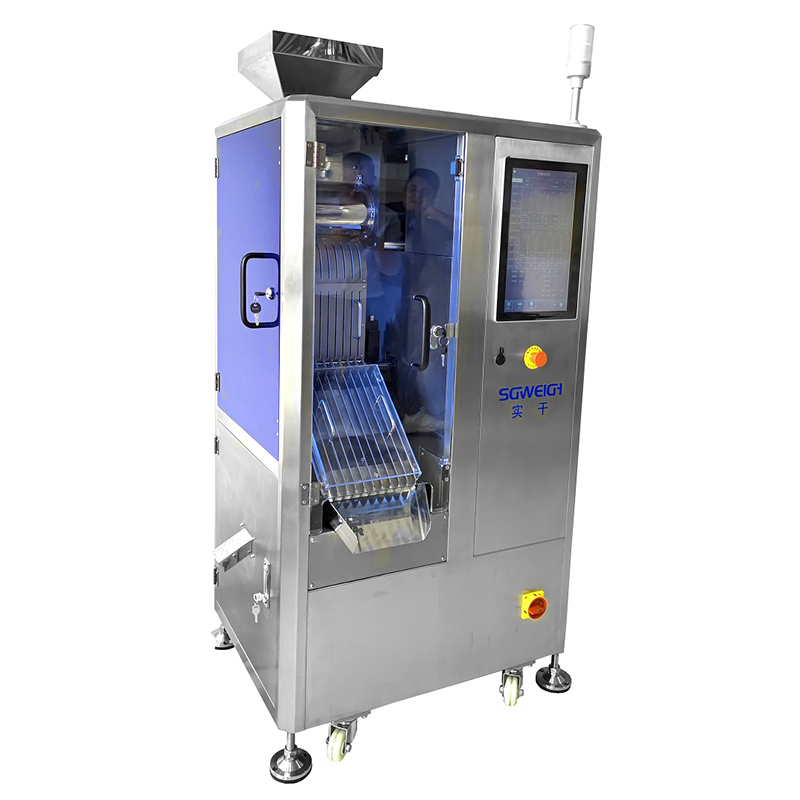

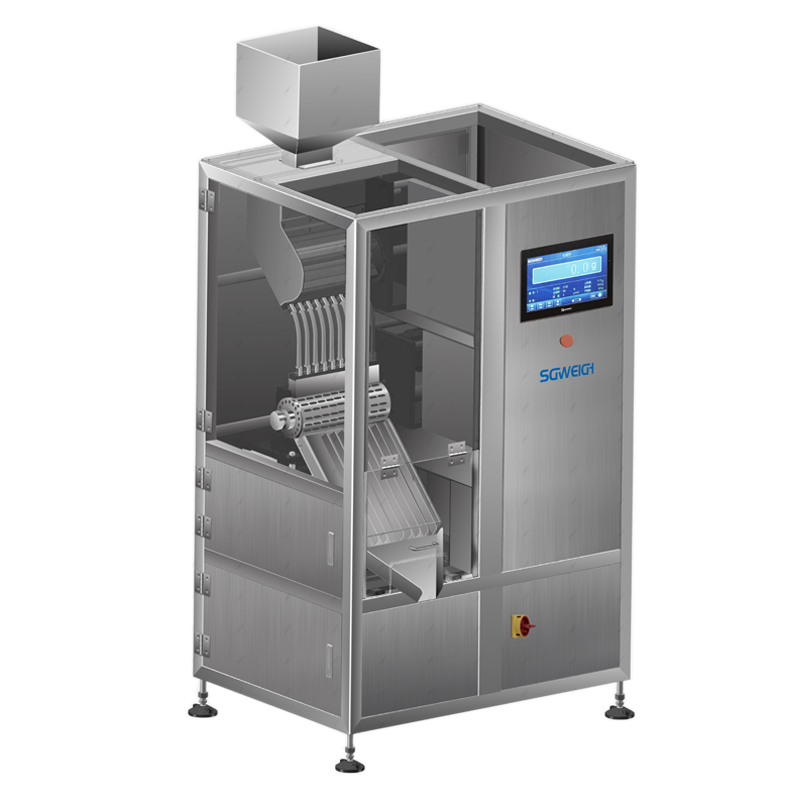

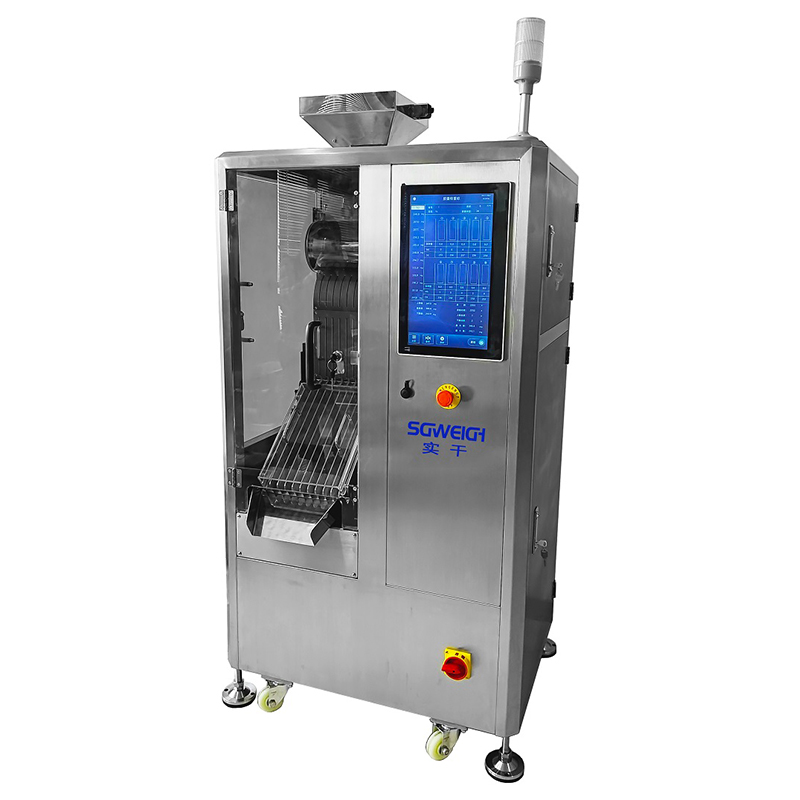

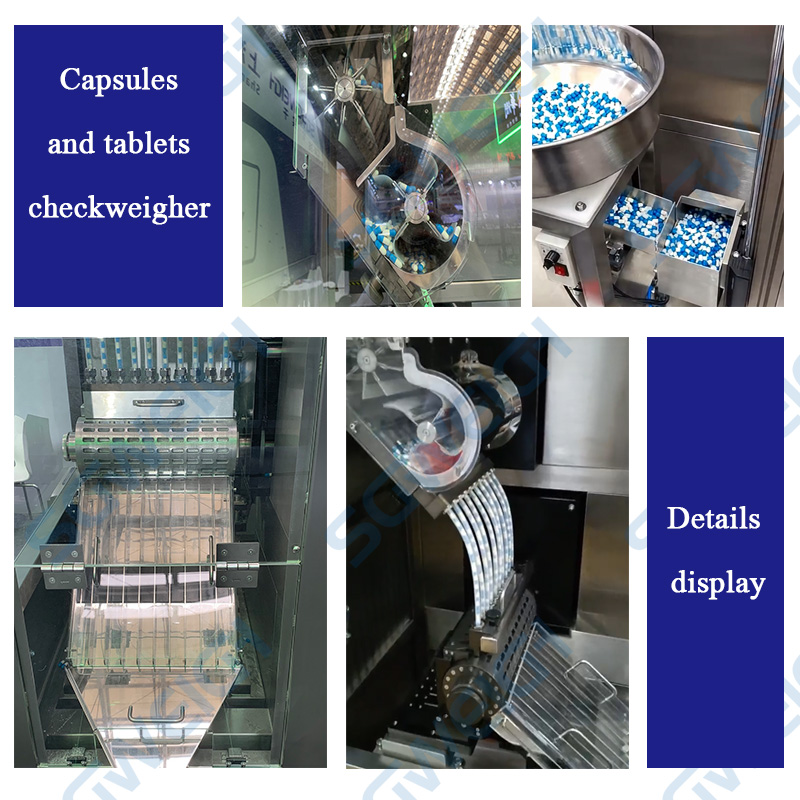

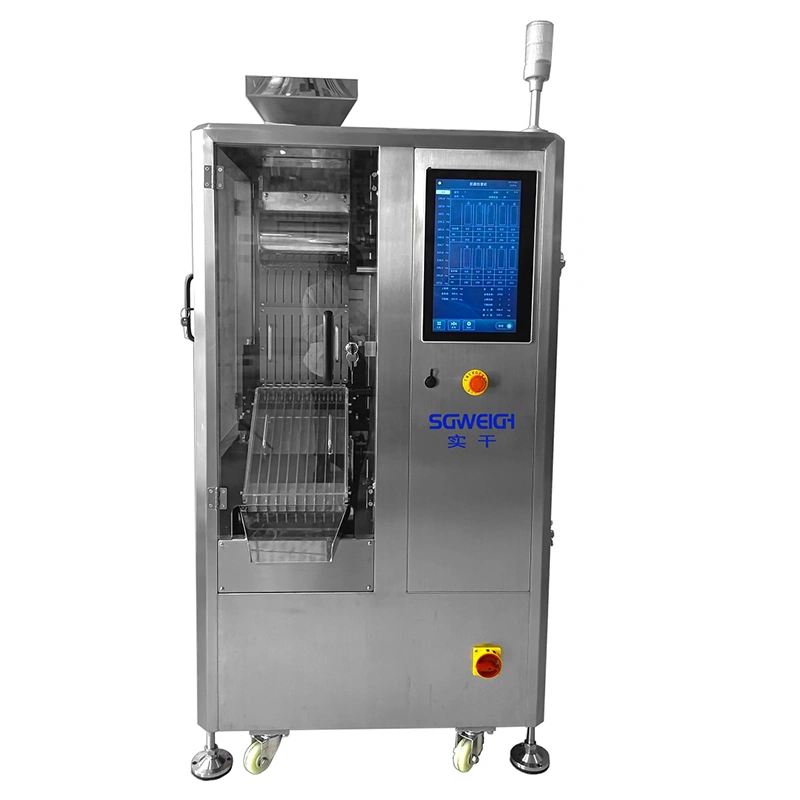

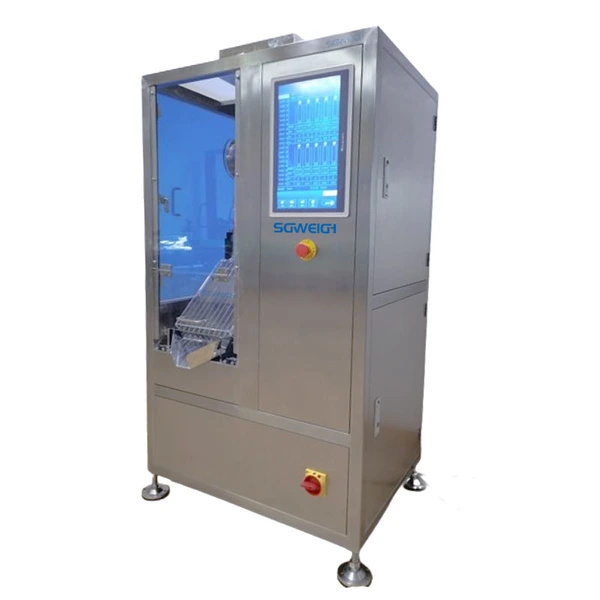

Pharma capsule tablet checkweigher photos
Type：SG-JN10/SG-JN20/SG-JN30
Weighing scope :5-2000mg
Display scale：0.1mg
Highest sorting accuracy:±0.5mg
Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)
Highest sorting ability :75000 PCS/HR/150000 PCS/HR/230000 PCS/HR
Number of columns:10 Columns/20 Columns/30 Columns
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Hunidity:30-70%(but no condensation)

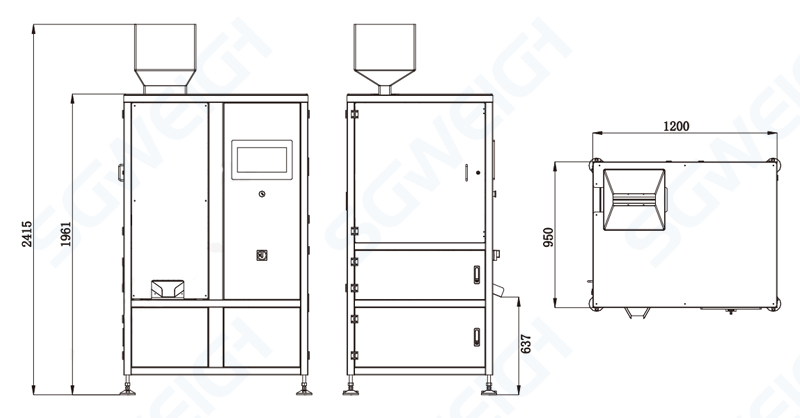

Weight of Machine :350kg/500kg/700kg
Shell material:SUS304
You can select the best suitable model depending on the production volume.
Flexibility to accommodate capsules of different sizes: By adjusting the weighing mechanism or using various conveying systems, the pharma capsule tablet checkweigher can be configured to handle capsules of different sizes, from small gel capsules to large tablets.
1. Precision and Accuracy: pharma capsule tablet checkweighers are designed to weigh each capsule with high accuracy and precision, with tolerances typically tight to ±0.1 mg.
2. High-Speed Operation: These systems can run at very high speeds, weighing up to 75,000 (10 lanes) capsules per hour. This makes them ideal for large-scale production environments where throughput is critical.
3. Automatic Rejection System: Capsules that are underweight, overweight, or out of specification are automatically rejected from the production line using a reject mechanism.
3. Integration with Packaging Lines: online capsule weight inspection checkweighers are often integrated with other systems in the production process, such as capsule filling machines, tablet presses, etc.
4. Touchscreen Interface: pharma capsule tablet checkweighers come with a user-friendly touchscreen interface that allows operators to adjust settings such as weight tolerances, speeds, etc. without extensive training.
5. Real-Time Monitoring and Data Logging: online capsule weight inspection checkweighers can be connected to networked systems for real-time monitoring and data logging to comply with regulatory standards such as FDA and GMP.
Pharma Capsule Weight Inspection Checkweigher Online Tablet Check Weigher
The pharma capsule tablet checkweigher on display may not meet your requirements. Our company can provide customized capsule and tablet checkweigher equipment according to the user's production and application environment requirements, which can be perfectly integrated with the existing production line.
Equipment packed in export standard wooden boxes (fumigation-free) meets international transportation requirements and can ensure the safety and reliability of the equipment during transportation.
Our professional logistics team has rich experience and can handle sea, air and rail transportation for you. No matter which mode of transportation you choose, we will ensure that the goods are delivered to the destination safely and on time. At the same time, we will also provide you with customized logistics solutions according to your needs to meet your specific requirements during transportation.
Please rest assured that we will wholeheartedly provide you with high-quality services to ensure that your equipment is exported smoothly and delivered to customers in a timely manner.
Pharma Capsule Weight Inspection Checkweigher Online Tablet Check Weigher
1. Training services:
We will train your engineer to install our weigher. You can send your engineer to our factory or we dispatch our engineer to your company. We will introduce your engineer how to install the weigher and how to fix problem.
2. Trouble shooting service:
Some times if you can not fix the problem in you contry,we will seed our engineer there if you need us to support.Of course,you need to afford the round trip flight ticket and accommodation fee.
3. Spare parts relation:
For spare parts support: For machine in guarantee period,if spare part broken,we will send you the parts free and we will pay the express fee,And please send us the spare part back,when machine is out of guarantee period,we will provide you the spare parts in cost price
