Pipeline Tablet Capsule Metal Detection Machine Automatic Metal Detector
The pipeline tablet capsule metal detector has high precision, sensitivity and stability, and is designed for the detection of tablets, capsules and granules. The automatic tablet capsule metal detector system meets the hygiene requirements of the pharmaceutical industry and can be combined with all high-performance tablet presses with dust removal devices. Flexible operating height, angle and frame, equipped with lockable castors, can be easily integrated into any production facility. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

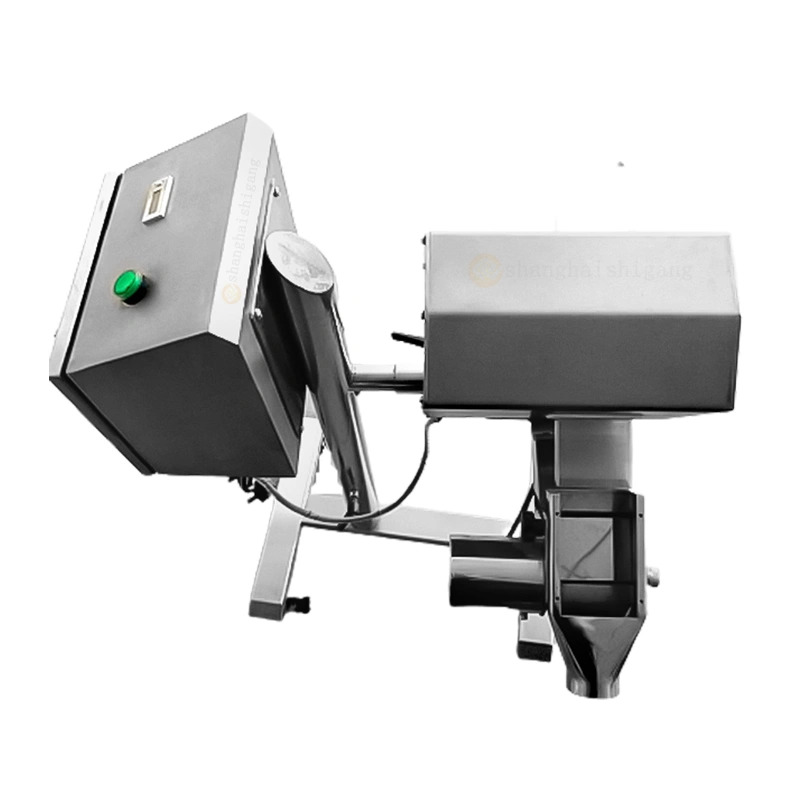

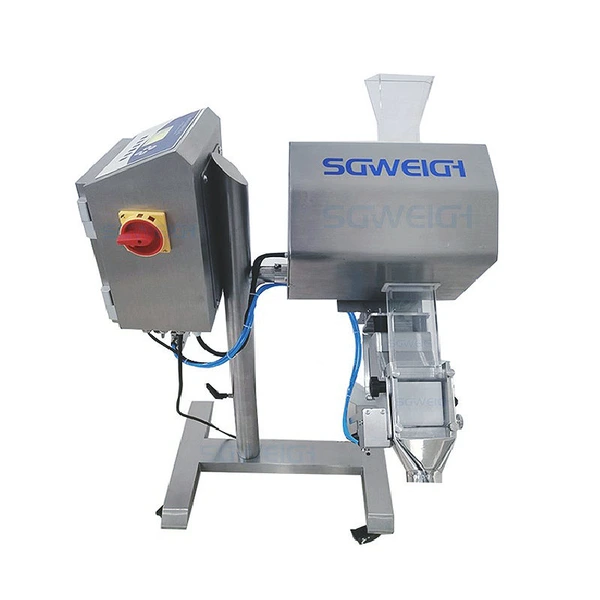

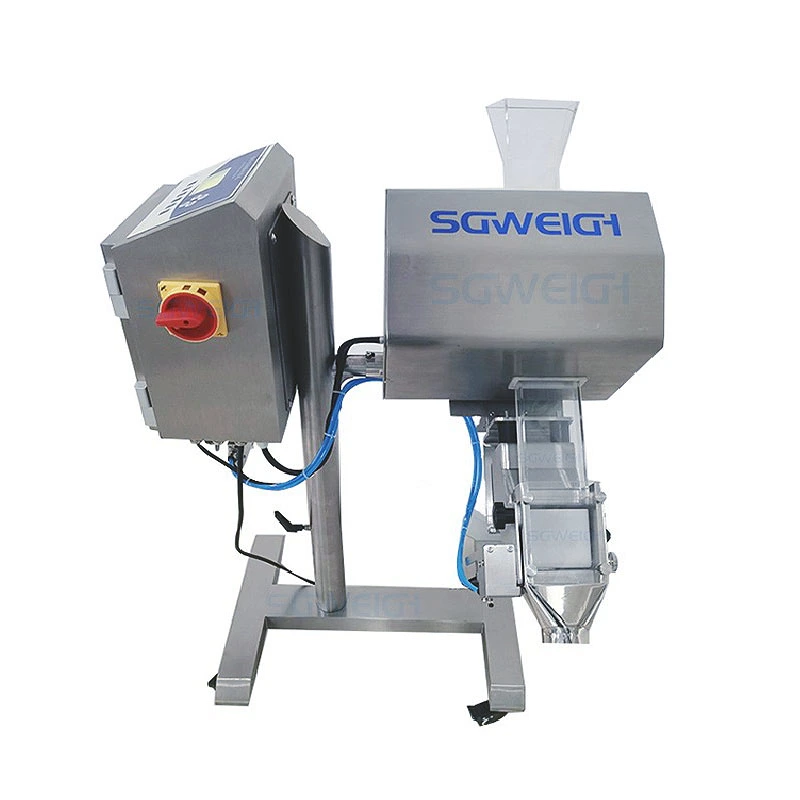

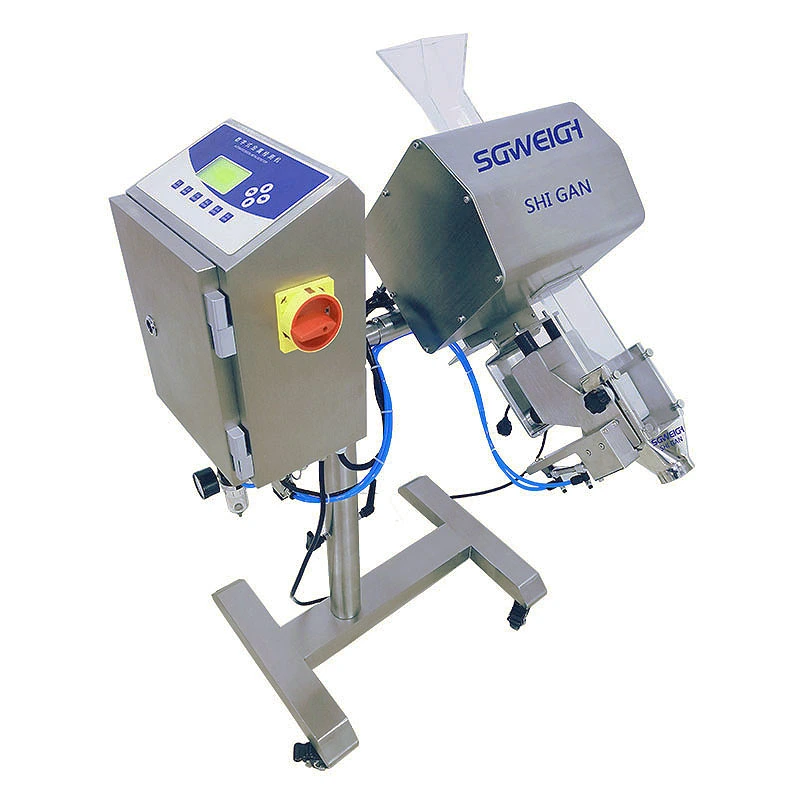

Automatic tablet capsule metal detector pictures
Feed port height and size: Height: 770-930mm Feed port size: 76mm
Height and size of outlet: Height: 770-860mm Size of outlet: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm
Machine weight: 75kg
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
Equipment dimensions: 1115*550 (1280-1400) mm
1. Adjustable sensitivity
2. The most advanced microcomputer control system with self-learning function.
3. The height and tilt angle of the manual lift table can be easily moved and cleaned, and lockable casters are installed
4. The main control components are all imported. The control menu adopts a one-button operation mode, which is easy to operate and has Chinese/English operation menus. The metal detector can memorize and supplement its functions. It has 200 product storage and 1000 accidental memories.
5. Open design, parts in contact with the product can be removed without tools within 10 seconds. No dead angle, easy to clean and wash.
6. The pipeline tablet capsule metal detector has a full body safety structure with no dead angle. The power supply is a safe 24V voltage.
7. Completely independent sensor system. Tool-free disassembly, easy maintenance and cleaning.
8. Independent control system, connected to the sensor system through a modular air plug.
9. Independent rejection unit through quick connection. No air source required.
10. Working voltage: 220/110VAC (+10%, -15%)
11. Suppression time 0.05-60 seconds adjustable
12. Protection level: IP65.
Pipeline tablet capsule metal detector is suitable for the detection and removal of magnetic and non-magnetic metal foreign bodies in tablets and capsules. Small metal fragments and wires embedded in the product can also be quickly removed online (electrically).
Our professional engineers will design the most suitable tablet capsule metal detectorr solution for your production line to meet the different needs of various complex production lines. In actual applications, we will also continuously optimize and improve the automatic metal detector solution based on the operating conditions of the production line and customer feedback to ensure that it is always in the best working condition.
Pipeline Tablet Capsule Metal Detection Machine Automatic Metal Detector
Pipeline Tablet Capsule Metal Detection Machine Automatic Metal Detector
Packaging
Film pack inside, Wooden case outside
Shipping
1. Upon receipt of payment, delivery date will be in 20-30 working days
2. By Air, by Sea or by Express (DHL, UPS, TNT, EMS, etc.)
1. Consultation and Evaluation: Understand your requirements, production processes and quality control goals to determine the best checkweigher solution for your specific needs.
2. Product Demonstration: Get a visual understanding of the equipment in action and directly evaluate its performance.
3. Installation and Commissioning: After purchase, the tablet capsule metal detector is installed and commissioned by trained technicians to ensure it operates correctly and integrates seamlessly into your production line.
4. Technical Support: Ongoing technical support is provided to resolve any questions, issues or maintenance needs that arise during the operation of the checkweigher.
5. Warranty Coverage: 1-year warranty, lifetime repairs.
We aim to provide our customers with the right solutions, support and peace of mind throughout the lifecycle of the equipment, ensuring that the checkweigher meets your needs and provides long-term value.
