Waterproof Conveyor Belt Checkweigher and Metal Detector Combo Automatic Industrial Weighing Metal Detection Machine
Automatic checkweigher metal detector combo also called checkweigher metal detector combo, check weigher and metal detector, weighing metal detector, checkweigher + metal detector, metal detector checkweigher combine, weighing metal detection, and etc,.
The automatic checkweigher and metal detector combo fully integrates automatic weight detection and metal detection technology into one solution, which can detect whether the weight is qualified or whether there are metal foreign objects. This industrial checkweigher and metal detector solution has good adaptability, small footprint, and can adapt to various spatial needs. If you have any questions or comments, please feel free to contact us.

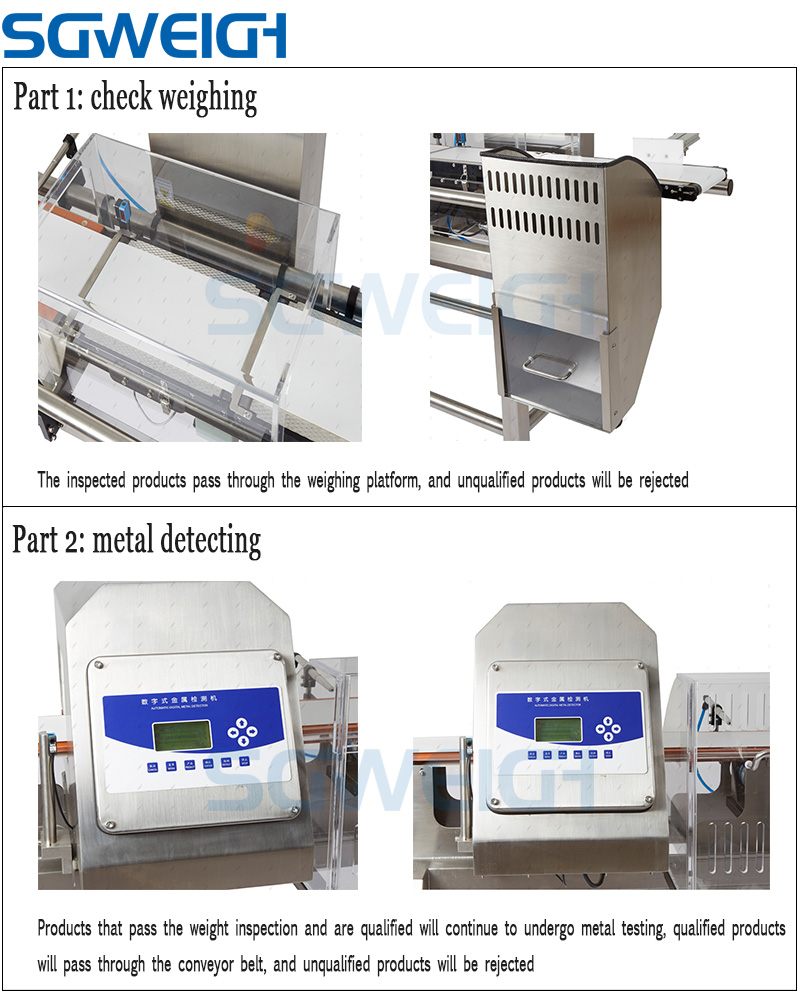

Medicine automatic checkweigher metal detector combo pictures
Type Digital Checkweigher With Metal Detector Combo
Model SG-JS150
Specifications 4010
Detection of hole width detection 150mm
Inspection hole height 100-200mm
Detection sensitivity
In empty state:(H)100mm ;Fe≥Φ0.8mm,SUS≥Φ1.2mm
(H)120mm ;Fe≥Φ1.0mm,SUS≥Φ1.8mm
(H)150mm ;Fe≥Φ1.2mm,SUS≥Φ2.0mm
(H)200mm ;Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective hole width detection 150mm
Effective hole detection level 100-200m
Weighing accuracy ±0.1g(Depend on product)
Conveyor height 750mm(±50mm)
Transmission capacity 10kg/times
Transfer direction From left to right
Conveyor belt max speed 25m/min
Material for conveyor belt Food grade PU belt
Protection grade IP65
Display and operation mode LCD flat key input
Deadweight of machine About 240kg
Power supply requirements AC 220V 50HZ
Power About 300w
The above parameters are for reference only and can be customized according to requirements
Optional
1.USB port
2.RS485/232/LAN connection port
3.Sound-light alarming lamp
1.Lightweight sructure, less floor space, easy connection with production line, high detection sensitivity and easy operation; it can save production line space to realize more quality control.
2.Advanced technology, applying the latest muti-frequency detection technology, automatic elimination of material effects, automatic balance technology and self-adaptive adjustment technology brings the industry's simplest operation, best environmental adaptability and stability to the equipment.
3.All stainless steel shock absorber structure design and production to ensure long-term stability and service life
4.Can memory 100 different products of the detection parameters, to avoid the detection error caused by artificial differences, and the downtime of the replacement product .
5.Low-power design, flseal design equipment structure ensure the protetive efect of the electronic control partis best, and the protection level reach IP65,can last more than 15 yearsHigh-precision digital load cell adopts high-speed digital filter processing and automatic zero tracking.
The automatic checkweigher and metal detector combo is a solution for end of production line inspection and quality control, often used in industries such as food, medicine, cosmetics, textiles, etc.
Shanghai Shigan Industrial Co., Ltd. is a professional enterprise that produces and sells various types of weighing scales, metal testing machines, and other equipment. The company integrates research and development, design, production, and sales business, and its products are best-selling all over the world. The company is located in Shanghai, China, and has gained a good reputation through over 13 years of experience in the production of weighing scales and metal testing machines. We will continue to focus on production in a rigorous and innovative manner, serving customers around the world. Main products:online checkweigher, automatic metal detector, weighing labeling machine, weighing metal detector, roller scale, etc.
Free export fumigation plywood box with quick connection design, easy to open and reuse;
Internal plastic film packaging can protect goods from salt, wind, or damage;
12 Months Guarantee
★ 12 months free main parts change (Please return the damaged parts by airmail)
★ Overseas engineers available (You only have to pay part of the freight)
Customization
All our machines can be customized , according to your product's features and your workshop environment, or your production line.
After-sales Service Provided
Engineers availbale to provide after-sales service overseas in order to help customers solve technical problems.
