Box Package Conveyor Belt Checkweigher Pharmaceuticals Weight Checking Machine
Checkweigher also called , check weigher, check weight machine, check weighing machine, weight sorting machine, weight sorter, weight checker, weighing machine, and etc,.
The dual channel bag checkweigher can detect whether the packaged product has overweight/underweight weight deviation abnormalities online, and can feedback information to the filling or packaging equipment to ensure that the net content of the product meets the specifications and requirements. The pharmaceutical dynamic check weigher can easily connect with all components, upstream and downstream equipment, and is simple and fast to service, install and operate. Reduce downtime and save money. Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us.

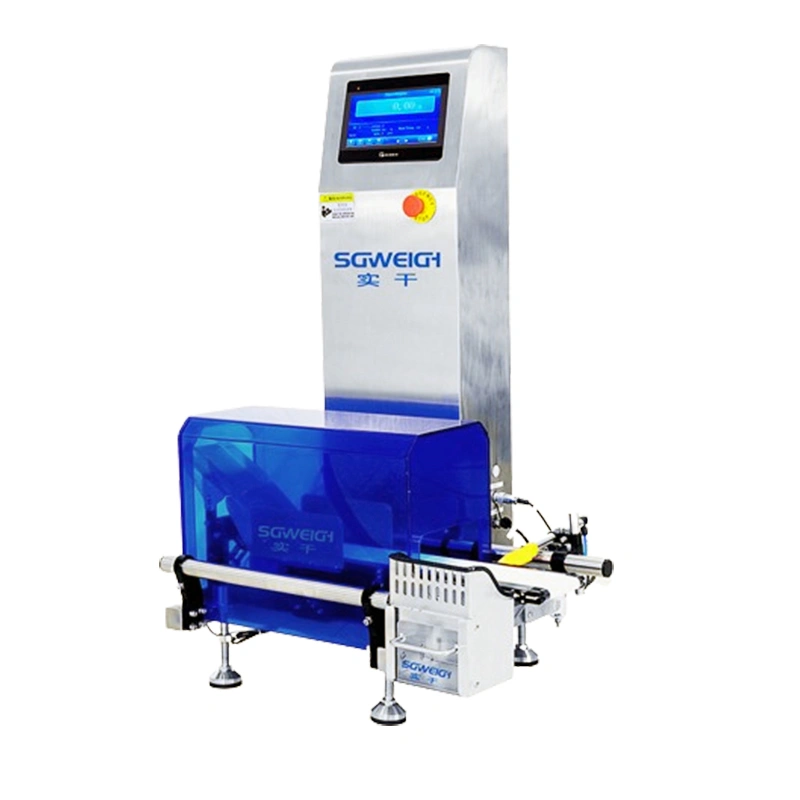

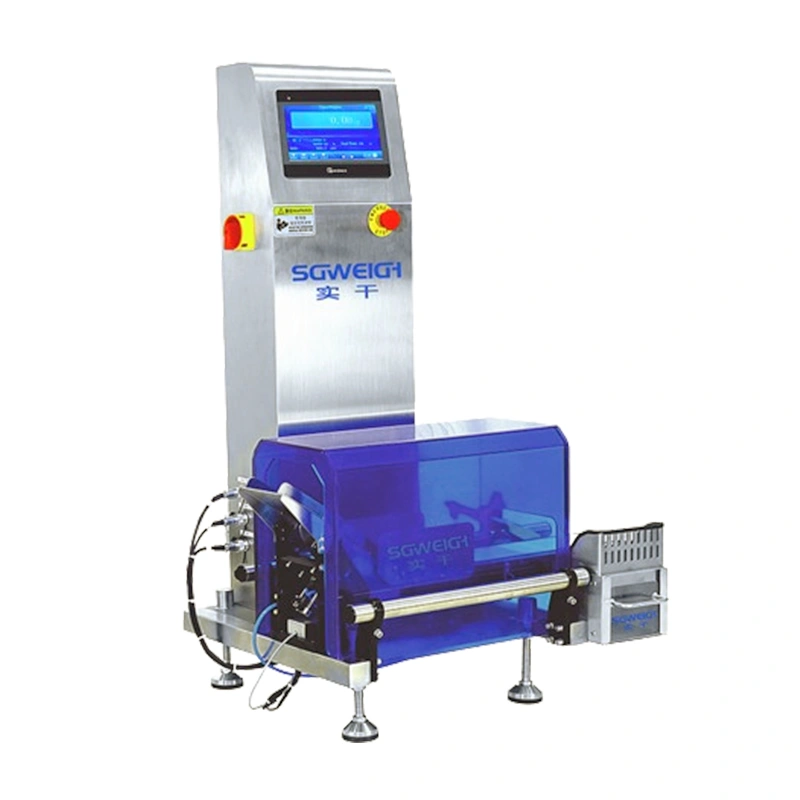

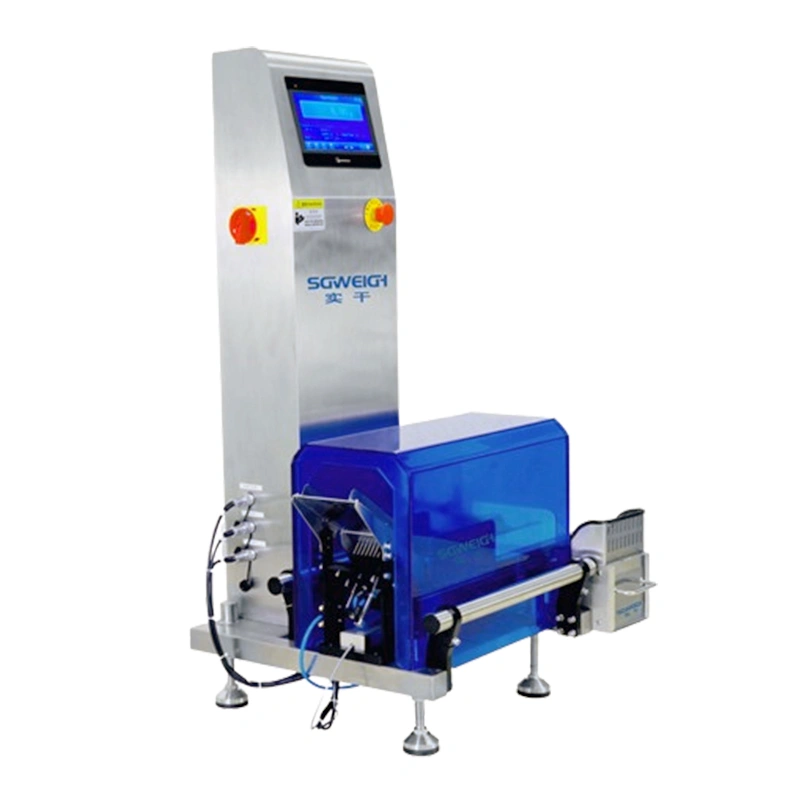

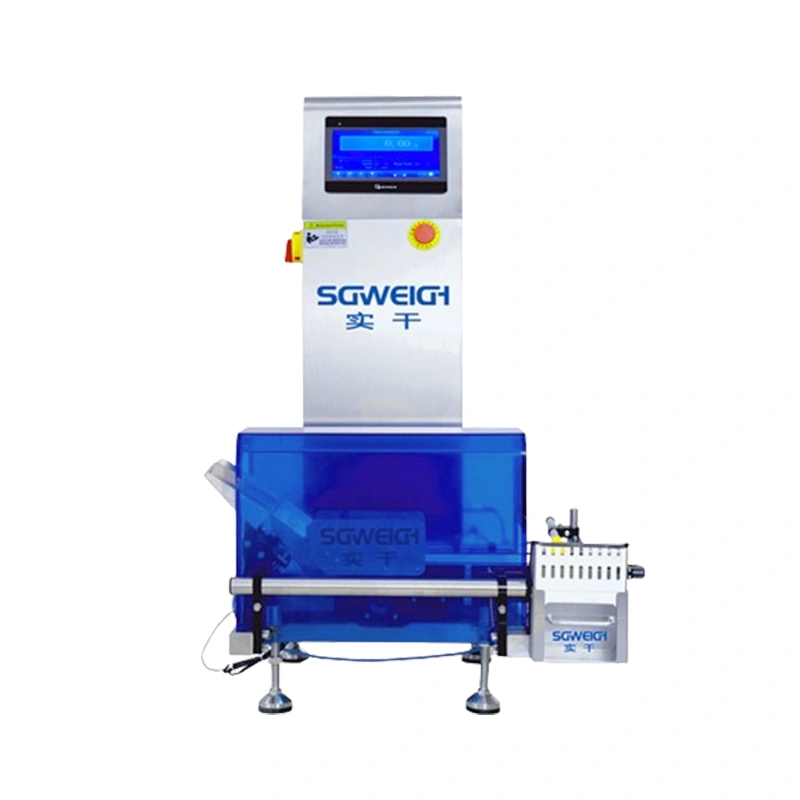

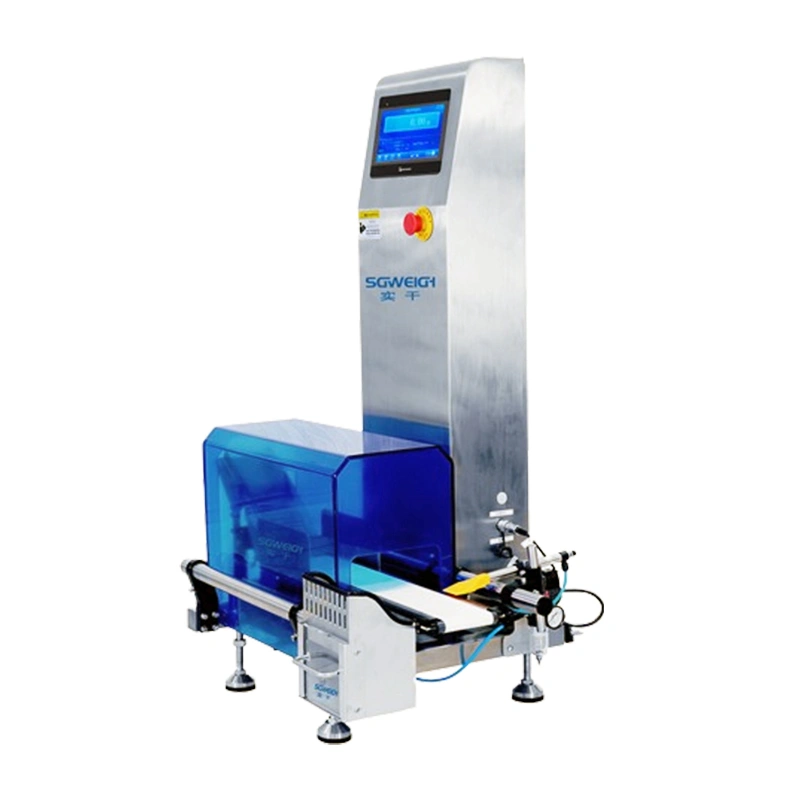

Dual channel bag checkweigher photos
Type SG-100
Weighing Range 2-300g
Limited of product L: 100 W: 100 H: 2-150mm
Accuracy ±0.05g Depends on product
Division Scale 0.01g
Belt Speed 0- 90 m/min
Max Speed 260 pcs/min
Belt Width 100mm
Machine Weight 70kg
Power Supply AC 220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
How to select products?
1. Determine the series according to the size, weight range and purpose of the product you need to weigh.
2. Determine the appropriate rejection system according to your product
3. Determine the height and width (if any) of your existing assembly line and the space required by our company.
4. Determine the optional functions you need; such as USB storage data, real-time transmission of weight data, alarm, etc.
In order to provide more accurate parameters, solutions and quotations, it is recommended that you contact the person in charge of our company to help you complete the selection.
1:LCD touch screen: The use of color man-machine interface, the whole intelligent, user-friendly design and multi-language support,Simple operation;
2:Emergency stop button for safety working condition;
3:Guide rod : can adjust the direction of the product go through the weighing scale table.
4:Hasp lock design : disassembling without tools, which is easier to clean
5.Reject system choose : automatic reject by air blast,push type or driving lever type and so on .
6.Special materials: Can be achieve reduce vibration ,prevent vibration.
7.Machine foot: Adjustable height.Respond to different users, user feels comfortable , protect the spine.and can be fixed and prevent movement.
Dual Channel Bag Checkweigher Pharmaceutical Dynamic Rejection Check Weigher
Dual channel bag checkweighers are widely used and can be used for all quantitatively packaged products. They are widely used in food, medicine, machinery, electronics, health products, agriculture, wine, chemical industry, light industry, building materials, energy, textiles, packaging, cosmetics, logistics and other fields.
Dual Channel Bag Checkweigher Pharmaceutical Dynamic Rejection Check Weigher
1> Attach safety labels, tighten screws, clean, lubricate, and prevent rust;
2> Disassemble into packages;
3> Wrap tightly with plastic film;
4> Secure in plywood box
5> Forklift into container
Suitable for long-distance land and sea transportation. In order to safely load and unload at the destination, we recommend that you choose full container transportation.
1.We will deliver the machine and provide the load list on time to ensure you can get the machine quickly
2.We often ask for feedback and provide assistance to customers whose machines have been used in their factories for a period of time.
3..We provide one year warranty
4.Well-trained and experienced staff will answer all your inquiries in English and Chinese
5.12 months warranty and lifetime technical support.
6.Your business relationship with us will be kept confidential to any third party.
7.Provide good after-sales service, if you have any questions, please contact us.
